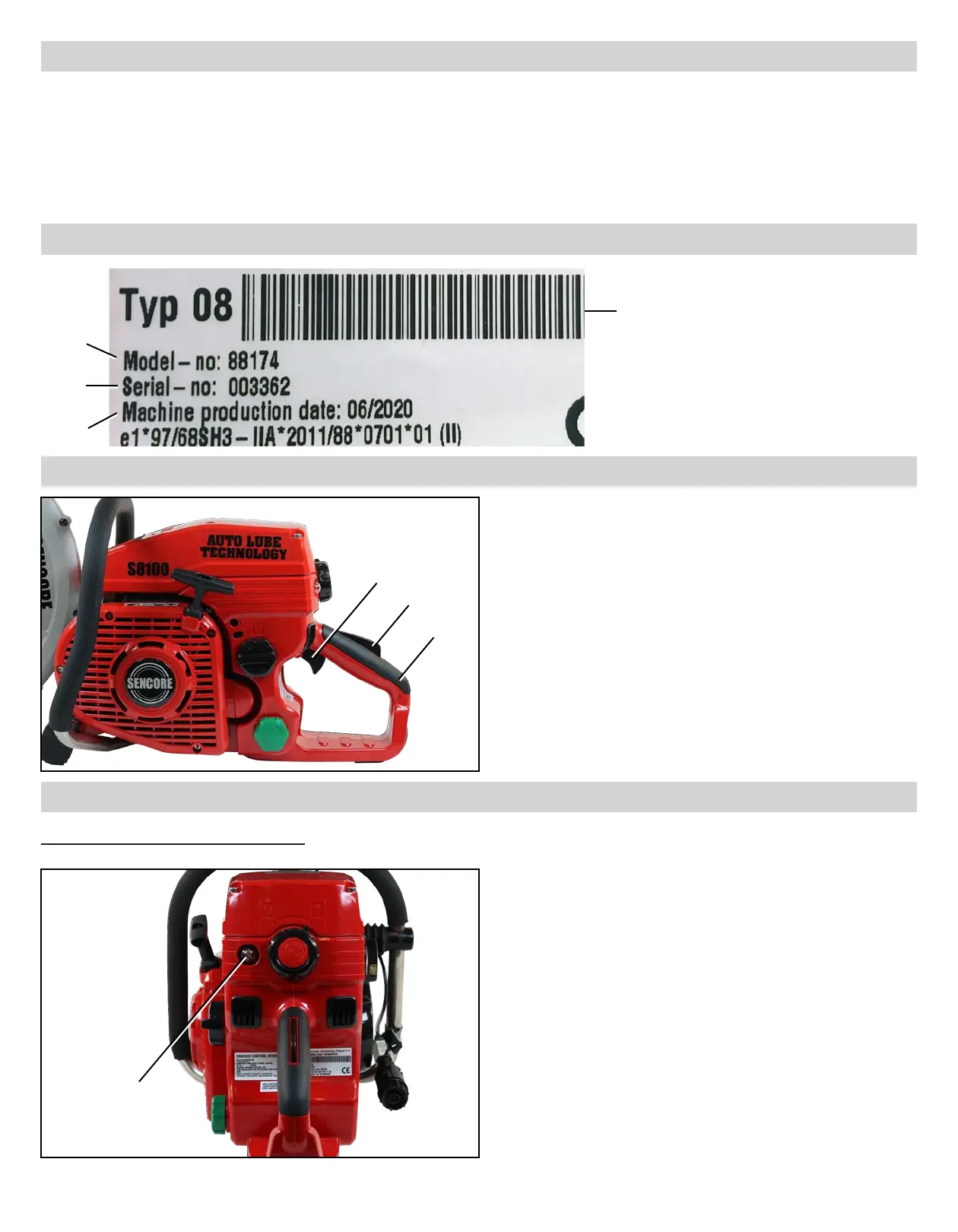

4.2 Scope Of Delivery
4.3 Type Plate
• Basic device
• Spindle adapter disk for cut off wheels with 1” Arbor
• Tools: Combination tool (spark plug wrench with screwdriver), blocking pin and additional small screwdriver
• These operating instructions
a: Type designation
b: Serial number
c: Bar code
d: Year of build
4.4 Throttle Control and Throttle Control Lock
Release of the throttle control (10)
• Grasp rear handle (6) with the right hand.
The throttle control lock (9) is operated with the palm.
The throttle control (10) is released.
4.5 Funtional Parts For Starting
In the delivery condition, after extended resting time and
with the tank completely empty, there is no fuel yet in the
carburetor after fueling up.
Starting process: Chap. 6.1, page 22
To facilitate the starting process, fuel can be pumped into
the carburetor. Push the primer (20) repeatedly until fuel
appears in the primer.
Excess fuelis automatically ushed back into the tank
from the primer.
Starter handle (16) and starter rope: Chap. 6.3, page 23
6
9
10
20
c
a
b
d
14 SENCORE S8100 CUT-OFF SAW MANUAL
