5 Preparing For Use
5.1 Installing The Cut-Off Wheel
Thecutoffwheelsusedmustcorrespondtothespecicationsfromchap.7.1onpage25!
The power tool spindle is designed for cut off wheels with an arbor of 20 mm.
Cut off wheels with 1” arbor must only be installed together with the spindle adapter disk. Installation of cut off
wheels with 1” arbor:  Chap. 5.2, page 17!
When using cut off wheels with an arbor of 20 mm, no additional spindle adapter disk is required.
• For cut off wheel installation, the power tool must be put securely on the ground. Securely hold the power tool at the
tophandlewiththelefthandandpushitrmlyontotheground. Chap. 5.4, page 18
• Insert blocking pin (a) entirely into the cut off wheel blocking opening (12) to block the spindle.
Unscrewcutoffwheelattachmentscrew(11).Removewheel(b)andoutermountingange(c).
• Put cut off wheel (1) on spindle.
Forcutoffwheelswithspeciedrotatingdirection(arrowonthecutoffwheel),observecorrectalignmentofthecutoff
wheel during assembly (for rotation direction of the cut off wheel, see above).
•Pushonoutermountingange(c)sothatthecurvedsidepointssouthwards,i.e.awayfromthecutoffwheel.
• Push on wheel (b) and turn in cut off wheel attachment screw (11).
•Insertblockingpin(a)entirelyintotheblockingopening(12)andrmlytighten(30Nm[22.1ft·lbf])thecutoffwheel
attachment screw (11).
Securelyholdthepowertoolatthetophandlewithonehandandpushitrmlyontotheground.
• Remove the blocking pin (a).

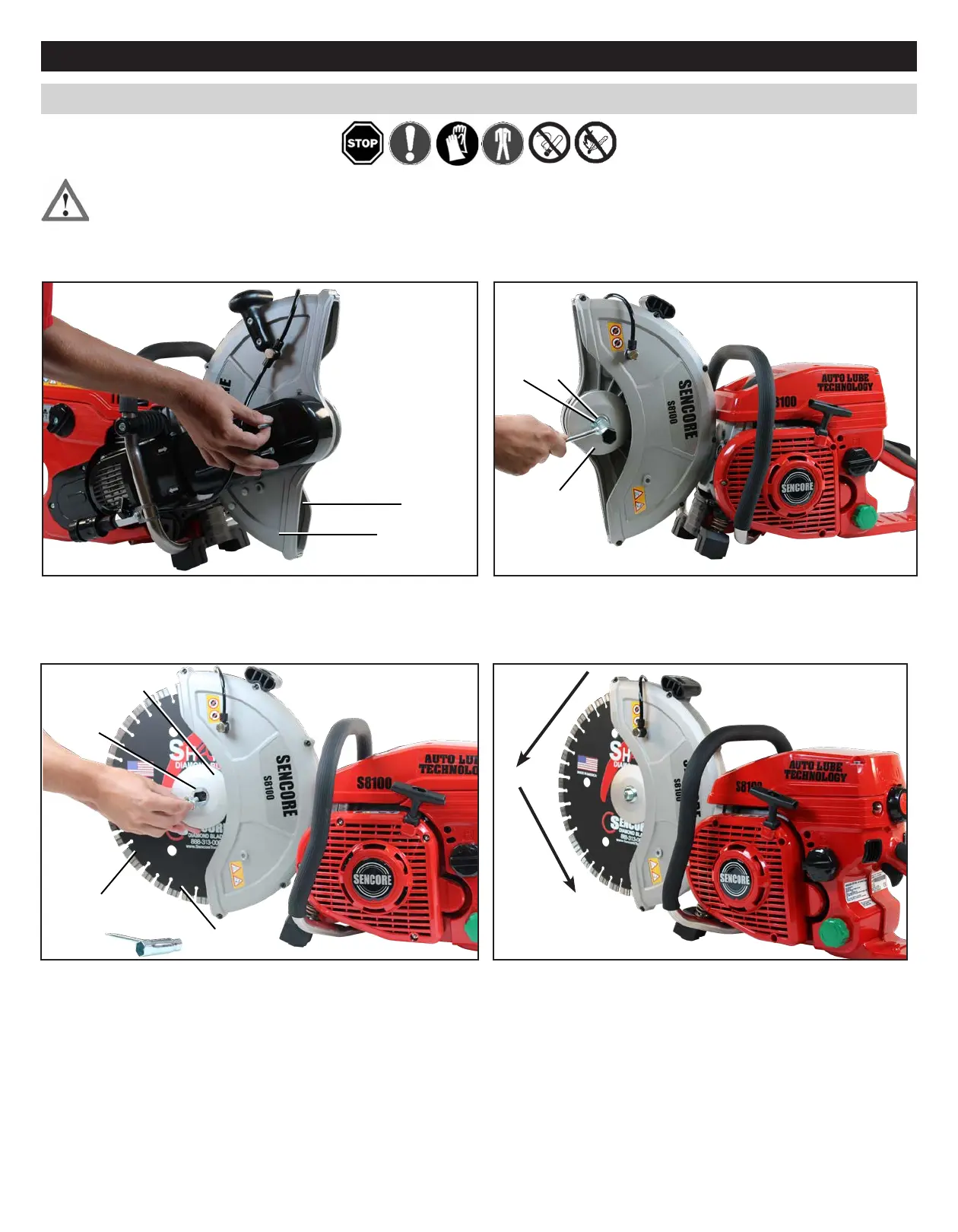

a
12
11
c
b
Blade rotational direction
c
b
11
1
16 SENCORE S8100 CUT-OFF SAW MANUAL
