Pos. No. Part No. Quantity Assembly Drive unit
1 S-33-00-114 1 Drive unit incl. (-> 1 - 30
2 S-20-11-861 1 Drive unit carrier
3 S-00-12-259 2 Hex. Screw
4 S-60-31-478 1 Shaft bladedrive
5 S-00-50-151 2 Ball bearing
6 S-00-33-302 1 Spacer ballbearing
7 S-00-55-106 1 Circlip 35
8 S-60-11-436 1 Belt pulley 12" / 14"
9 S-00-10-172 2 Screw
10 S-00-31-442 2 Sliding disc
11 S-80-74-755 2 Slide ring
12 S-81-00-117 1 Sa guard mg 14"
13 S-00-55-143 Circlip
14 S-60-11-440 1 Pressure ring
15 S-00-73-161 4 Spring blade-carrier
16 S-00-18-135 4 Screw blade carrier
17 S-00-31-396 4 Washer
18 S-20-16-459 2
Clampingange
19 S-60-74-804 1 Guard adjustment knob
20 S-00-18-337 2 F.h. screw
21 S-00-24-107 1 Nut
22 S-00-18-335 1 F.h. screw
23 S-00-68-450 2 Decal guard 14"
24 S-00-68-454 1 Decal guard right
25 S-00-68-453 1 Decal guard left
26 S-00-65-321-350 0,350 m Hose 6/4 mm black
27 S-00-65-321-200 0,200 m Hose 6/4 mm black
28 S-00-65-326 1 Screwing 1/4"x6/4
29 S-00-65-320 1 T-screwing 1/4"x6/4
30 S-00-65-322 1 T-screwing 1/4"x6/4
31 S-00-36-193-A 2 Lock

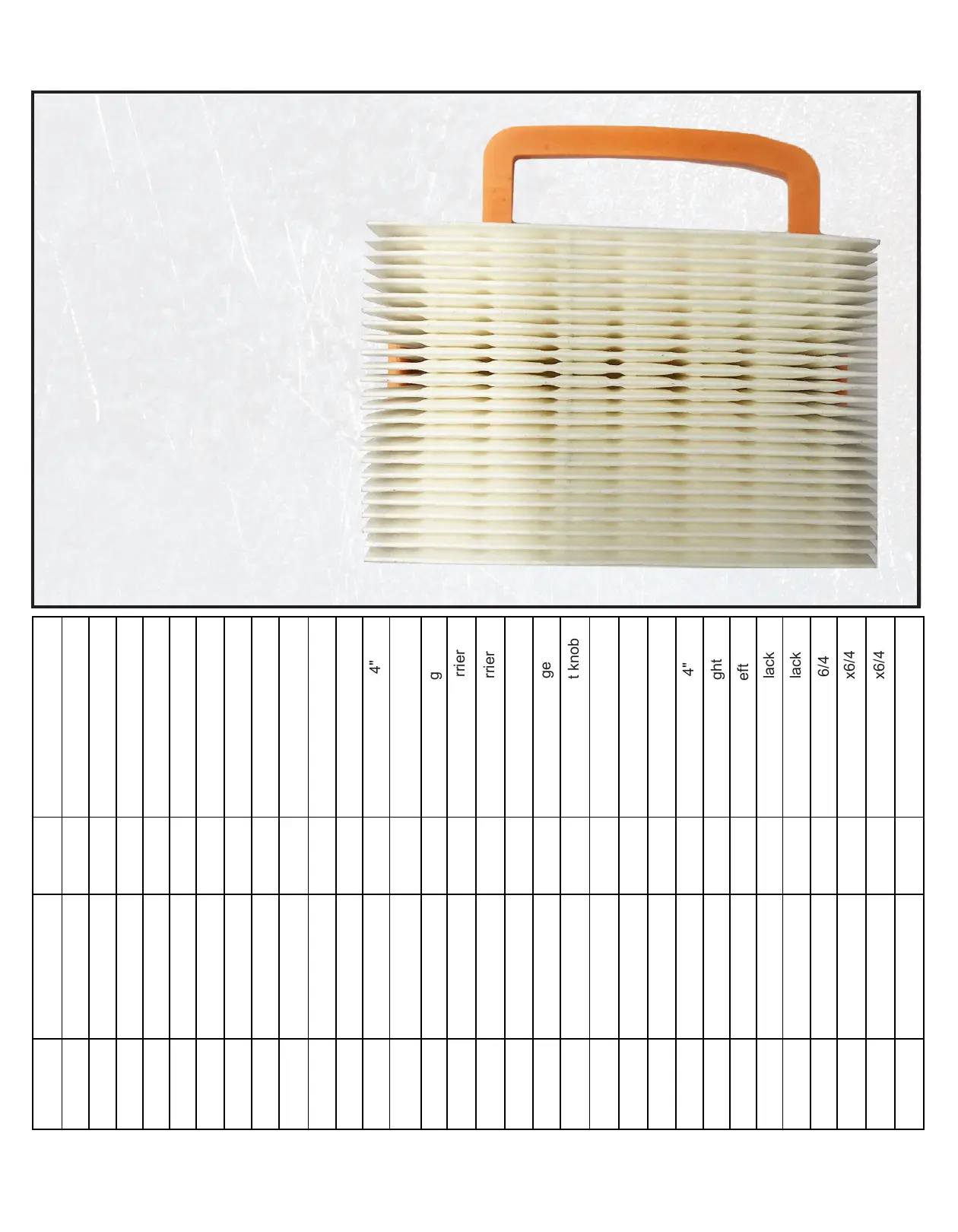

Ask your dealer FOR
Sencore BrandSencore Brand
Air FiltersAir Filters
availablE individually
or in packs of ten
SENCORE S8100 CUT-OFF SAW MANUAL 45
