Pos. No. Part No. Quantity Assembly Engine
1 S-21-00-676 1 "Engine incl. (-> 1 - 32"
2 S-21-00-677 1 Crankcase incl. (-> 2 - 5
3 S-00-42-196-25 2 Sleeve
4 S-60-11-430 1 Crankhousing ignition side
5 S-60-11-431 1 Crankhousing outlet side <-)
6 S-20-61-531 1 Gasket crankcase
7 S-00-50-102-1 1 Ball bearing
8 S-00-54-159 1 Oil seal
9 S-00-50-202 1 Ball bearing
10 S-00-54-143 1 Oil seal
11 S-22-00-684 1 Crankshaft
12 S-00-18-339 5 F.h. screw
13 S-00-34-201 5 Circlip
14 S-00-52-236 1 Needle cage
15 S-22-00-211 1 "Cylinder + piston, repair kit
incl. (-> 15 - 21"
16 S-20-61-532 1 Cylinder foot gasket
17 S-22-00-212 1 "Piston incl. (-> 17, 20"
18 S-20-31-233-25 1 Piston pin
19 S-20-48-258 2 Piston ring
20 S-00-55-297 2 Safety ring <-)
21 S-00-67-120-25 1 Impulse connection <-)
22 S-00 34 201 4 Circlip
23 S-00-10-604 4 Screw
24 S-28-00-881 1 Decompression valve
25 S-23-00-730 1 Spark plug
26 S-25-00-758
1 "Exhaust incl. (-> 26 - 30"
27 S-20-48-320 1 Spark arrestor
28 S-25-00-759 1
Spark arrestor screen
29 S-20-61-536 1 Exhaust gasket
30 S-00-18-341 2 Screw <-)
31 S-00-18-336 1 Screw
32 S-00-75-101 1 Woodruff key <-)

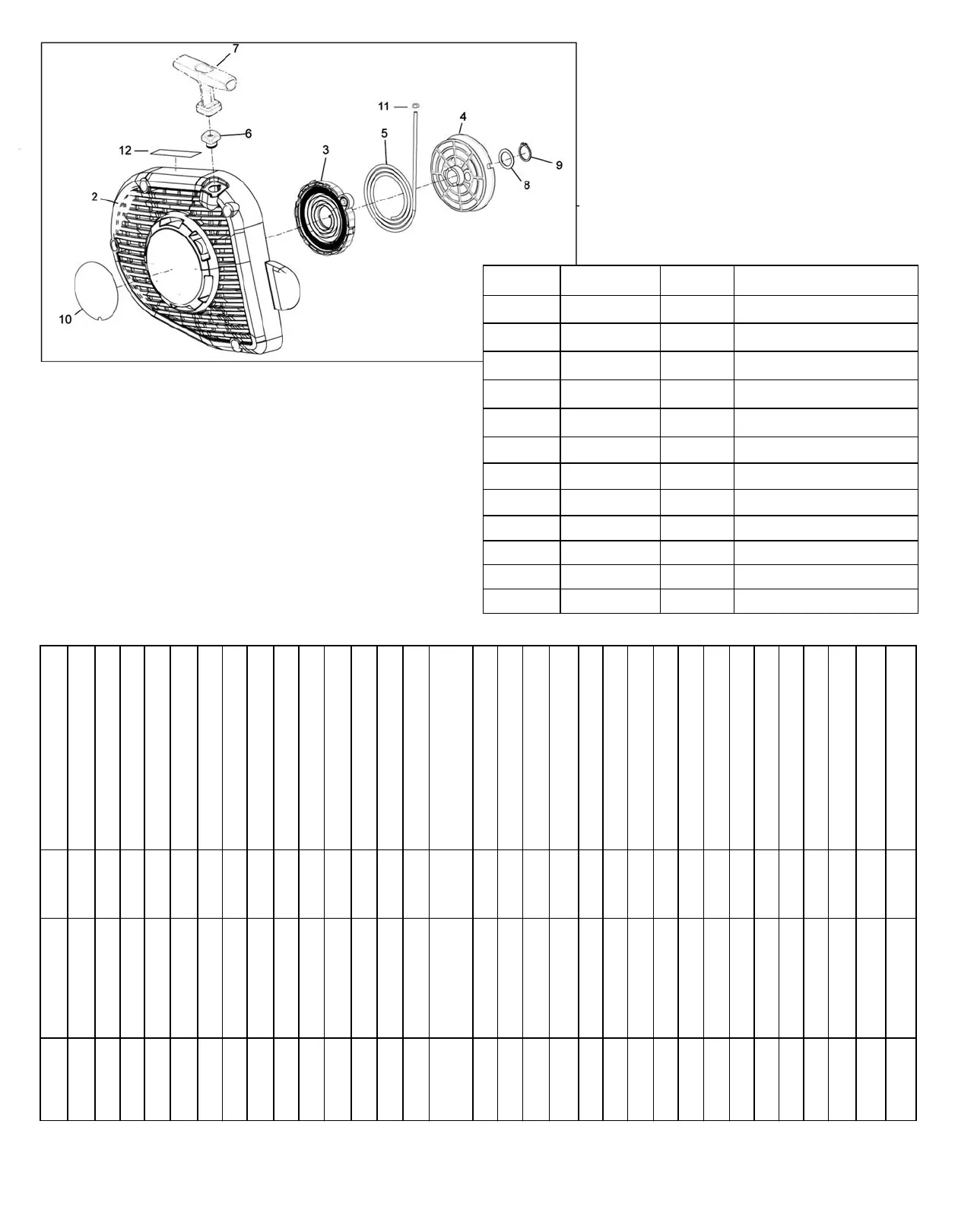

Pos. No. Part No. Quantity Assembly Starter
1 S-26-00-257 1 "Starter incl. (-> 1 - 12"
2 S-26-00-234 1 Starter housing
3 S-26-00-353 1 Rewind spring
4 S-60-74-923 1 Rope pulley
5 S-00-63-181 1 Starter rope 4x940
6 S-20-74-640 1 Rope guide
7 S-20-74-361 1 Starter grip
8 S-00-31-473 1 Washer 15x21x0,5
9 S-00-55-136 1 Circlip
10 S-00-68-459 1 Decal starter
11 S-00-72-148 1 Disc spring
12 S-00-68-336 1 Sticker <-)
Sencore S8100 |
Cut-Off Assembly
Starter Parts
SENCORE S8100 CUT-OFF SAW MANUAL 43
