Pos.-No. Part No. Quantity Assembly Support, Suction elbow,
Console, Cover, Connection
1 S-63-00-273 1 "Support incl. (-> 1 - 4"
2 S-00-73-269 1 Spring avs
3 S-00-15-111 1 Insert
4 S-00-18-345 1 F.h. screw <-)
5 S-63-00-275 1 "Support incl. (-> 5 - 11"
6 S-00-18-347 1 Spring avs
7 S-00-18-347 1 F.h. screw
8 S-00-30-125 1 Washer
9 S-00-20-109 1 Hex. Nut
10 S-60-74-831 1 Clamp
11 S-60-63-287 1 Bellow rubber <-)
12 S-63-00-274 3 Spring support incl. (-> 12 - 15
13 S-00-36-132 1 Spring seat
14 S-00-73-270 1 Spring avs
15 S-00-18-370 1 Screw <-)
16 S-23-00-871 1 Expansion chamber incl. (-> 16 - 20
17 S-60-74-543 1 Chamber
18 S-00-62-352 1 Foam rubber ring 190
19 S-80-74-749 1 Compensator chamber
20 S-00-18-354 1 Lens head screw <-)
21 S-61-00-486-A 1 "Console incl. (-> 21 - 37"
22 S-60-73-707 1 Console
23 S-60-74-455 1 Cleaning knob
24 S-60-74-454 1 Ratchet
25 S-00-28-137 1 Hex. Nut
26 S-00-18-335 1
F.h. screw
27 S-27-00-448 1 Primer
28 S-00-84-514 1 Microswitch with cable ilube
29 S-68-00-403 2 Spring
30 S-60-74-456 1 Stop knob
31 S-60-74-723 1
Switch

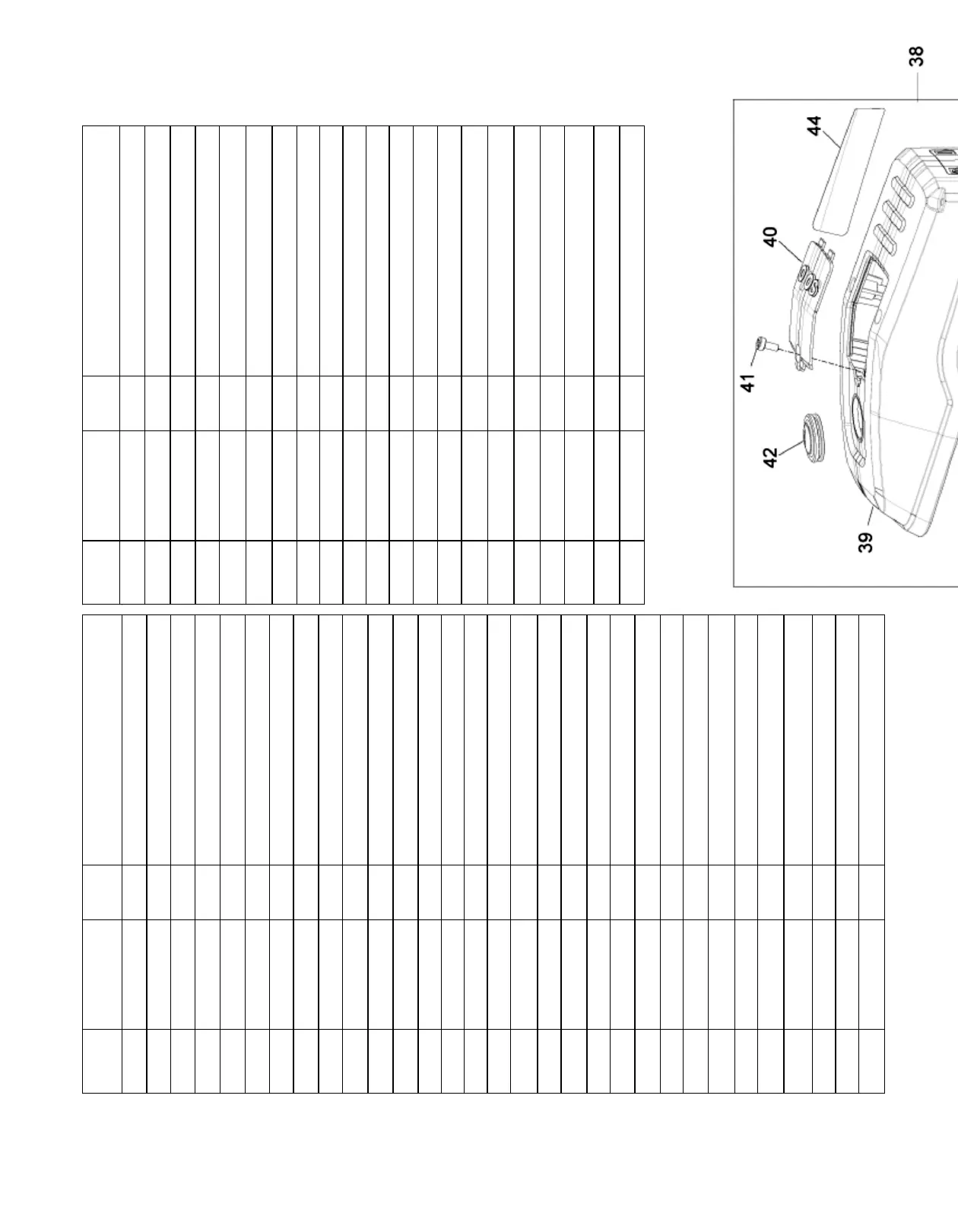

Sencore S8100 | Assembly Support, Suction Elbow, Console, Cover & Connection Parts
Pos.-No. Part No. Quantity Assembly Support, Suction elbow,
Console, Cover, Connection
32 S-00-73-163 1 Spring button stop
33 S-60-74-813 1 Support
34 S-60-74-814 1 Switch
35 S-00-28-156 4 Speed nut m5
36 S-00-13-285 2 Screw
37 S-00-68-457 1
Decalltercleaning<-)
38 S-61-00-240 1 "Cover incl. (-> 38 - 45"
39 S-60-73-698 1 Cover
40 S-60-74-717 1 Spark plug cover
41 S-00-18-335 1 F.h. screw
42 S-60-63-307 1 Cover decovalve
43 S-20-42-801 1 Protection foil
44 S-00-68-448 1 Decal top cover
45 S-00-68-444 1 Sticker <-)
46 S-00-65-324 1 Connection incl. (-> 46 - 52
47 S-00-65-323 1 Ball cock 1/4"
48 S-80-74-769 1 Connection part
49 S-00-62-115 1 O-ring
50 S-40-74-922-25 1 Filter cartridge
51 S-80-74-768 1 Connection part
52 S-00-62-187 1 O-ring <-)
