EM-XSW 1 rack receiver
31

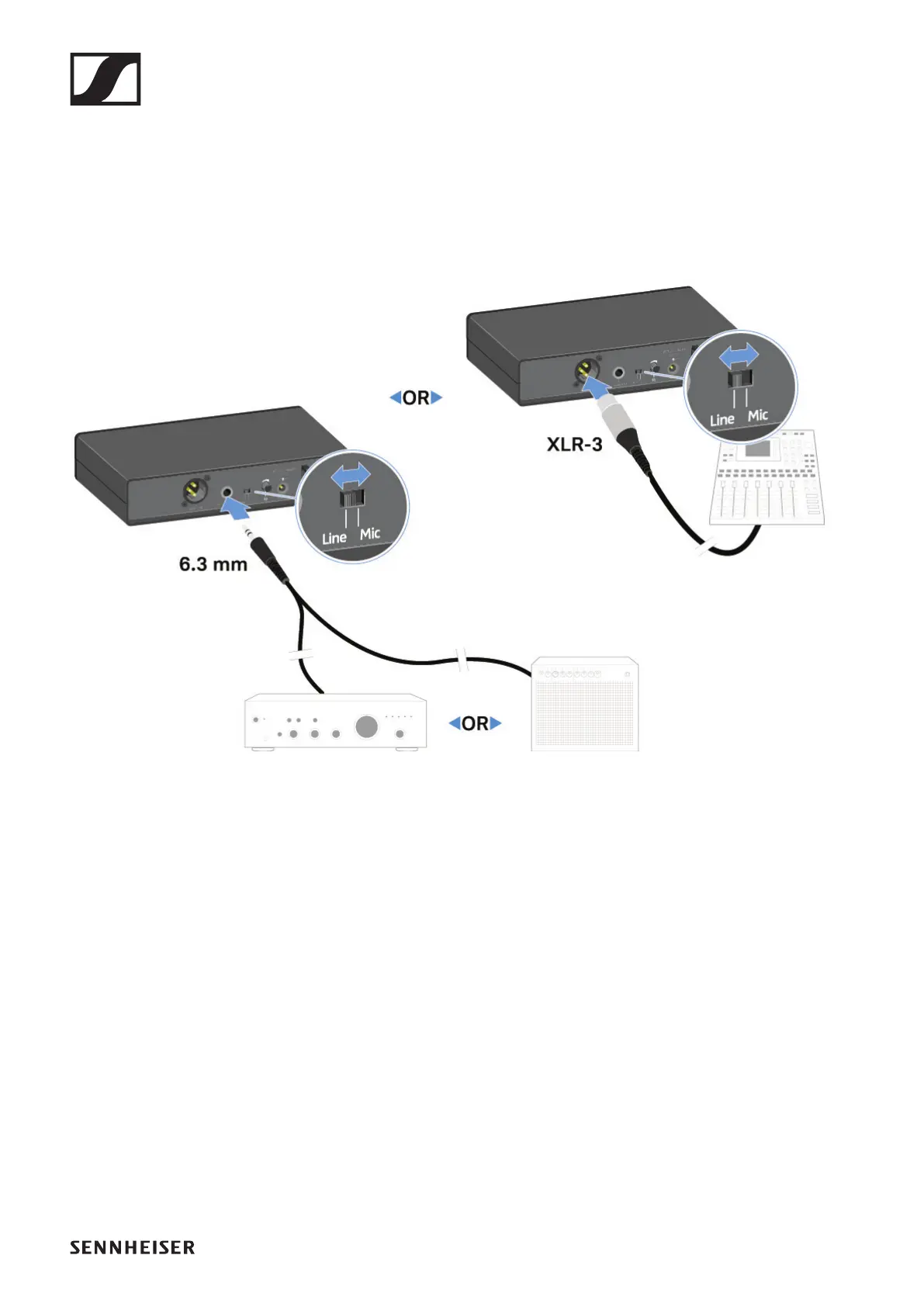

Outputting audio signals
The EM-XSW 1 has a balanced XLR-3M output socket and an
unbalanced 6.3 mm jack output socket.
▷ Always use only one of the two output sockets.
To connect an XLR cable:
▷ Plug the XLR cable into the Balanced socket on the EM-
XSW 1.
To connect a jack cable:
▷ Plug the jack cable into the Unbalanced socket on the EM-
XSW 1.
▷ Set the Line/Mic switch to the desired position.
• Line: when using instruments or other line sources with
the SK-XSW bodypack transmitter
• Mic: when using the SKM 825/835-XSW handheld trans-
mitter or a microphone with the SK-XSW bodypack trans-
mitter
