Handheld transmitters SKM 825-XSW | SKM 835-XSW | SKM 865-XSW

Muting the handheld transmitter

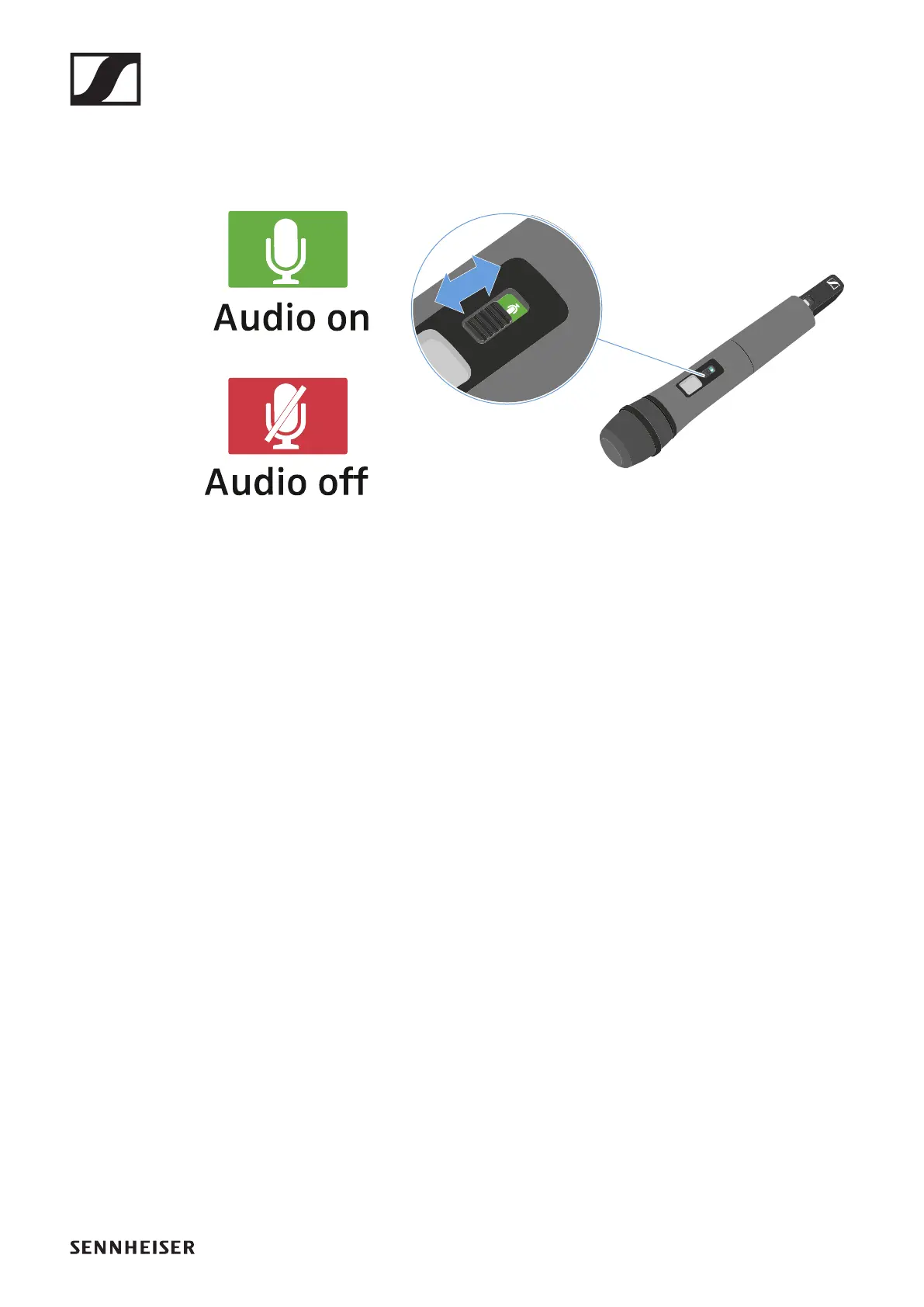

You can mute the audio signal using the mute switch.

►

▷ Slide the mute switch to the desired position to mute or ac-

tivate the audio signal.
