EM-XSW 2 rack receiver

Mounting two receivers side by side in a rack

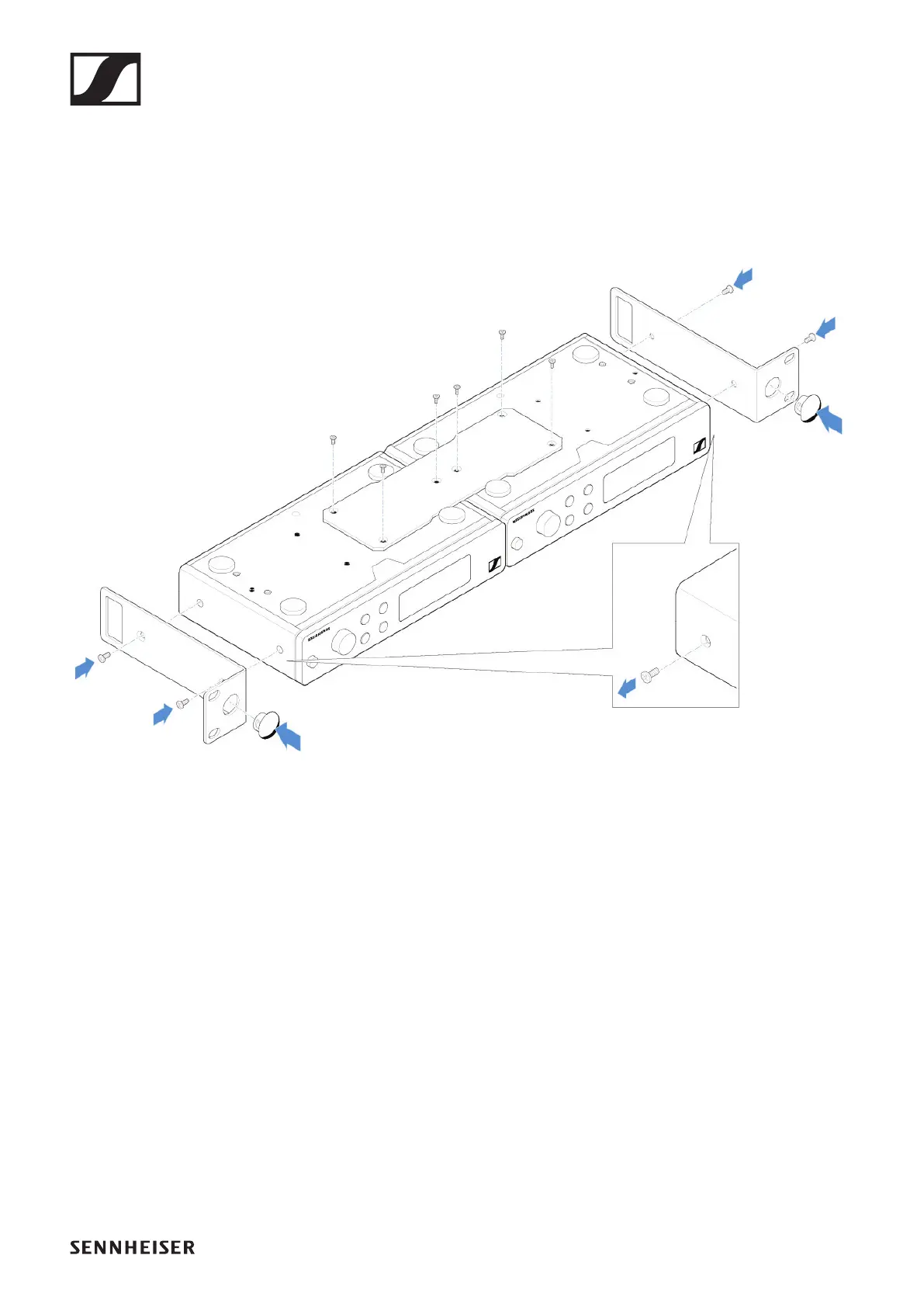

▷ Place both receivers upside down and side by side on an

even surface.

▷ Tighten the jointing plate as shown in the figure.

▷ Attach the mounting brackets as shown in the figure.

►
