SK-XSW bodypack transmitter
84
Connecting a microphone to the bodypack
transmitter

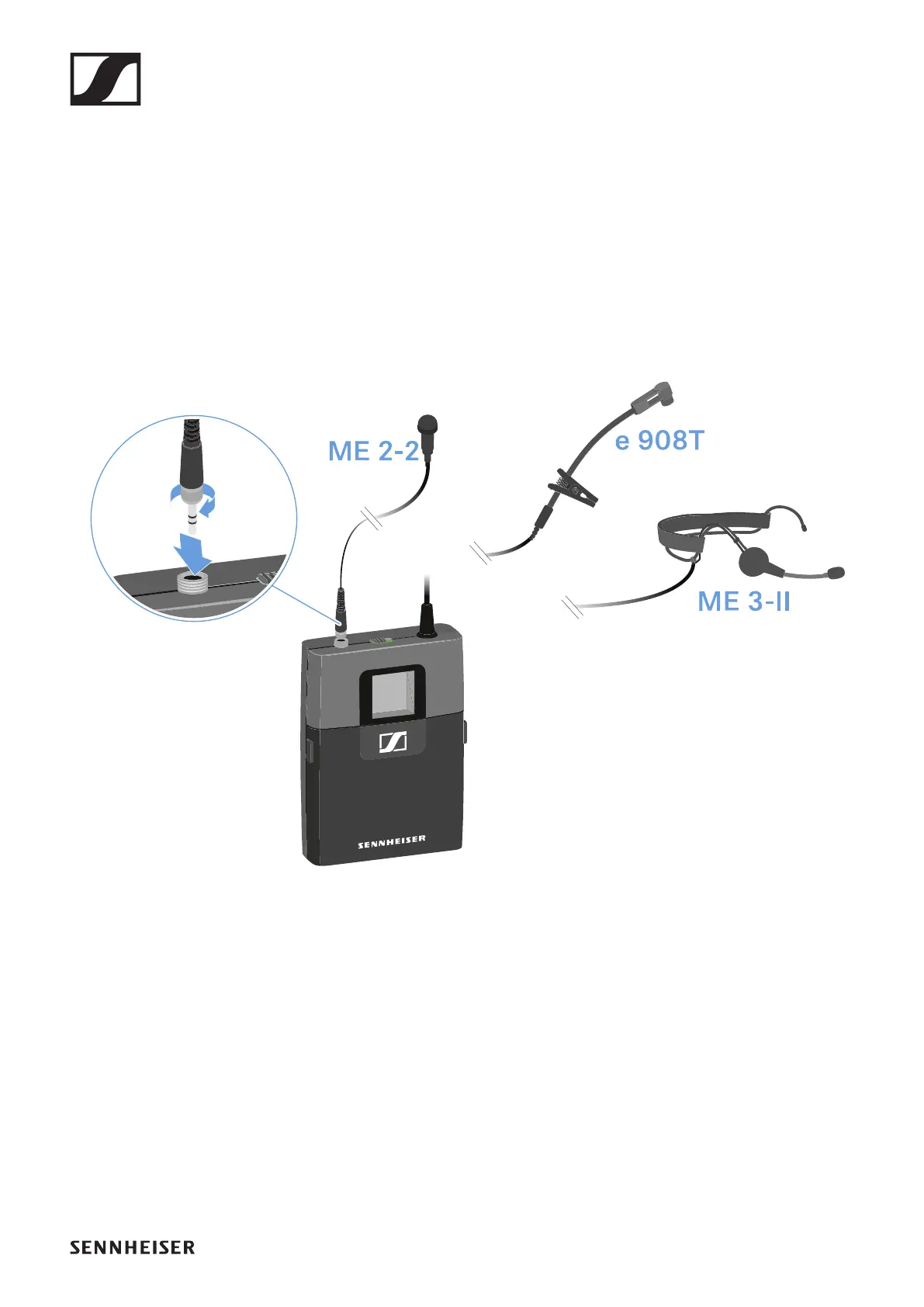

To connect a microphone to the bodypack transmitter:
▷ Insert the cable’s 3.5 mm jack plug into the socket on the
bodypack transmitter as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread
of the bodypack transmitter.
Connecting an instrument or line source to
the bodypack transmitter
You can connect instruments or audio sources with a line level
to the bodypack transmitter.
To do so, you require the Sennheiser CI 1-N cable (6.3 mm jack
plug to lockable 3.5 mm jack plug).
To connect an instrument or line source to bodypack transmit-
ter:
