Section 4 RF/ID Tag Reader Io
SENSOR
56
SMT-200 Operations and Technical Manual 2.00/R1

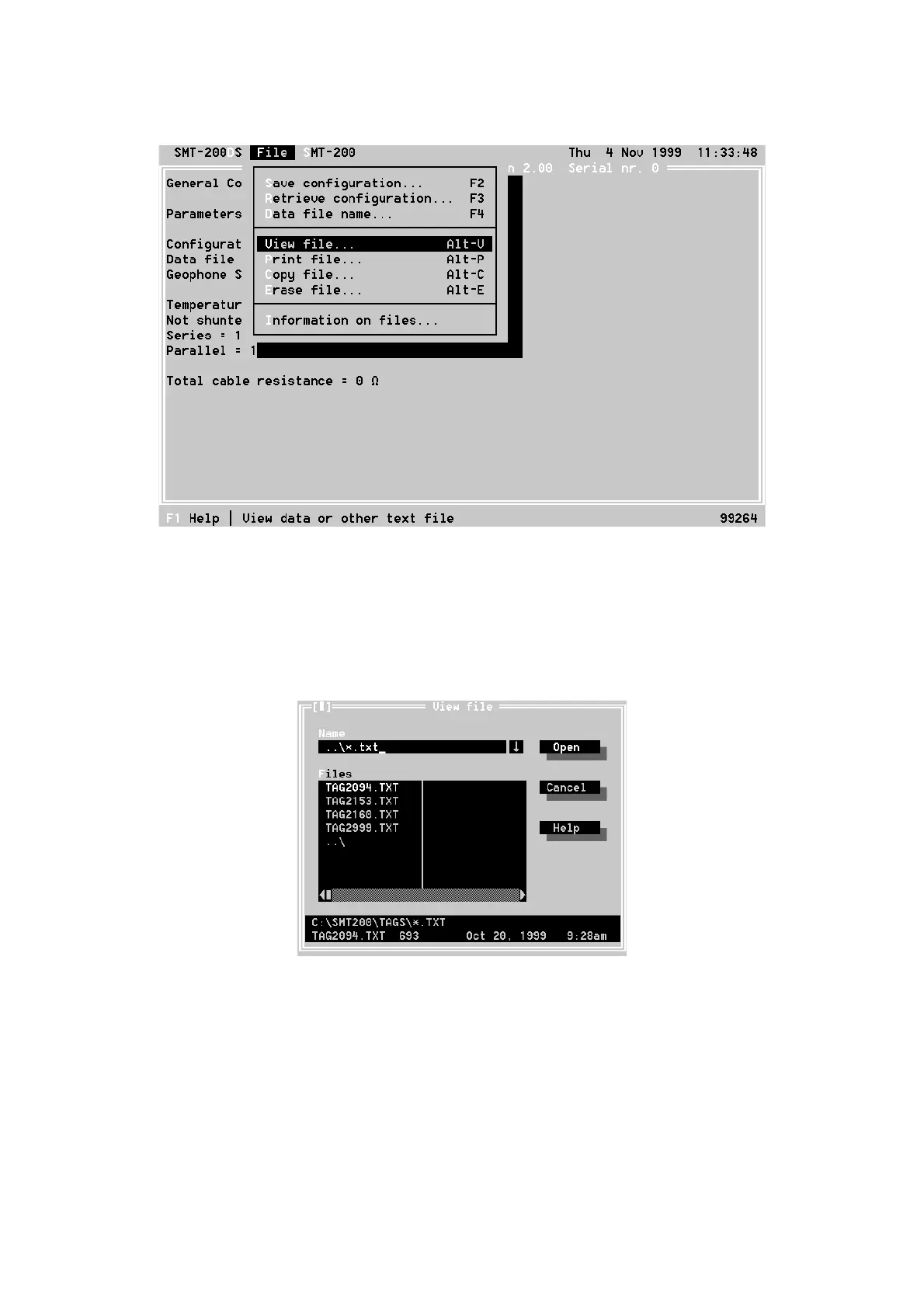

a new box is displayed where a file can be selected to view. Tag files are located in the subdirectory
\SMT200\TAGS.
Type in the input line Name the text:
..\Tags\*.txt
Click on the Open button or press Enter. This will select the correct subdirectory and the files with the
right extension are displayed.
Select the required file for viewing by clicking on it with the mouse. Click on the Open button or press
Enter. The tag list will be displayed.
1000001779850 872
1000001779999 583
1000001802291 103
1000001802292 804
The left hand column contains the tag ID and the right hand string numbers entered by the user.
