Sensorex TX3000 - 6 Operation; Display Icons; Measurement Mode

Set Up
Mode
Measurement
Mode
Relay 1
Activated
Relay 2
Activated
Clean Device
Activated
Output
Current
Over Range
Controller
Function Lock
Calibration
Mode
Temperature Automatic
Temperature
Compensation
Measurement
Units
PRODUCT INSTRUCTION MANUAL
Page 9 of 29
Reset Indicator
(factory/cal)
Part 5 Conguration (cont.)
FIG 5-2
Form: INSTRTX3000-Rev A

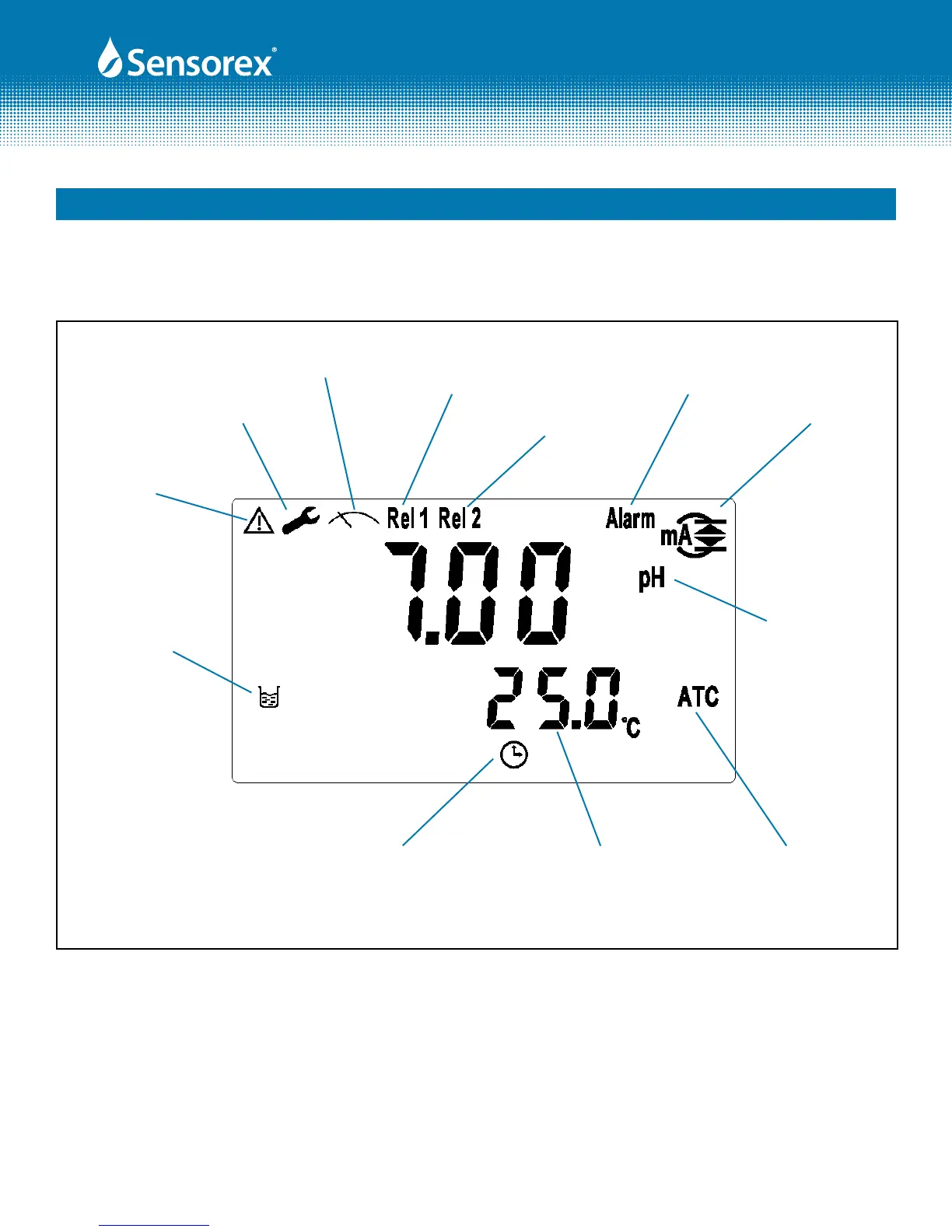

5-4 Display Icons:
