Sensorex TX3000 - Hi Alarm Relay

PRODUCT INSTRUCTION MANUAL
Page 15 of 29
Part 7 Settings (cont.)
7.6 Hi Alarm -
Set the TH (THRESHOLD) and DB (DEADBAND) of Hi (REL1). The range for TH is -2.00~16.00pH/-
1999~1999mv; while the range for DB is 0.00~2.00pH /0~200mv.
Enter
Enter
Mode
OR
To choose ON or OFF
Enter
Press "ENTER" to conrm choice
Mode
OR
To choose ON or OFF
Enter
Press "ENTER" to conrm choice
Mode
OR
To choose ON or OFF
Enter
Press "ENTER" to conrm choice
Choose “ON”, “HI” will
light up
GO TO "LO POINT
ALARM SETUP,
SECTION 7.7
Press "MODE" or
"RIGHT ARROW" to
test REL1 light
Mode
OR
Form: INSTRTX3000-Rev A

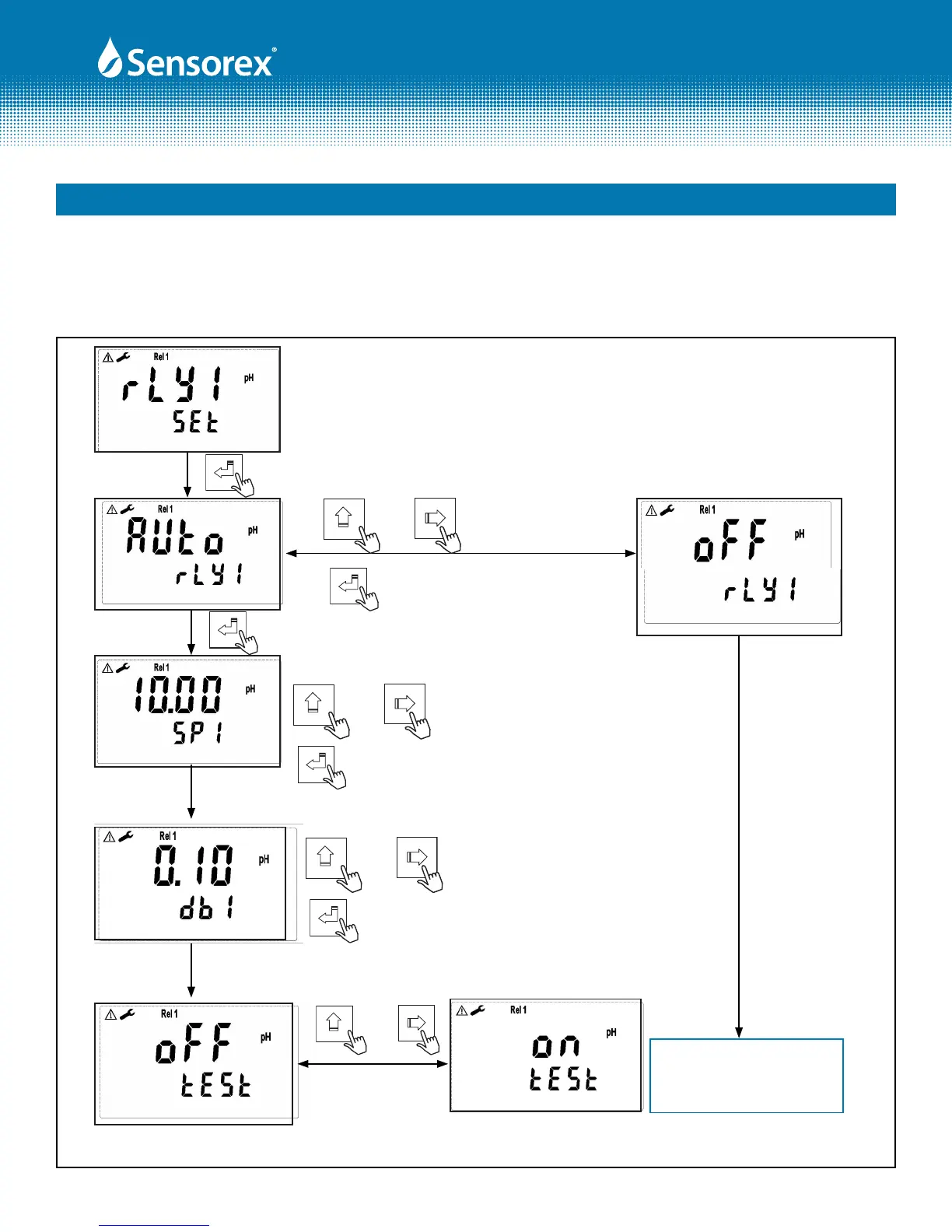

FIG 7-5
OR PRESS
"SET-UP" KEY
TO RETURN
TO
MEASURE-
MENT MODE
