Sensorex TX3000 - Lo Point Alarm Relay

PRODUCT INSTRUCTION MANUAL
Page 16 of 29
Part 7 Settings (cont.)
7.7 LO Alarm -
Set the TH (THRESHOLD) and DB (DEADBAND) of Lo (REL2). The range for TH is -2.00~16.00pH/-
1999~1999mv; while the range for DB is 0.00~2.00pH/ 0~200mv.
Enter
Enter
Mode
OR
To activate RELAY 2 or not
Enter
Press "ENTER" to conrm choice
GO TO "WASH"
ALARM SETUP,
SECTION 7.8
Mode
OR
To set desired alarm point
Enter
Press "ENTER" to conrm choice
Mode
OR
To set hysteresis value
Enter
Press "ENTER" to conrm choice
Press "MODE" or
"RIGHT ARROW" to
test REL2 light
Mode
OR
Choose “ON”, “LO” will
light up
Form: INSTRTX3000-Rev A

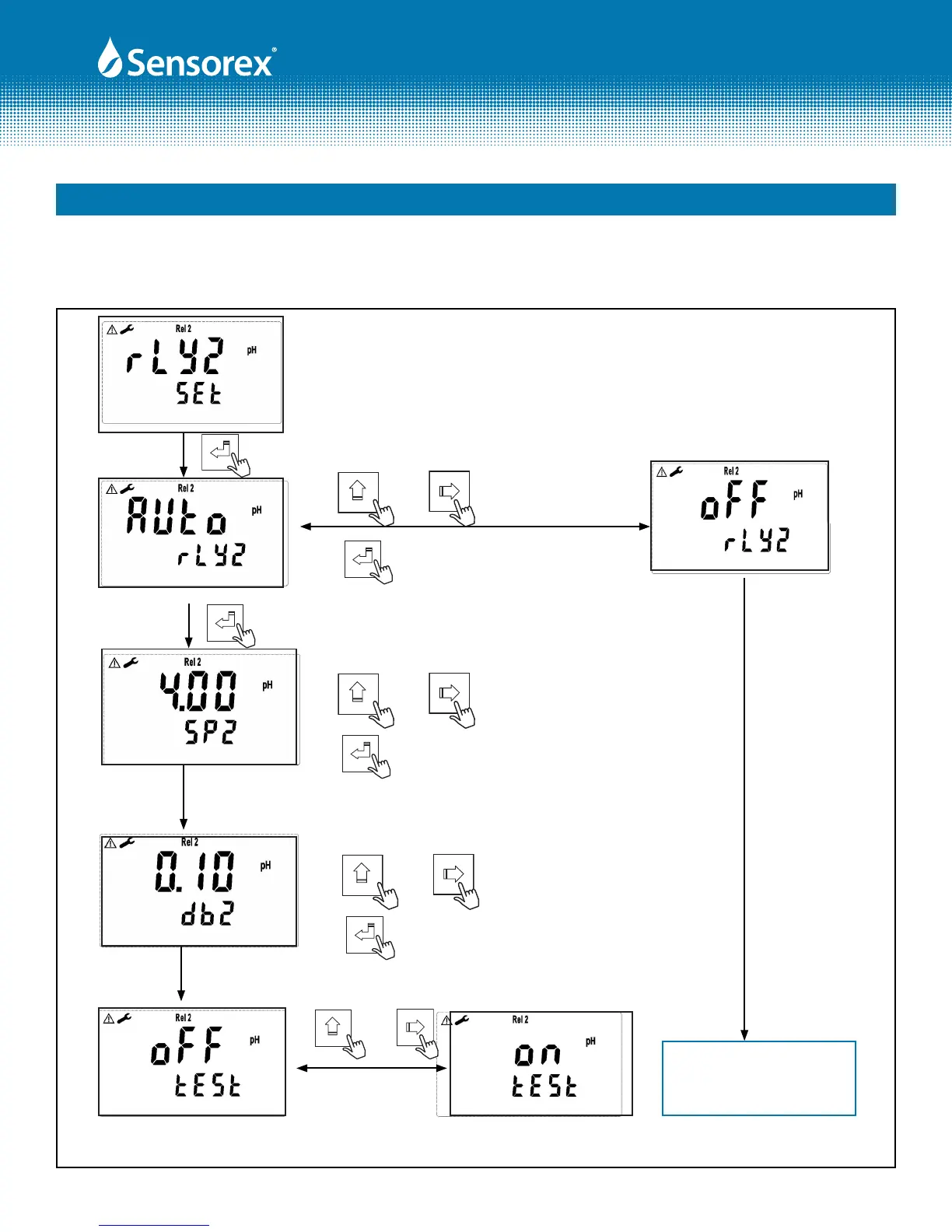

FIG 7-6
OR PRESS "SET-
UP" KEY
TO RETURN TO
MEASUREMENT
MODE
