Part 7 Settings (cont.)
7.9 Analog output 1 (pH/ORP):
The user can adjust the relative relationship between the pH /ORP measurement range and the output cur-
rent per their requirements.
Enter
Mode
OR
To select current
output mode 0-20
or 4-20 mA
Enter
Press "ENTER" to conrm
Enter
Enter
Mode
OR
To set the relative
lower limit of
measurement
value of 0.0mA
Mode
OR
To set the
relative
lower
limit of
measure-
ment value
of 4.0mA
Mode
OR
To set the relative upper limit of
measurement value of 20mA
Enter
Press "ENTER" to
conrm choice
Mode
OR
To simulate current output
Enter
GO TO “Analog output 2 (TEMP)SETUP
SECTION 7.10
Form: INSTRTX3000-Rev A

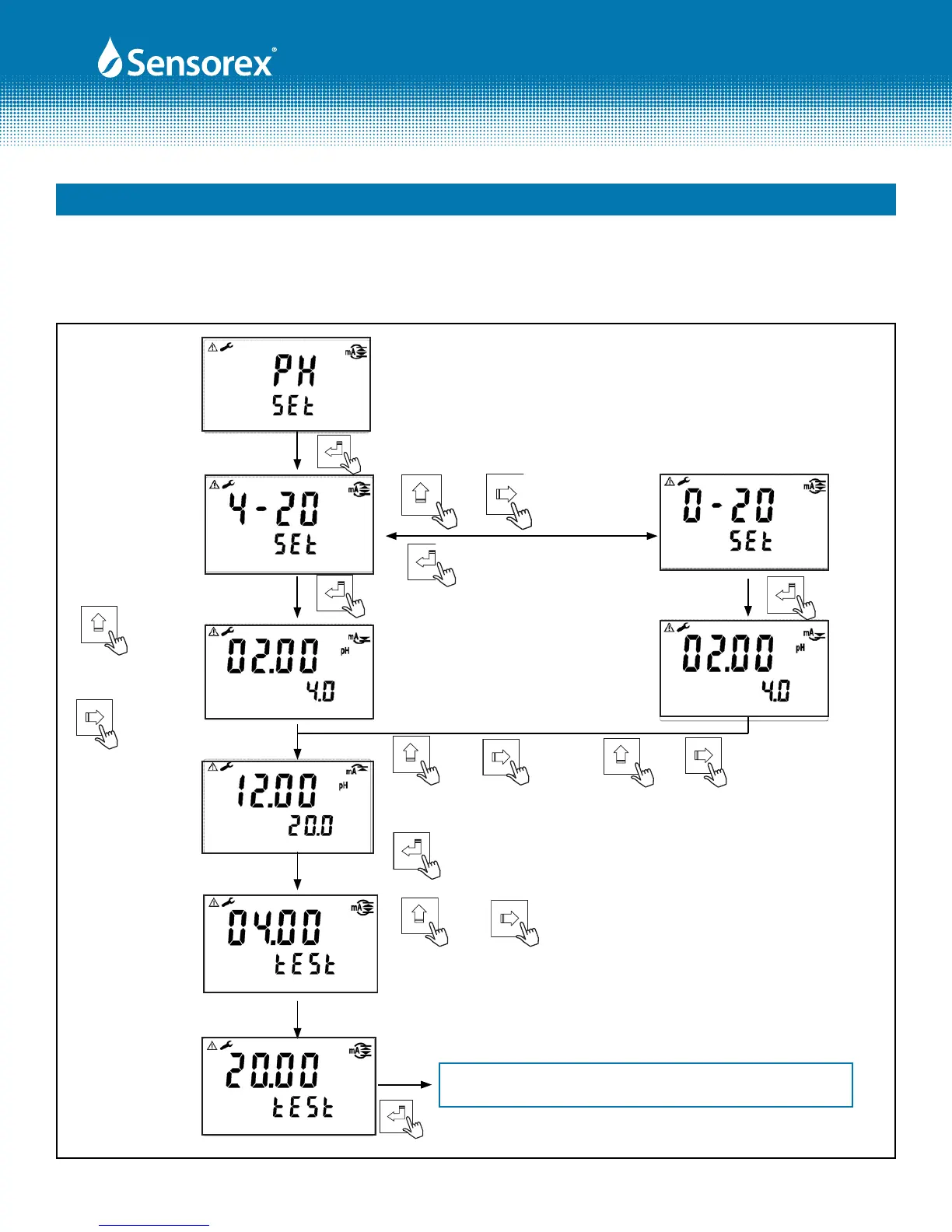

FIG 7-8
OR PRESS "SET-UP" KEY
TO RETURN TO MEASUREMENT MODE
