METIS M308 / M309 / M313 / M316 / M318 / M323 / H309 / H316 / H318 (12-pin)
Configuring the Pyrometer
24

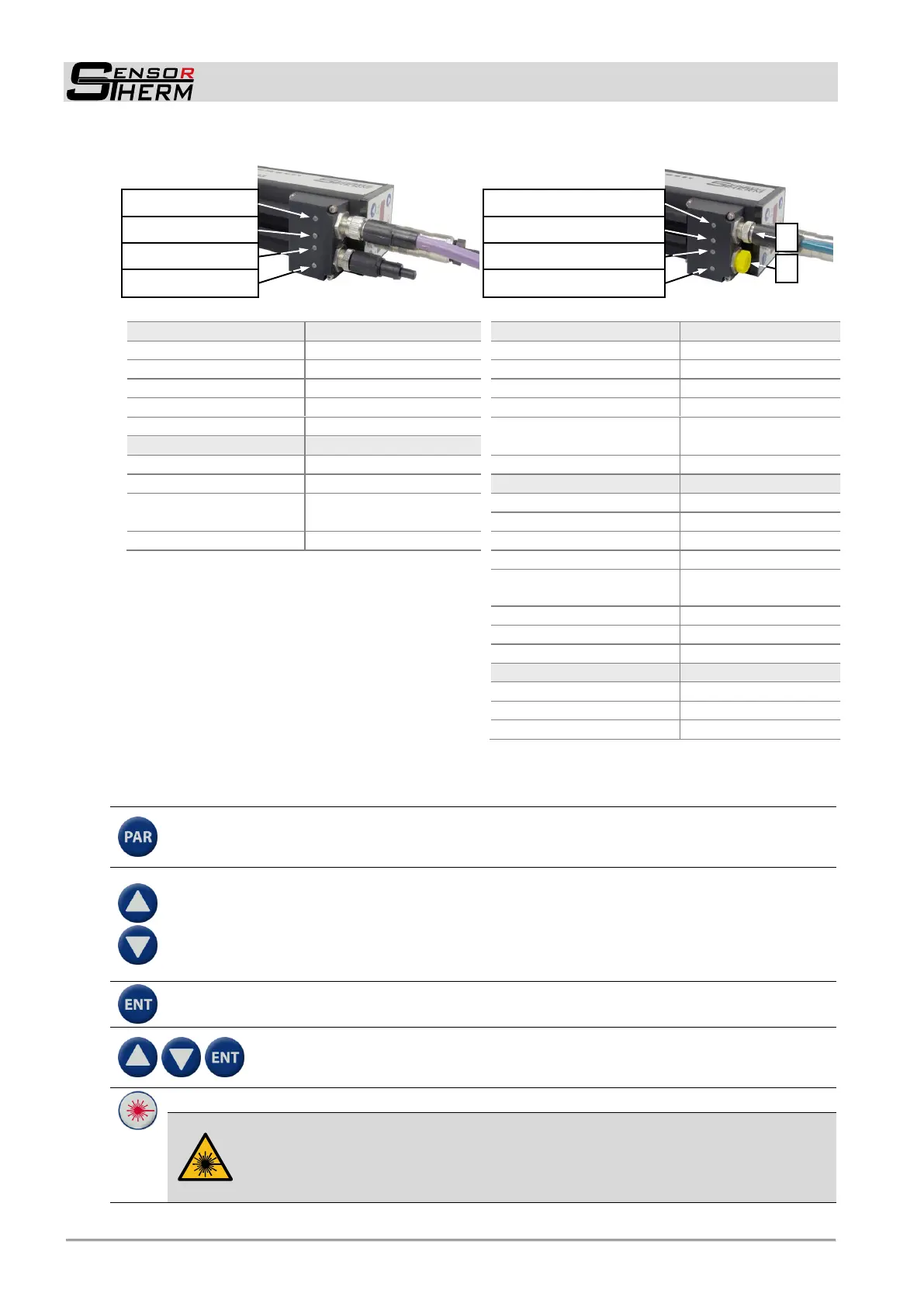

Status LEDs for devices with Profibus / Profinet
Initialized, diagnostic
event(s) present
Red (combined with a
red network status LED)
Red (combined with a
red module status LED)
6.2 Key Functions
Parameter: Press the button repeated to get access to all settings sequentially (see 6.3, Pa-
rameters / Settings). If a subcategory is found, this is indicated with a > (e.g. MEASPARA.>).
Pressing ENTer the subcategories are called.
Arrow keys: Settings can be done with the arrow keys. Keep the button pressed to change
the values faster, reasonable for example when changing a temperature value. A changed
value is shown by a blinking display and will only be saved when pressing “Enter”, pressing
PAR calls the next parameter point.
If 60 seconds of inactivity have been made, the display jumps back to the measurement dis-
play without taking over any modified values.
Enter: opens a parameter category or takes over a modified parameter value.
Key lock: Press the arrow keys and the ENTer key simultaneously for approx.
3 s to activate or deactivate the key lock. With locked keys, no parameters can
be called and changed.
Laser targeting light (depending on configuration): Turns on and off the laser targeting light.
CAUTION, Laser Radiation, Laser Class 2:
Never look into the direct or reflected laser beam.
Do not point the laser to anyone.
If laser radiation hits the eye, the eyes must be intentionally closed and the head
immediately moved out of the beam.
Link / activity LED for A
Link / activity LED for B
