METIS M308 / M309 / M313 / M316 / M318 / M323 / H309 / H316 / H318 (12-pin)
SensorTools Software
35
7.2.2 Control Window
T means temperature and indi-
cates the measured temperature.
Devices with PID controller al-
ways display the setpoint.
If a ramp time is defined, the set-
point can always display the updat-
ed value when the buffer mode with
status information is selected in the
data recording settings (see
7.2.3.4).
The internal device temperature
(DT) depends on the ambient tem-
perature and the device self-
heating.
- Models M309, M313, M316 und
M318 are permissible up to max-
imum 80°C (to comply the accuracy, use M318 models only up to 60°C internal temperature), the
M323 up to 70°C maximum.
- H3 models are permissible up to maximum 65°C.
- The laser targeting light is deactivated at a device temperature above 65°C (M3 devices) or 60°C
(H3 devices), the camera module of M3 devices above 55°C to prevent its overheating. Below that
temperature it can be used again.
The status of the digital inputs / outputs is indicated by an LED symbol:
- Input (IN) or output (OUT) active
- Input (IN) or output (OUT) inactive
- Input (IN) or output (OUT) not activated (no function)
Adapt parameters: Parameter changes are immediately transferred to the pyrometer.
- Device parameters
- The response time t
90
(see 6.3.1) can be adapted to the measurement conditions.
Selecting "Minimal" the pyrometer works with the shortest possible devices response time of
<1 ms (M3) or <40 µs (H3). Under "User definded" times between 1 ms (M3) or 0.1 ms (H3) and
10 s can be entered.
- Storage mode (see 6.3.2): switches on (and off) the maximum value storage and allows clear
settings.
Measurement parameters:
( To display further sub-parameters, each individual parameter can be extended)
- Emissivity (see 6.3.1): Adjustment of the surface properties.
- Transmittance (see 6.3.4): Transmittance of a window
- Spot size filling (see 6.3.5): For targets smaller than the spot size.
- Quick adjustment of parameters : Changes the currently selected pa-
rameter (e.g. click with the mouse in a field or select it using the Tab key in sequence of the fields).
- Parameter quick save (ShortSettings): Allows quick storage and retrieval of the set measurement
parameters (for devices with integral PID controller, the PID parameters are also saved).
: Saves the current measurement parameters as *.ShortSetting file on the computer.
: Loads a *.ShortSetting file from your computer into the pyrometer.
A measurement parameters file currently loaded is displayed in the status bar with a
file icon and the name of the file.
A subsequent change of measured parameter is indicated by a pyrometer icon which
shows that the parameters are read from the pyrometer.

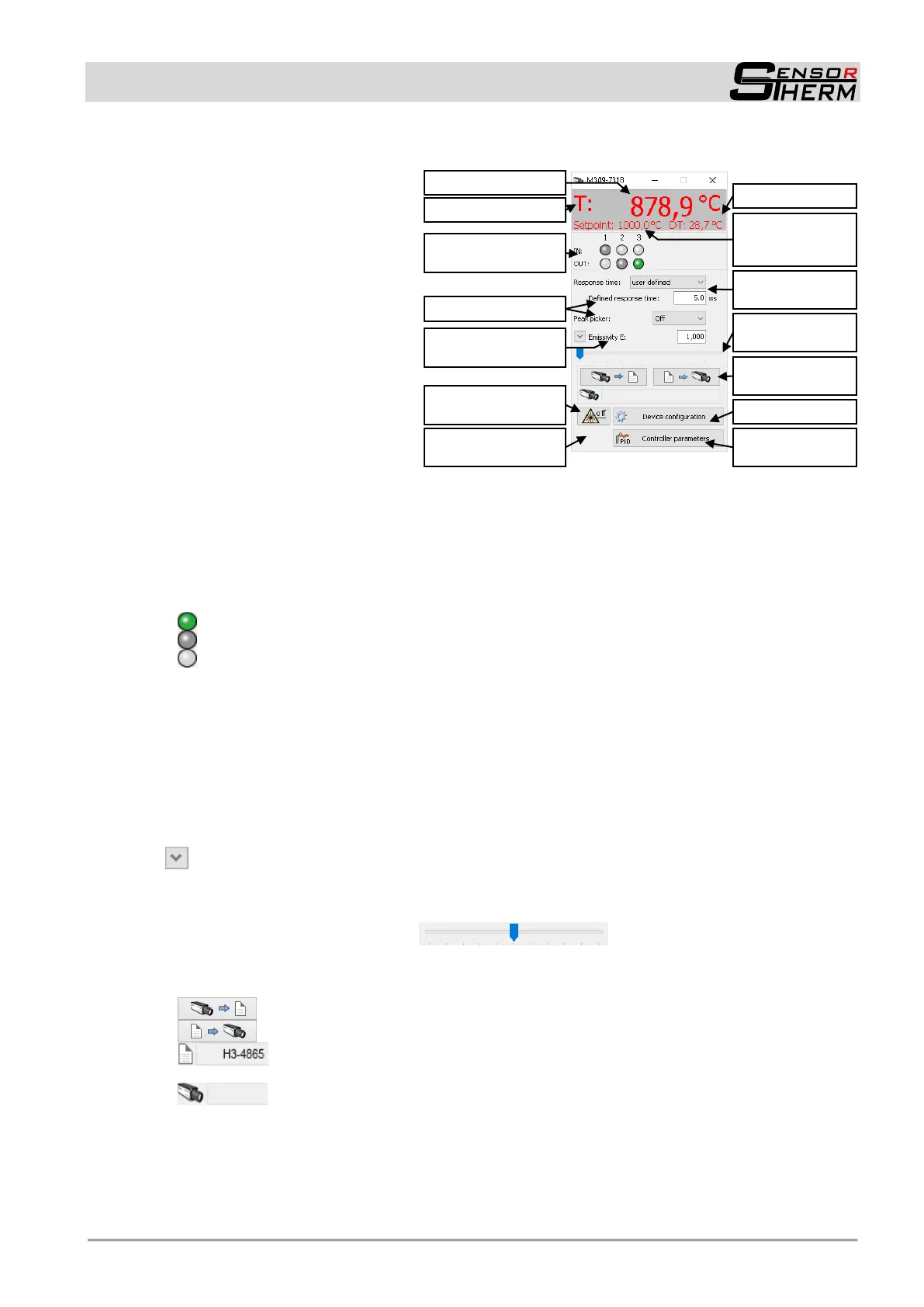

Controller parame-
ters (optional)
Device configuration
Laser targeting light on-
off/ camera settings
Status of the digital
inputs / outputs
Measuring mode
selection
Device temperature
Temp. measuring mode
Device parameters
Motor focus adjustment
(optional)
Measurement pa-
rameters quick save
Parameter quick
adjustment
Measured temperature
Set point temp.
(devices with PID
controller)
Measurement parame-
ters (extendable)
