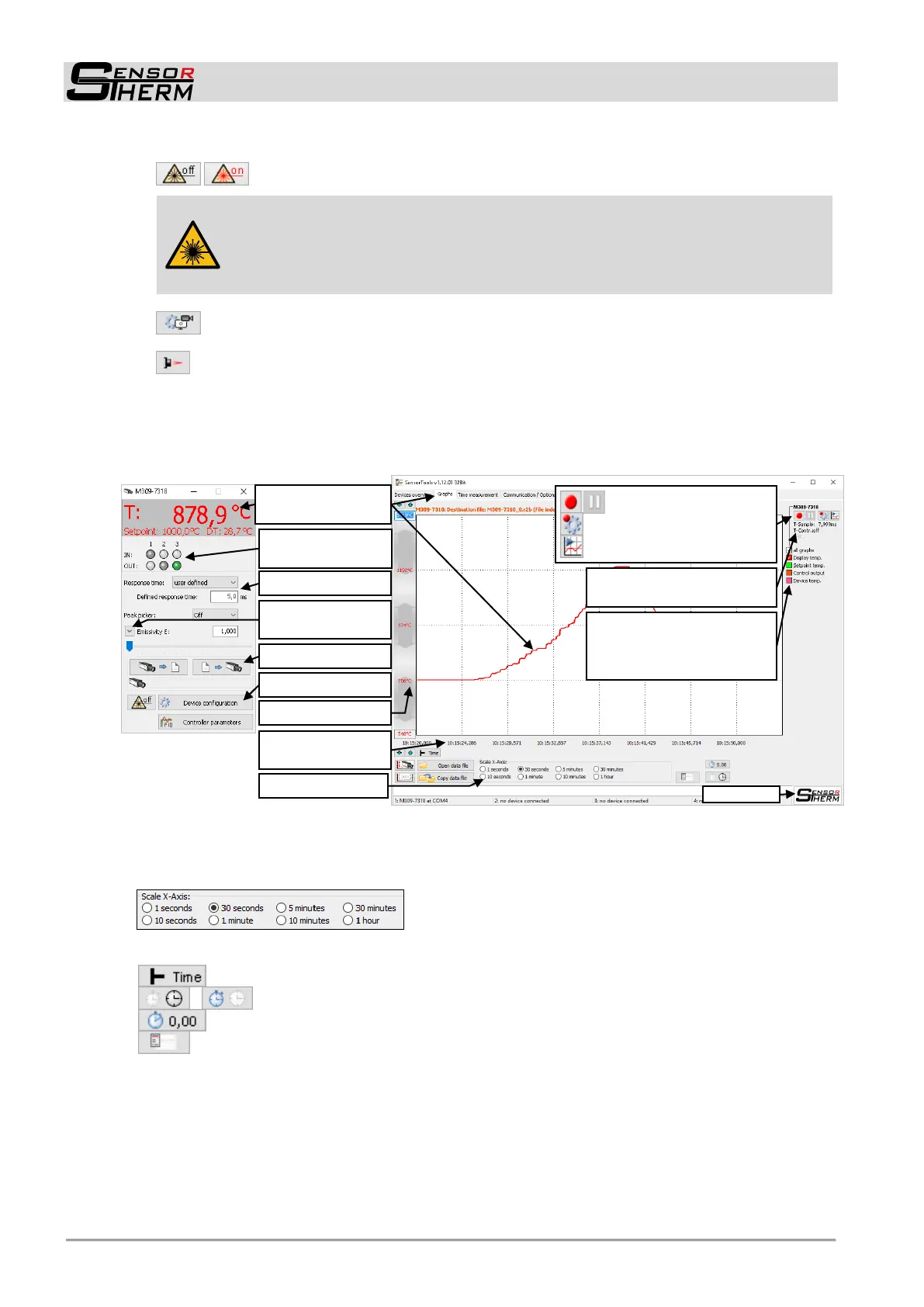

METIS M308 / M309 / M313 / M316 / M318 / M323 / H309 / H316 / H318 (12-pin)
SensorTools Software
32
Sighting settings (device specific):
-
the laser targeting light can be switched on and off.
CAUTION, Laser Radiation, Laser Class 2:
Never look into the direct or reflected laser beam.
Do not point the laser to anyone.
If laser radiation hits the eye, the eyes must be intentionally closed and the head
immediately moved out of the beam.
-
with camera module monitor settings are configured (see 7.2.2 Control window
camera settings.
- With a motorized-focus optics, the measurement or focus distance can be adjusted (see
5.5.2 and under 7.2.2 Motorized focus settings )
7.2 Software Windows
7.2.1 Main Window Graphs
The graph window in the main window shows the temperature profile in time.
Scale X-Axis allows to set the time at which the graphs
window is filled with measured values.
If the time is changed in "Scale X-Axis", the graph is rebuild from the center of the window.
rebuilds the graph from the left.
/ Switches the X axis of the graph between time and a stopwatch where with pressing
the displayed time can be set to 0 at the current graph position.
Opens a control window for each connected device, if they have not been activated in the
connecting window (devices overview tab).
Select display graphs (right click
to change the color settings of
the graph), activates or deac-
tivates graphs
Time axis settings
Measured temperature
numerical / graphical
Measurement settings
Temperature scale
Main window
Control window
Parameter quick save
Information to sample time,
control time and slope time
Record measured value data
Data recording settings
Data Playback
Extended measure-
ment settings
status of the digital
inputs / outputs
Device Settings
Time axis (current
time) / manual 0
Homepage link
