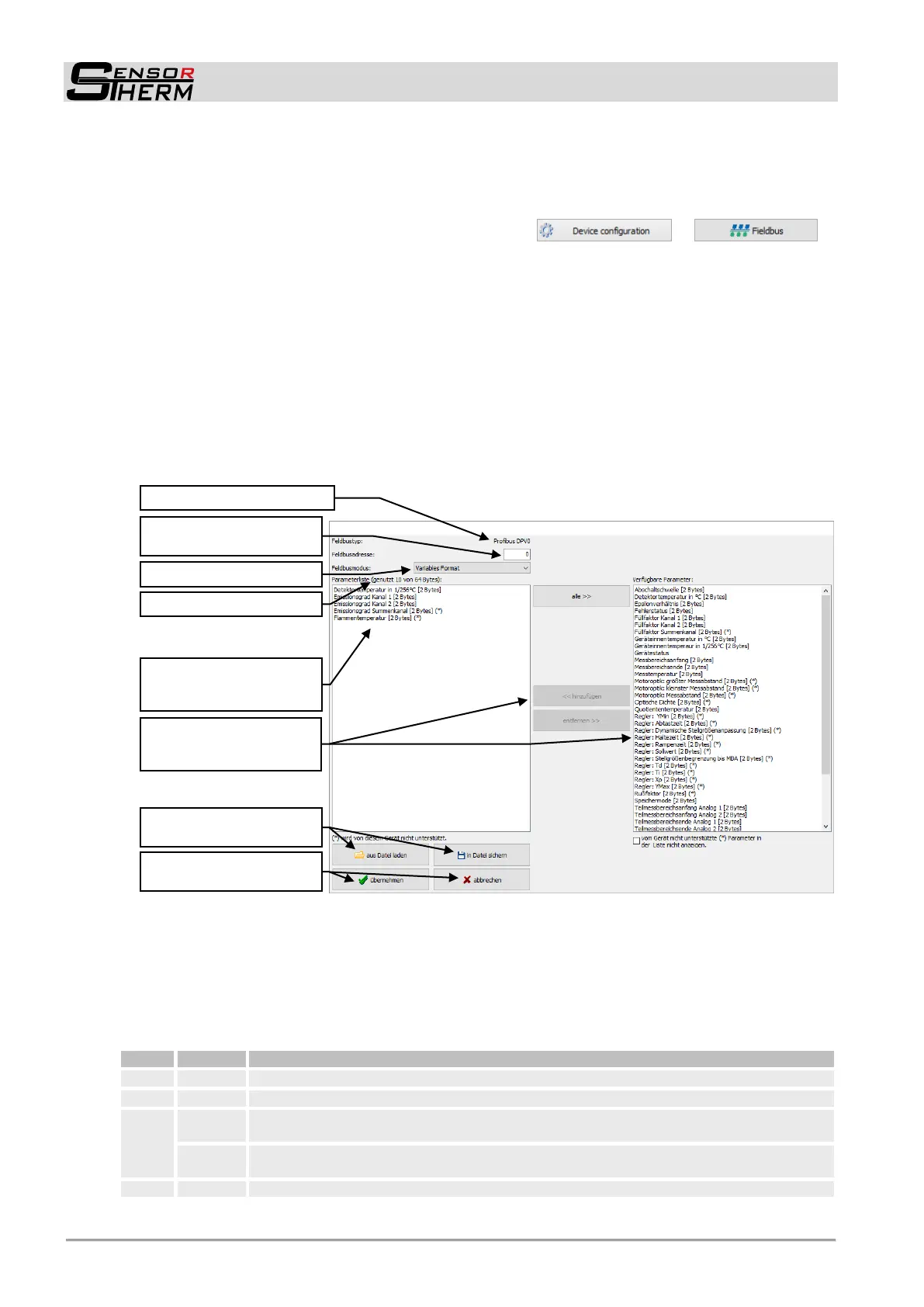

7.2.5 Profibus- / Profinet Equipment
7.2.5.1 Fieldbus Mode Selection for Reading the Pyrometer Data
To read out the measured temperature and measurement relevant parameters, a fieldbus mode must
be selected. There are 3 available, the setting is made via  .
Modes: The first two modes list the transmitted data, they are for information and can not be changed.
In user-defined mode, the data to be transferred can be compiled from a list of all available data and the
order can be determined.
 Mode 0: Downward compatible to Metis series: Provides a non-modifiable parameter list that is
compatible with older pyrometer models MS / MI / MQ etc., it is used to substitute an M3 for these
devices.
 Mode 1: Fixed format M3 series with the most frequently used parameters: Provides a non-
modifiable parameter list that includes the most commonly used parameters of a fully featured py-
rometer.
 Mode 2: Custom format M3 series: In this mode, the required parameters can be individually se-
lected to create own profiles.
Note about parameters listed with (*): These parameters are not supported by the device. For
compatibility purposes to 2-channel devices, they can be transmitted as an empty area, in the event
that 1- and 2-channel devices are to be used together. By placing the hook below the list, these pa-
rameters can be hidden from the list.
Mode 0 (Data packet size 32 Byte): sequence and meaning
Byte
Bytes
Meaning
1+2
AAAA
Measured temperature (in 1/10°C); special case: F000h = invalid measured value (overflow)
3+4
BBBB
Emissivity (4 digits dec. in ‰) 1000 = 100%
5
C
Response time (hex.; 0...6)
0 = Intrinsic time constant of the device 1=0,01 s
2=0,05 s 3=0,25 s 4=1 s 5=3 s 6=10 s
D
Clear settings of maximum value
storage (0...8)
0 = off 1=0.01 s 2=0.05 s 3=0.25 s 4=1 s 5=5 s
6=25 s 7=ext. clear 8=autom. clear
6
E
Analog output (hex.; 0, 1): 0 = 0–20 mA; 1 = 4–20mA
Fieldbus address
(only with Profibus devices)
Fieldbus type (for info purposes)
Fieldbus mode selection
Selected parameters
(Sequence can be changed by
moving)
Used and free storage
Transfer available parameters
by moving them to the selec-
tion list
Save or load compiled lists on
the PC
Transfer or discard selection to
the pyrometer
