Overview
7
3 Overview
3.1 Intended Use
The pyrometers Metis M3 and H3 are devices for non-contact temperature measurement. With its short-
wave spectral range they are suitable for measurements on metals, ceramics, graphite etc. with tem-
perature ranges depending on the model between 50 and 3300°C (M3) and 120 and 2500°C (H3). The
M3 models have a response time of < 1 ms. The H3 models are high-speed instruments with a re-
sponse time of < 40 µs.
3.2 Scope of Delivery
Pyrometer, software SensorTools, works certificate, user manual
(connection cables are not included in scope of delivery and have to be ordered separately).

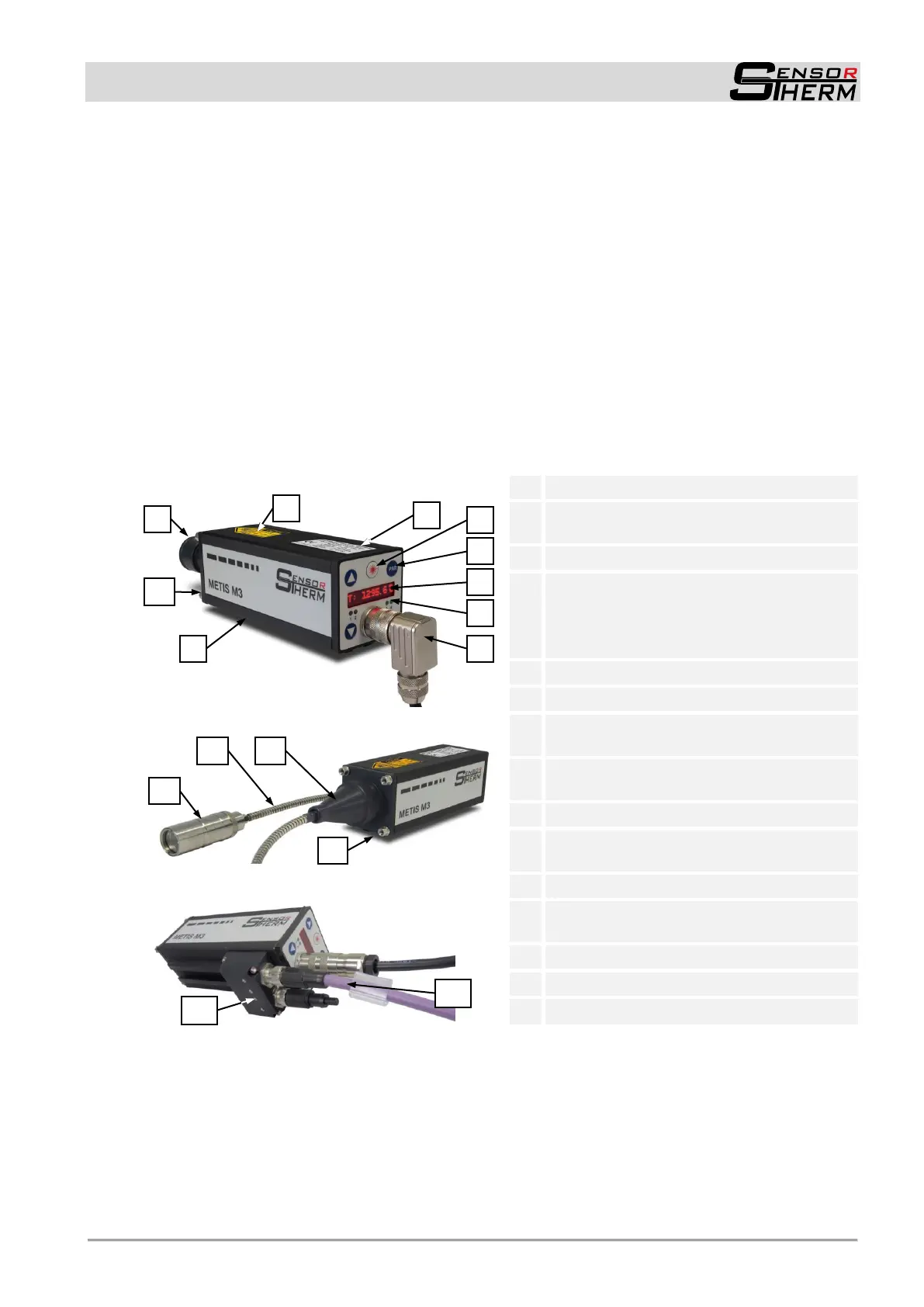

3.3 Model Designs
Standard models:
1
Optics
2
Laser warning label
(only devices with laser targeting light)
3
Device identification label
4
Depending on sighting:
- Eyepiece (models with view finder)
- Laser targeting light push button
- Connector for TV connection
5
Keypad
6
LED display
7
LEDs to indicate system ready or
active switching outputs
8
Connectors for power supply, analog out-
put, serial interface and special functions
9
Mounting rail
10
Mounting thread (M5) for front mounting
the pyrometer or accessory
11
Focusable fiber optics lens
12
Optical fiber for transporting the heat radia-
tion to the pyrometer
13
Tube to protect the optical fiber connection
14
Profibus / Profinet connectors
15
LEDs for monitoring the PB / PN activities
All models feature:
 2 linear analog current outputs
 A serial interface (M3: RS232 / RS485 switchable; H3: RS485)
 3 configurable inputs / outputs
 Software SensorTools (included)
 Optional sightings: laser targeting light, camera or view finder
 Different optics for different measuring distances
Differences in models with fiber optics:
12
11
13
1
10
3
4
5
6
7
8
9
10
2
Additionally at models with Profibus / Profinet:
14
15
