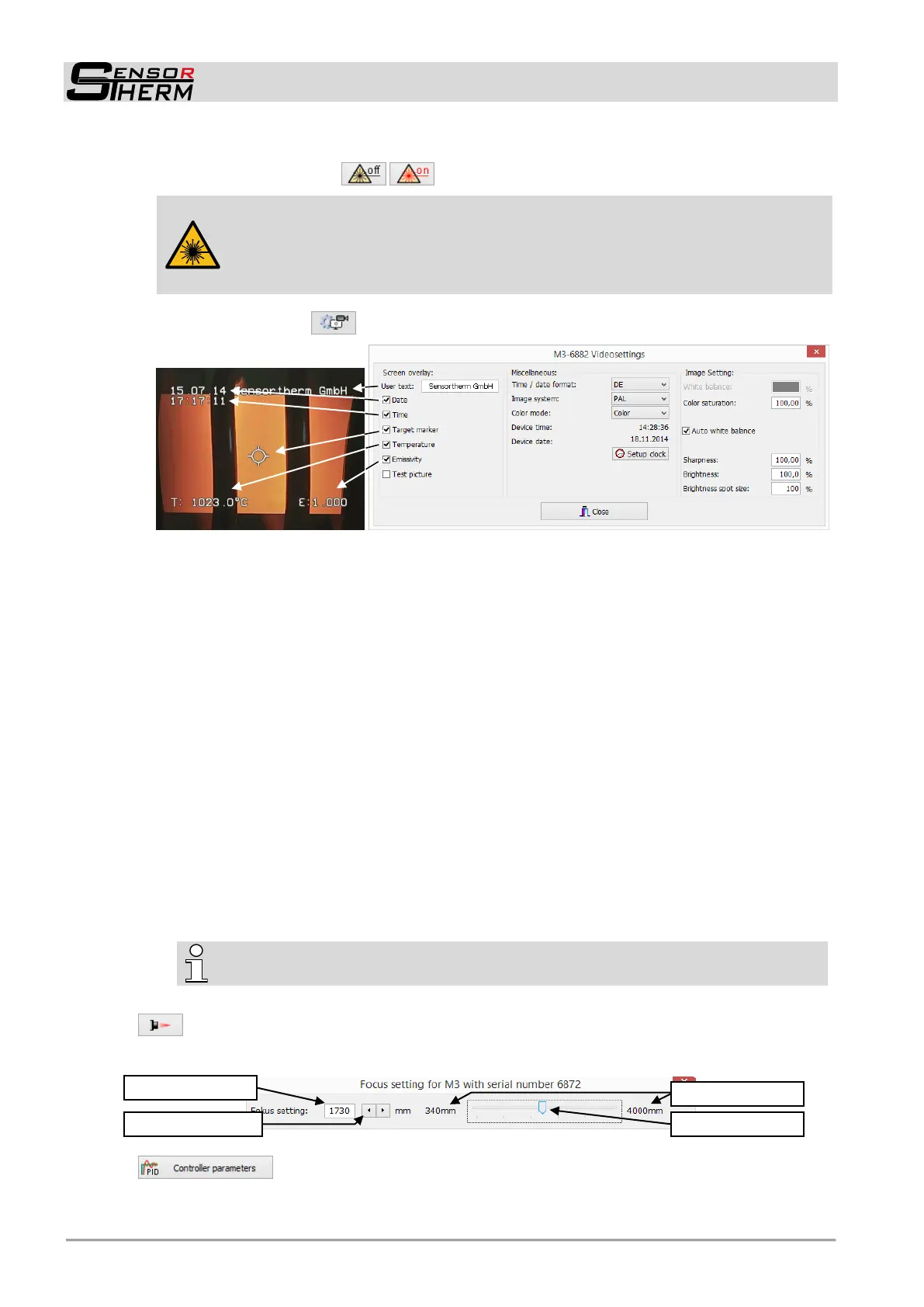

METIS M308 / M309 / M313 / M316 / M318 / M323 / H309 / H316 / H318 (12-pin)
SensorTools Software
36
Laser targeting light on-off or camera settings: depending on the sighting:
- with laser targeting light (
): switching on and off.
CAUTION, Laser Radiation, Laser Class 2:
Never look into the direct or reflected laser beam.
Do not point the laser to anyone.
If laser radiation hits the eye, the eyes must be intentionally closed and the head
immediately moved out of the beam.
- with camera module ( ): configure monitor settings:
- Screen overlay: select the desired overlays
- User text: A text with max. 16 characters can be displayed on top right.
- Emissivity: shows depending on the measuring mode the emissivity or the emissivity slope.
- Test picture: Shows a test image instead of the camera picture.
- Miscellaneous
- Date / time format: US (American time format): month, day, year
DE (German time format): day, month, year
- Image system: PAL (720 x 576 Pixel) / NTSC (720 x 480 Pixel)
- Color mode: Color or black and white.
- Device time / Device date: Time and date by the pyrometer.
- Setup clock: Transfers the PC time to the device clock of the pyrometer.
- Image settings
- White balance (active only when auto white balance off): Input 0 to 100% of the window ar-
ea, calculated centrally on the monitor center.
- Color saturation: Sets the quality of the color effect
- Auto white balance: Executes the white balance automatically. Possibly with disabled func-
tion the result is better because the function reacts slowly to changes in color.
- Sharpness: Input 0 to 100%, with values below 100%, the image is soften.
- Brightness: For manual brightness adjustment.
- Brightness spot size: window size that should be used for the automatic brightness adjust-
ment. Enter 5 to 100% of the window area, calculated centrally on the monitor center.
INFO: To prevent image overmodulation, the measured object should be in the middle
(in the target mark) and the brightness spot size as large as the measuring object.
Motorized focus settings (pyrometers with motorized focus optics only):
For adjusting the measured distance to the measuring object.
PID controller (optional equipment, see 7.2.4 PID controller equipment).
Opens a window with the controller settings.
Input via keyboard
Available range
Click in steps of 1 cm
Slide with mouse
TV picture
