Sepura SC21 Series User Manual

Uniform stud
The uniform stud (part no. 300-01832) allows quick, easy docking and locking of the radio into any of
the positions provided by the ratchet system. The stud is used together with the available Klickfast
dock kit that provides attachments for various types of belts (clothing) and locker or car dash board
mountings.
The radio is first inserted into the dock. It can then be angled as necessary. To remove the radio from
the dock, it must be inverted before removing from the dock.
The stud is fitted to the mounting clip attachment points on the back of the radio.

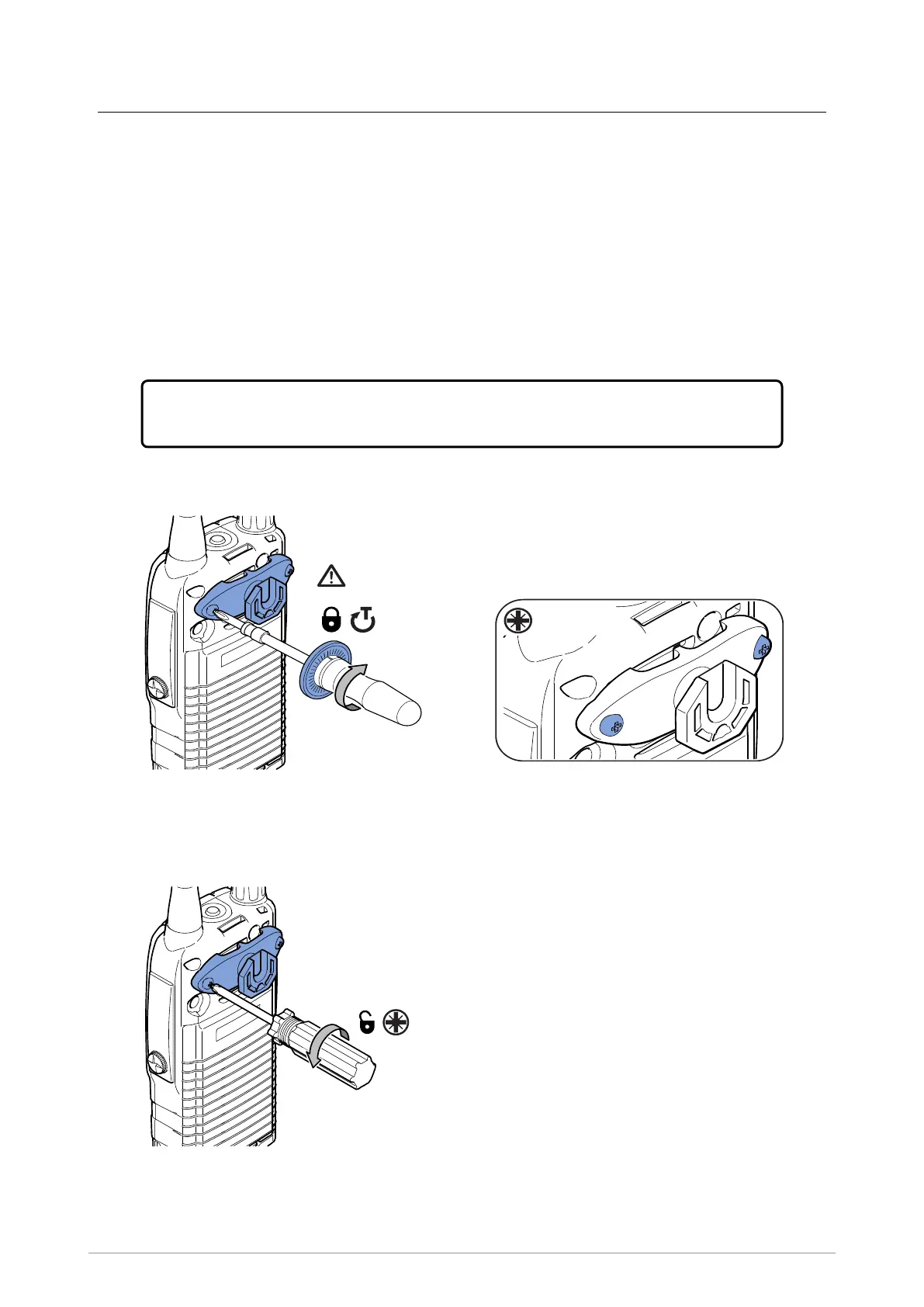

Attaching the stud
Caution! Risk of damage to the radio. Ensure the stud screws are secure, but do not over
tighten. If using a torque screwdriver, apply a maximum torque of 45 Ncm or equivalent.
1. Using a PZ1 screwdriver attach the stud to the two attachment points as shown.
MAX 45 Ncm
PZ1 x 2
Do not over tighten
Removing the stud
1. Using a PZ1 screwdriver remove the stud from the two attachment points.
PZ1 x 2
User Guide 123

Sepura SC21 Series Specifications

General

IP Rating	IP54
Operating Temperature	-20°C to +55°C
Channel Spacing	25 kHz
Ingress Protection	IP54
Channels	Up to 2000
Frequency Bands	380-430 MHz, 806-870 MHz
Battery Life	Up to 14 hours
RF Power Output	1W
TETRA Air Interface	ETSI EN 300 392-2
