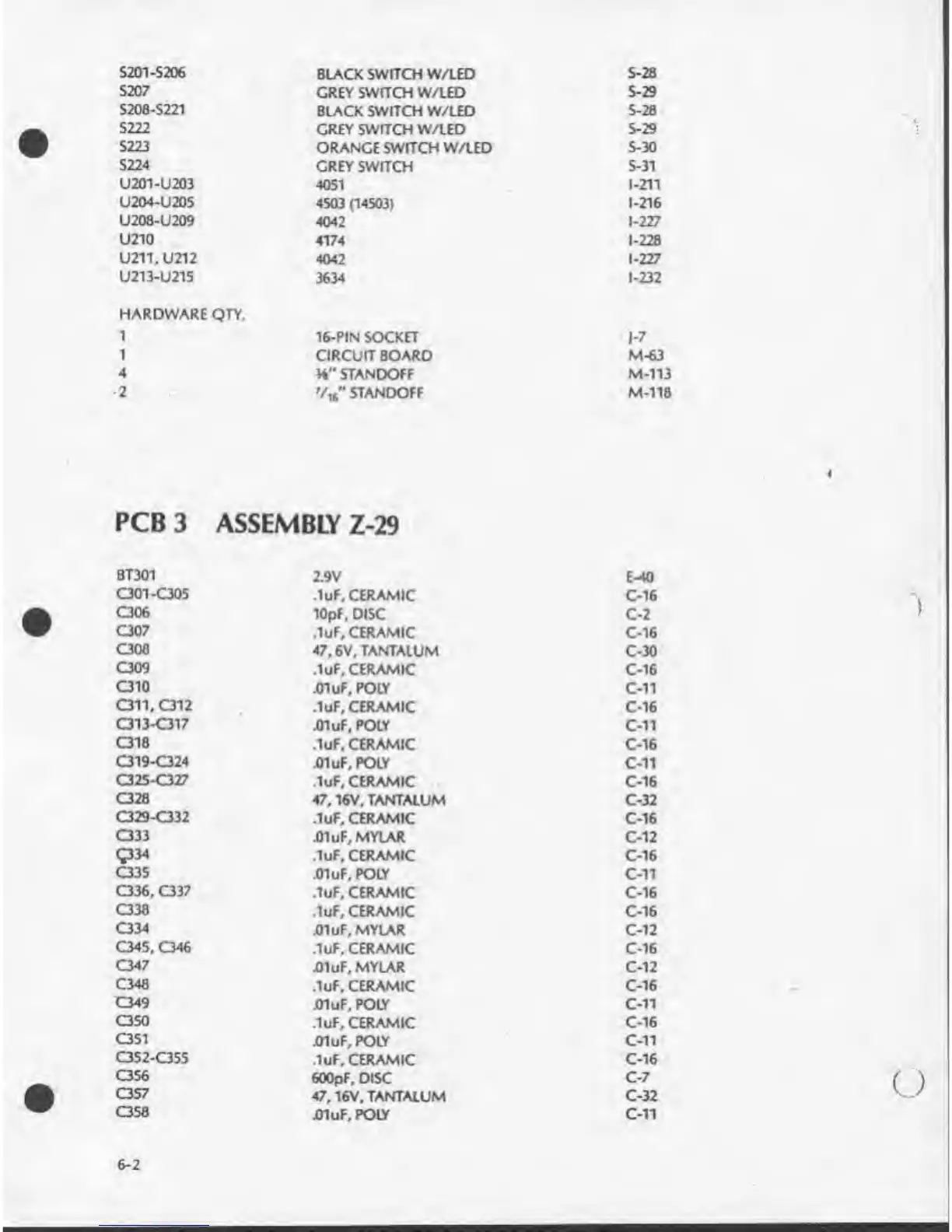

S201-S206
BLACK SWITCH W/LED
S-28
S207
GREY SWITCH W/LED
S-29
S208-S221
BLACK SWITCH W/LED
S-28
S222
GREY SWITCH W/LED S-29
S223
ORANGE SWITCH W/LED
S-30
S224
GREY SWITCH S-31
U201-U203
4051 1-211
U204-U205
4503 (14503)
1-216
U208-U209
4042
1-227
U210 4174
1-228
U211.U212 4042 1-227
U213-U215
3634 1-232
HARDWARE QTY.
1 16-PIN SOCKET J-7
1
CIRCUIT BOARD
M-63
4
H” STANDOFF M-113
2
V„" STANDOFF
M-118
PCB 3
ASSEMBLY Z-29
BT301
2.9V
E-40
C301-C305
.1uF, CERAMIC C-16
006
lOpF, DISC
C-2
007
.1uF, CERAMIC C-16
008
47,6V, TANTALUM C-30
009
.1uF, CERAMIC C-16
010
-01 uF, POLY
C-11
011,012
.1uF, CERAMIC
C-16
013-017 -01 uF, POLY
C-11
018
•1uF, CERAMIC C-16
019-024
.01 uF, POLY
C-11
025-027
.1uF, CERAMIC . C-16
028
47,16V, TANTALUM C-32
029-032
.1uF, CERAMIC C-16
033
.01 uF, MYLAR C-12
Q334
.1uF, CERAMIC C-16
035
.01 uF, POLY C-11
036, 037
.1uF, CERAMIC C-16
038
.1uF, CERAMIC
C-16
034
.01 uF, MYLAR C-12
045,046
.1uF, CERAMIC
C-16
047
.01 uF, MYLAR C-12
C348
•1uF, CERAMIC C-16
049
.01 uF, POLY C-11
050
.1uF, CERAMIC
C-16
051
.01 uF, POLY C-11
052-055
.1uF, CERAMIC
C-16
056
600pF, DISC
C-7
057
47,16V, TANTALUM C-32
058
.01 uF, POLY C-11
6-2
