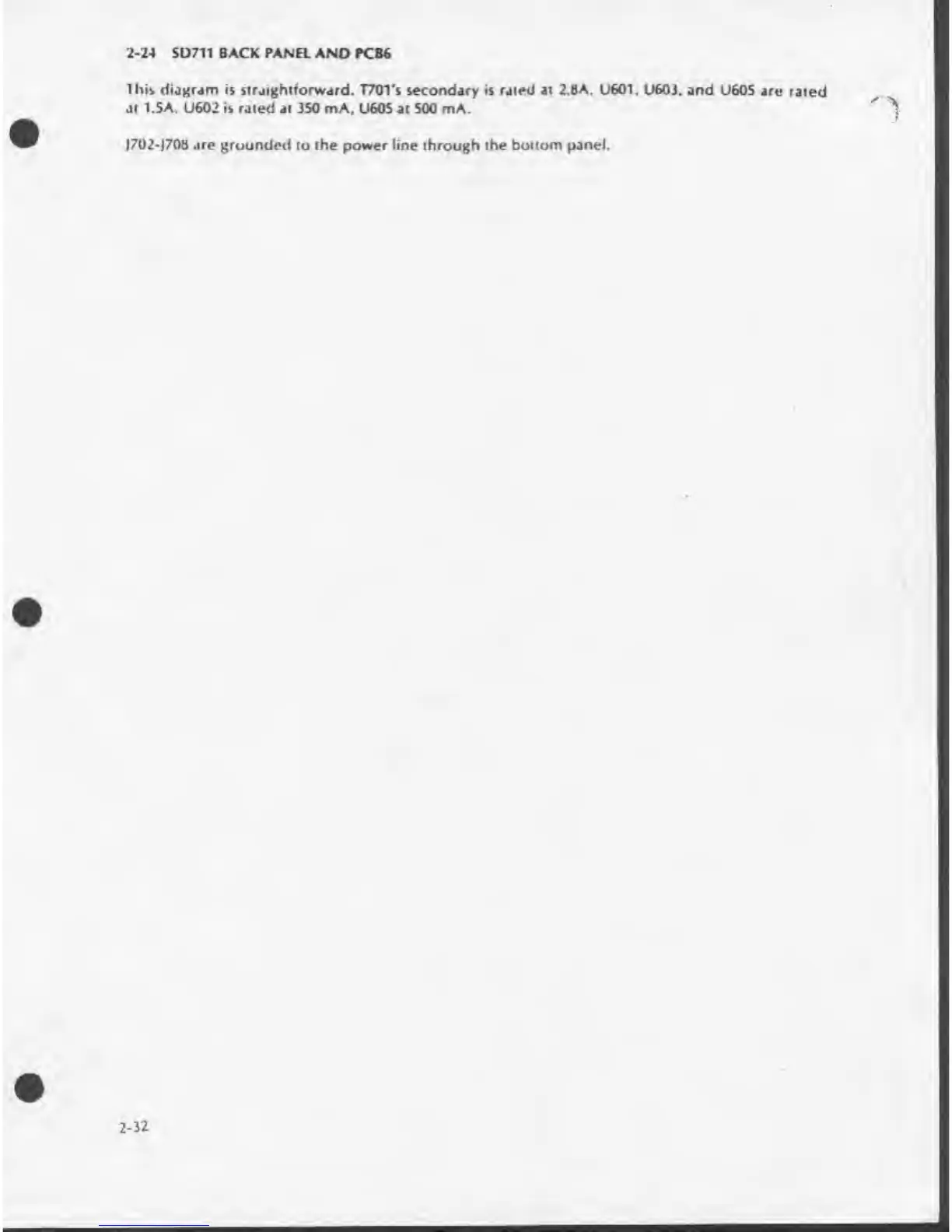

2-24
SD711
BACK
PANEL
AND
PCB6
This
diagram
is
straightforward.
T701's
secondary
is
rated
at
2.8A.
U601.
U603.
and
U60S
are
rated
at
1.5A.
U602
is
rated
at
350
mA.
U605
at
500
mA.
1702-1708
are
grounded
to
the
power
line
through
the
bottom
panel.
2-32
