pRopbet-5"

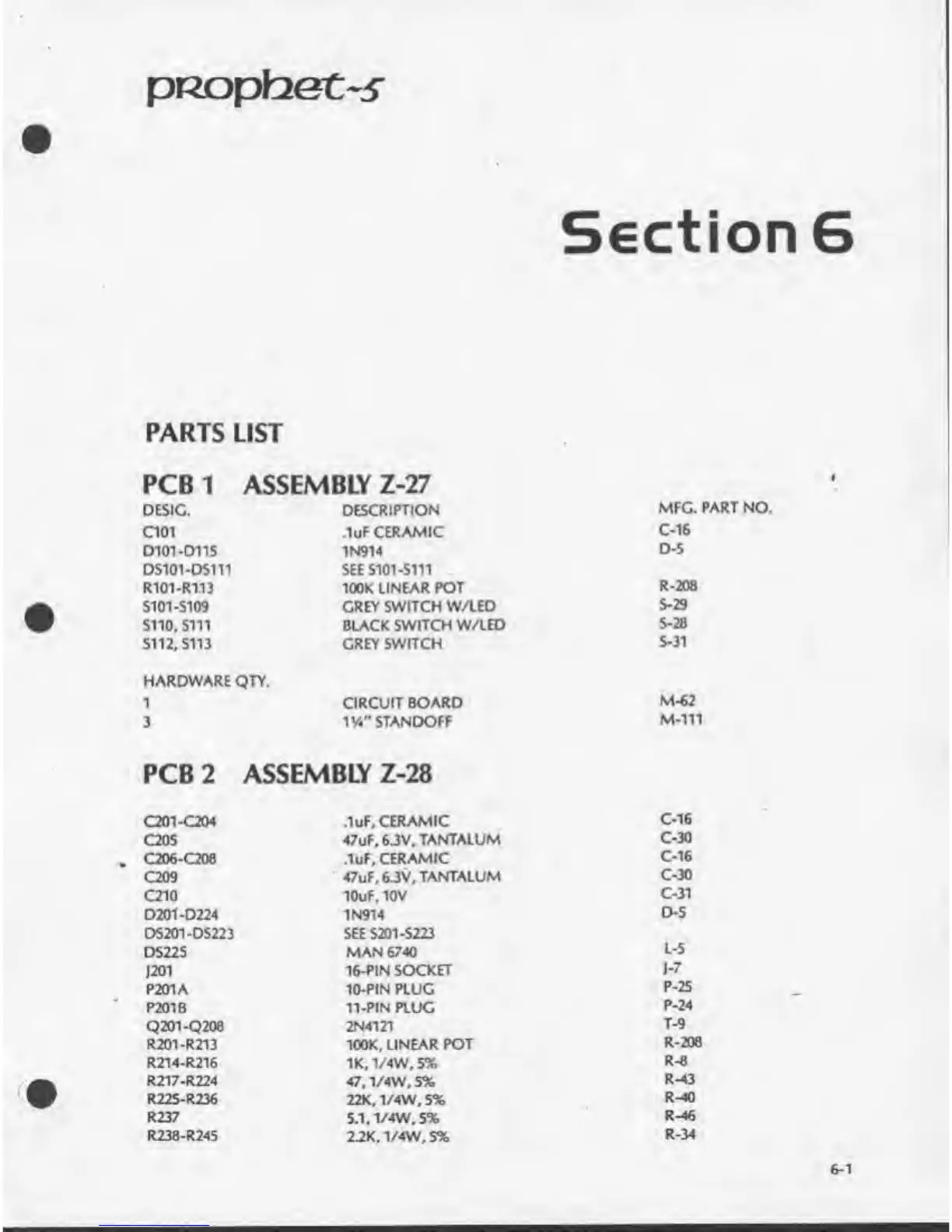

Section 6
PARTS LIST
PCB 1 ASSEMBLY Z-27
DESIC.
DESCRIPTION
MFC. PART NO.
C101 .1uF CERAMIC
C-16
D101-D115
1N914
D-5
DS101-DS111
SEE S101-S111
R101-R113 100K LINEAR POT
R-208
S101-S109 GREY SWITCH W/LED
S-29
S110, sm BLACK SWITCH W/LED
S-28
S112, S113
GREY SWITCH
S-31
HARDWARE QTY.
1 CIRCUIT BOARD
M-62
3
1V-" STANDOFF
M-111
PCB 2 ASSEMBLY Z-28
C201-C204
.1uF, CERAMIC
C-16
C205 47uF, 6.3V, TANTALUM
C-30
C206-C208
.1uF. CERAMIC
C-16
C209
‘ 47uF, 6.3V, TANTALUM
C-30
C210
10uF, 10V
C-31
D201-D224 1N914
D-S
DS201-DS223
SEE S201-S223
DS225 MAN 6740
L-S
J201
16-PIN SOCKET
1-7
P201A 10-PIN PLUG
P-25
P201B 11-PIN PLUG
P-24
Q201-Q208 2N4121
T-9
R201-R213 100K, LINEAR POT
R-208
R214-R216
IK. 1/4W, 5%
R-3
R217-R224
47,1/4W, 5%
R-43
R225-R236 22K, 1/4W, 5%
R-40
R237
5.1,1/4W, 5%
R-46
R238-R245 2.2K, 1/4W, 5%
R-34
6-1
