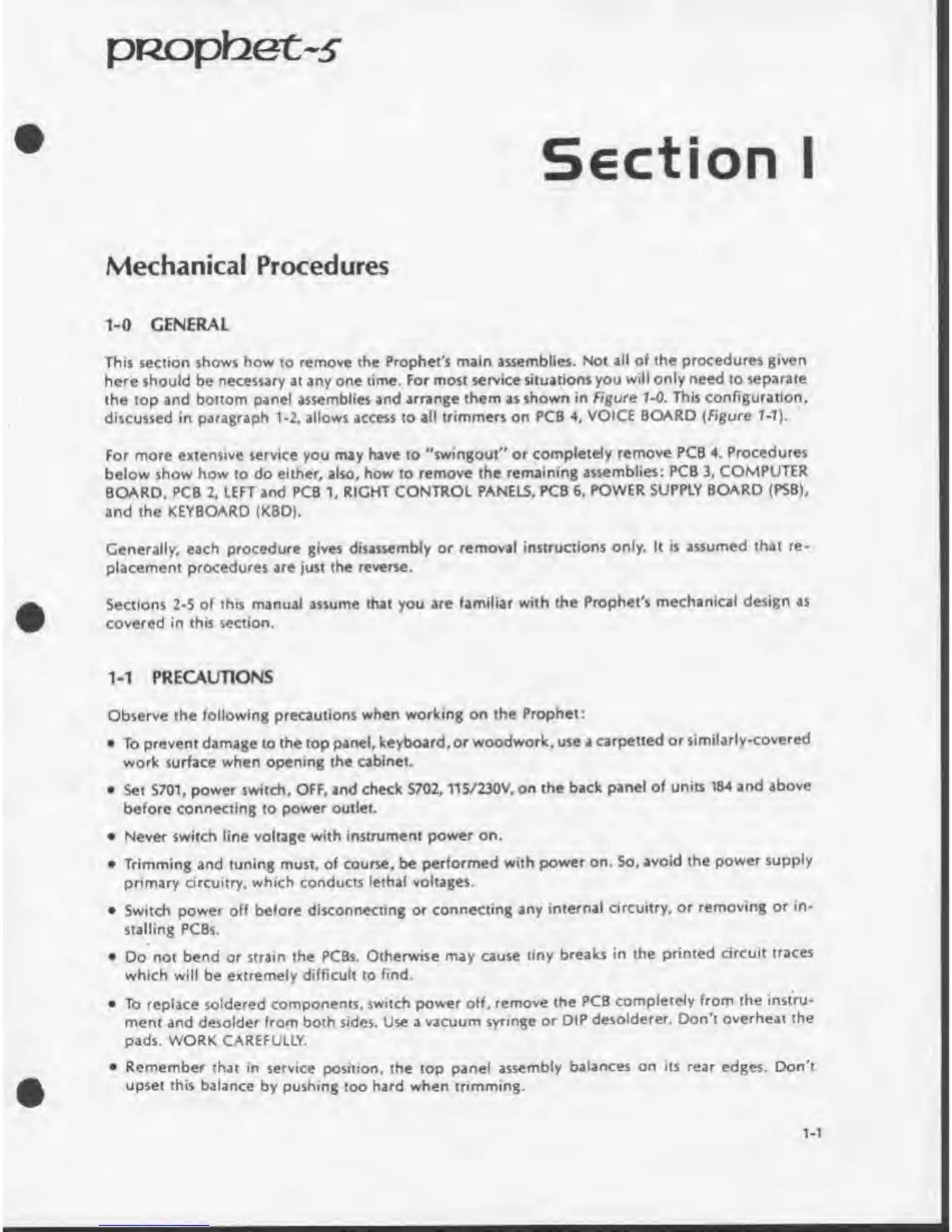

pRopteet-i'
Section
I
Mechanical
Procedures
1-0
GENERAL
This
section
shows
how
to
remove
the
Prophet's
main
assemblies.
Not
all
of
the
procedures
given
here
should
be
necessary
at
any
one
time.
For
most
service
situations
you
will
only
need
to
separate
the
top
and
bottom
panel
assemblies
and
arrange
them
as
shown
in
Figure
1-0.
This
configuration,
discussed
in
paragraph
1-2,
allows
access
to
all
trimmers
on
PCB
4,
VOICE
BOARD
(Figure
7-7).
For
more
extensive
service
you
may
have
to
"swingout"
or
completely
remove
PCB
4.
Procedures
below
show
how
to
do
either,
also,
how
to
remove
the
remaining
assemblies:
PCB
3,
COMPUTER
BOARD.
PCB
2.
LEFT
and
PCB
1,
RIGHT
CONTROL
PANELS.
PCB
6.
POWER
SUPPLY
BOARD
(PSB),
and
the
KEYBOARD
(KBD).
Generally,
each
procedure
gives
disassembly
or
removal
instructions
only.
It
is
assumed
that
re¬
placement
procedures
are
just
the
reverse.
Sections
2-5
of
this
manual
assume
that
you
are
familiar
with
the
Prophet's
mechanical
design
as
covered
in
this
section.
1-1
PRECAUTIONS
Observe
the
following
precautions
when
working
on
the
Prophet:
To
prevent
damage
to
the
top
panel,
keyboarder
woodwork,
use
a
carpetted
or
similarly-covered
work
surface
when
opening
the
cabinet.
Set
S701,
power
switch,
OFF,
and
check
S702,115/230V,
on
the
back
panel
of
units
184
and
above
before
connecting
to
power
outlet.
Never
switch
line
voltage
with
instrument
power
on.
Trimming
and
tuning
must,
of
course,
be
performed
with
power
on.
So,
avoid
the
power
supply
primary
circuitry,
which
conducts
lethal
voltages.
Switch
power
off
before
disconnecting
or
connecting
any
internal
circuitry,
or
removing
or
in¬
stalling
PCBs.
Do
not
bend
or
strain
the
PCBs.
Otherwise
may
cause
tiny
breaks
in
the
printed
circuit
traces
which
will
be
extremely
difficult
to
find.
To
replace
soldered
components,
switch
power
off.
remove
the
PCB
completely
from
the
instru¬
ment
and
desolder
from
both
sides.
Use
a
vacuum
syringe
or
DIP
desolderer.
Don't
overheat
the
pads.
WORK
CAREFULLY.
Remember
that
in
service
position,
the
top
panel
assembly
balances
on
its
rear
edges.
Don’t
upset
this
balance
by
pushing
too
hard
when
trimming.
