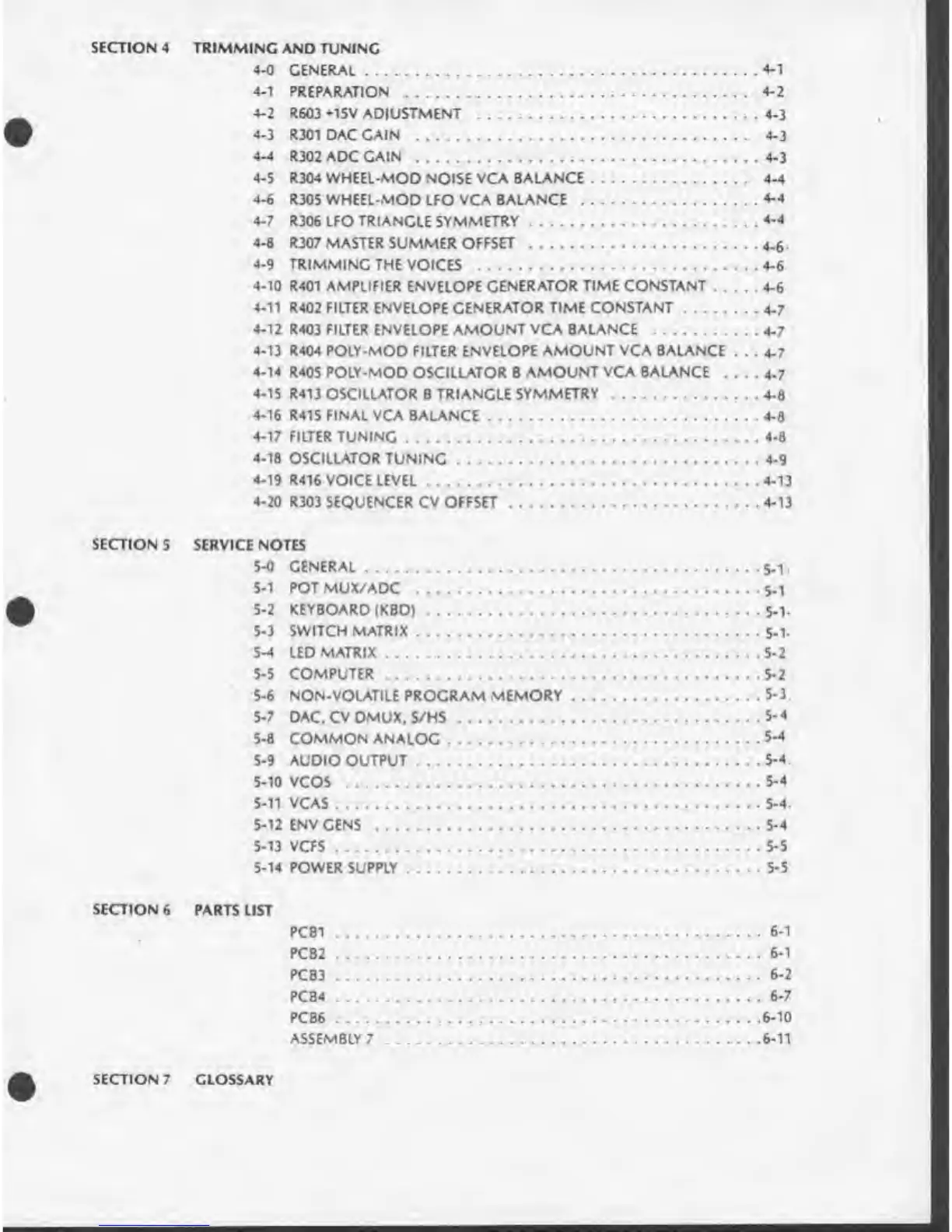

SECTION 4 TRIMMING AND TUNING
4-0 GENERAL.4-1
4-1 PREPARATION . 4-2
4-2 R603 +15V ADJUSTMENT .4-3
4-3 R301 DAC GAIN . 4-3
4-4 R302 ADC GAIN .4-3
4-5 R304 WHEEL-MOD NOISE VCA 8ALANCE. 4-4
4-6 R305 WHEEL-MOD LFO VCA BALANCE . . 4 -4
4-7 R306 LFO TRIANGLE SYMMETRY. . 4 -4
4-fl R307 MASTER SUMMER OFFSET . 4-6
4-9 TRIMMINC THE VOICES .4-6
4-10 R401 AMPLIFIER ENVELOPE GENERATOR TIME CONSTANT.4-6
4-11 R402 FILTER ENVELOPE GENERATOR TIME CONSTANT.4-7
4-12 R403 FILTER ENVELOPE AMOUNT VCA BALANCE .4-7
4-13 R404 POLY-MOD FILTER ENVELOPE AMOUNT VCA BALANCE ... 4-7
4-14 R405 POLY-MOD OSCILLATOR B AMOUNT VCA BALANCE _4-7
4-15 R413 OSCILLATOR B TRIANGLE SYMMETRY .4-8
4-16 R415 FINAL VCA BALANCE.4-8
4-17 FILTER TUNING.4-8
4-18 OSCILLATOR TUNING.4-9
4-19 R416 VOICE LEVEL.4-13
4- 20 R303 SEQUENCER CV OFFSET.4-13
SECTION S SERVICE NOTES
5- 0 GENERAL.5-1
5-1 POT MUX/ADC .5-1
5-2 KEYBOARD (KBD).5-1-
5-3 SWITCH MATRIX.5-1-
5-4 LED MATRIX.5-2
5-5 COMPUTER.5-2
5-6 NON-VOLATILE PROCRAM MEMORY.5-3.
5-7 DAC. CV OMUX. S/HS.5-4
5-8 COMMON ANALOC.5-4
5-9 AUDIO OUTPUT.5-4
5-10 VCOS .5-4
5-11 VCAS.5-4.
5-12 ENV GENS .5-4
5-13 VCFS.5-5
5-14 POWER SUPPLY.5-5
SECTION 6 PARTS LIST
PCS!.6-1
PCB2.6-1
PCB3.6-2
PCB4.6-7
PCB6.6-10
ASSEMBLY 7.6-11
SECTION 7 GLOSSARY
