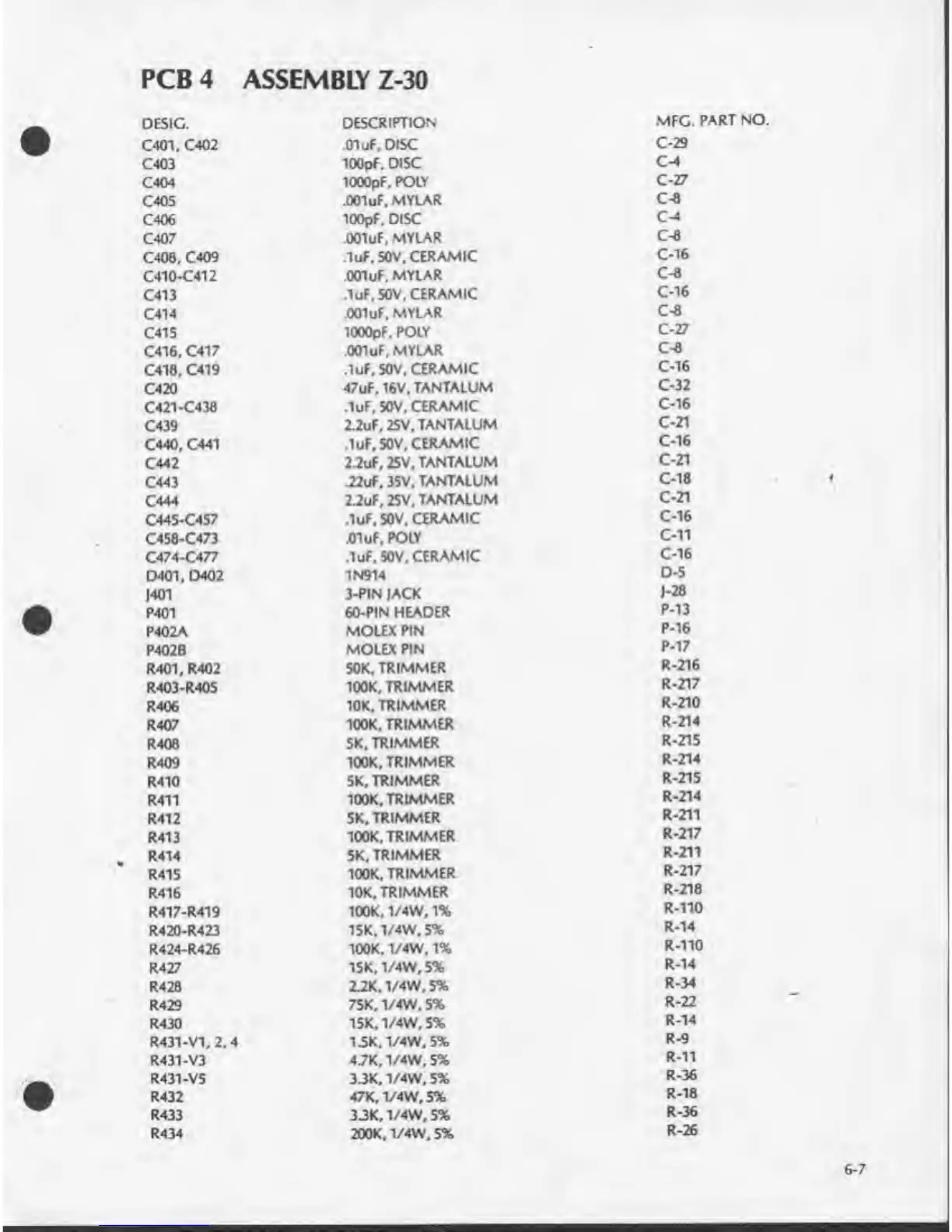

Sequential prophet 5 - Page 132

PCB 4 ASSEMBLY Z-30
DESIG.
DESCRIPTION
MFC. PART NO.
C401, C402
.01 uF, DISC
C-29
C403
lOOpF, DISC
C-4
C404
lOOOpF, POLY
C-27
C405
.001 uF. MYLAR
C-8
C406
lOOpF, DISC
C-4
C407 .OOluF, MYLAR
C-8
C409, C409
.1uF. 50V. CERAMIC
C-16
C410-C412
OOluF. MYLAR
C-8
C413
.1uF. 50V. CERAMIC
C-16
C414 .OOluF. MYLAR
C-6
C415
lOOOpF. POLY
C-27
C416, C417
OOluF, MYLAR
C-8
C418, C419
.1uF, 50V. CERAMIC
C-16
C420
47uF, 16V. TANTALUM
C-32
C421-C438 .1uF, 50V. CERAMIC
C-16
C439
2.2uF, 25V. TANTALUM
C-21
C440, C441
.1uF, 50V, CERAMIC
C-16
C442
2-2uF. 25V. TANTALUM
C-21
C443
.22uF, 35V. TANTALUM
C-18
C444
2.2uF, 25V, TANTALUM
C-21
C445-C457
.luF.SOV. CERAMIC
C-16
C458-C473
.01 uF, POLY
C-11
C474-C477 .1uF, 50V, CERAMIC
C-16
D401.D402
1N914
D-5
1401
3-PIN JACK
J-28
P401 60-PIN HEADER
P-13
P402A
MOLEX PIN
P-16
P402B MOLEX PIN
P-17
R401, R402
50K. TRIMMER
R-216
R403-R405
100K, TRIMMER
R-217
R406
10K. TRIMMER
R-210
R407
100K, TRIMMER
R-214
R408
5K. TRIMMER
R-215
R409
100K, TRIMMER
R-214
R410
5K. TRIMMER
R-215
R411
100K, TRIMMER
R-214
R412
5K, TRIMMER
R-211
R413
100K, TRIMMER
R-217
R414
5K, TRIMMER
R-211
R415
100K. TRIMMER
R-217
R416
10K. TRIMMER
R-218
R417-R419
100K, 1/4W, 1%
R-110
R420-R423
15K. 1/4W, 5%
R-14
R424-R426
100K. 1/4W. 1%
R-110
R427
15K, 1/4W, 5%
R-14
R428
2.2K. 1/4W, 5%
R-34
R429
75K. 1/4W, 5%
R-22
R430
15K, 1/4W, 5%
R-14
R431-V1.2.4 1.5K, 1/4W, 5%
R-9
R431-V3
4 JK. 1/4W, 5%
R-11
R431-V5
3 -3K, 1/4W, 5%
R-36
R432 47K, 1/4W, 5%
R-18
R433 3 JK, 1/4W, 5%
R-36
R434 200K, 1/4W, 5%
R-26
6-7
