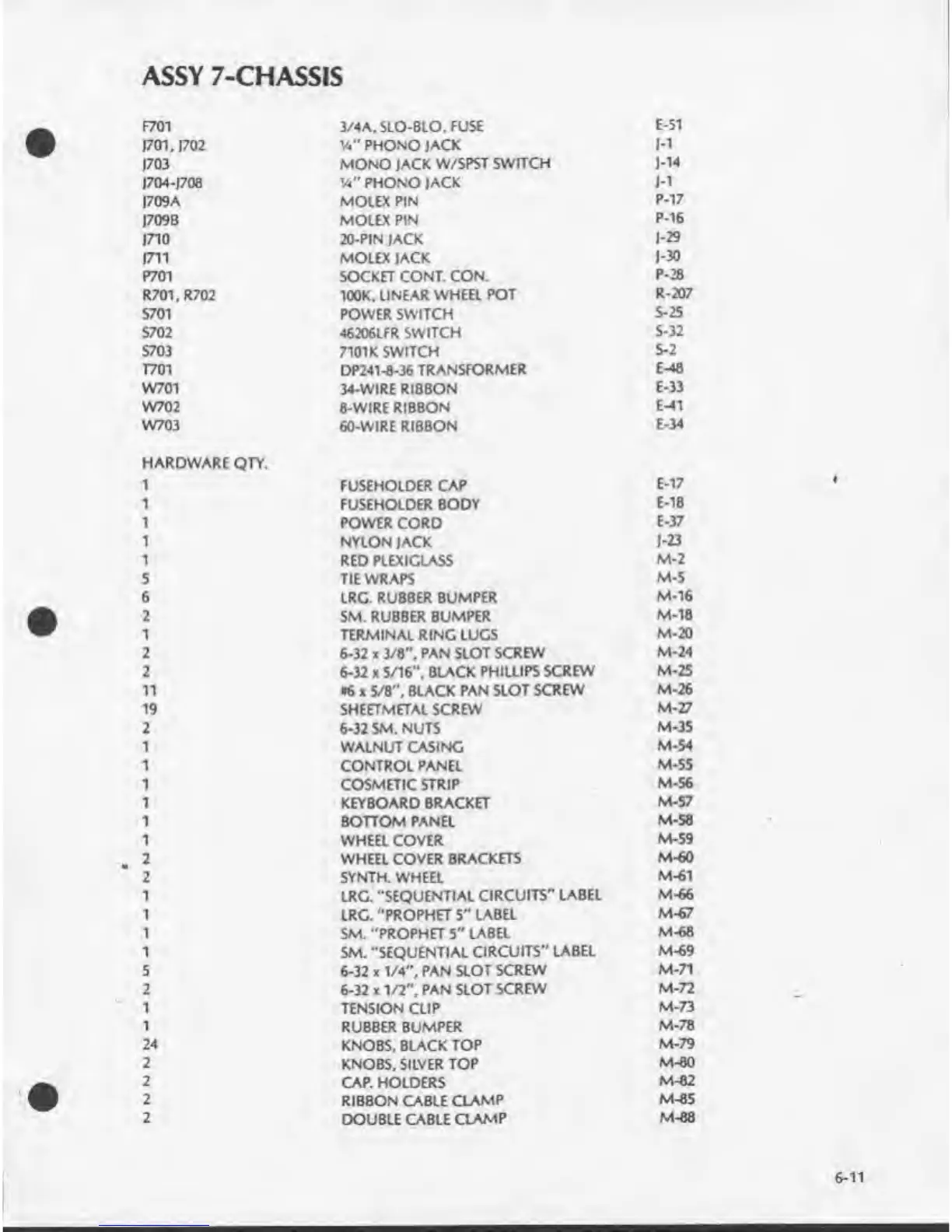

ASSY 7-CHASSIS
F701 3/4A, SLO-BLO. FUSE
E-51
J701.J702 PHONO JACK J-1
1703
MONO JACK W/SPST SWITCH
J-14
I704-J708
W” PHONO JACK
J-1
I709A
MOLEX PIN
P-17
)709B MOLEX PIN
P-16
J710
20-PIN JACK
1-29
J711 MOLEX JACK
1-30
P701 SOCKET CONT. CON.
P-28
R701. R702
100K. LINEAR WHEEL POT
R-207
S701
POWER SWITCH
S-25
S702
46206LFR SWITCH
S-32
S703 7101K SWITCH
S-2
T701
DP241-8-36 TRANSFORMER
E-48
VV701
34-WIRE RIBBON
E-33
VV702
8-WIRE RIBBON
E-41
W703
60-WIRE RIBBON
E-34
HARDWARE QTY.
1 FUSEHOLDER CAP
E-17
1 FUSEHOLDER BODY
E-18
1
POWER CORD
E-37
1 NYLON JACK
1-23
1 RED PLEXIGLASS
M-2
5 TIE WRAPS
M-5
6
LRG. RUBBER BUMPER
M-16
2 SM. RUBBER BUMPER
M-18
1 TERMINAL RING LUGS
M-20
2 6-32 x 3/8”. PAN SLOT SCREW
M-24
2 6-32 x 5/16”. BLACK PHILLIPS SCREW
M-25
11 *6 x 5/8”, BLACK PAN SLOT SCREW
M-26
19
SHEETMETAL SCREW
M-27
2 6-32 SM. NUTS
M-35
1 WALNUT CASING
M-54
1 CONTROL PANEL
M-55
1 COSMETIC STRIP
M-56
1 KEYBOARD BRACKET
M-57
1
BOTTOM PANEL
M-58
1 WHEEL COVER
M-59
2
WHEEL COVER BRACKETS
M-60
2 SYNTH. WHEEL
M-61
1 LRG. "SEQUENTIAL CIRCUITS" LABEL
M-66
1 LRG. "PROPHET 5" LABEL
M-€7
1
SM. "PROPHET 5" LABEL
M-68
1 SM. "SEQUENTIAL CIRCUITS” LABEL
M-69
5 6-32 x 1/4", PAN SLOT SCREW
M-71
2 6-32 x 1/2”, PAN SLOT SCREW
M-72
1 TENSION CLIP
M-73
1
RUBBER BUMPER
M-78
24
KNOBS. BLACK TOP
M-79
2
KNOBS. SILVER TOP
M-80
2
CAP. HOLDERS
M-82
2
RIBBON CABLE CLAMP
M-85
2
DOUBLE CABLE CLAMP
M-88
