Sequential prophet 5 - Page 42

R109
REL * 4
R106
FILT ATK ■ 2
R107 R108
DEC ■ 2.S SUS * 3
ATK * 3 DEC = 6 SUS - 5 REL = 9
U334-14 V: 200 mV/div
H: 2 ms/div (x10 MAG)

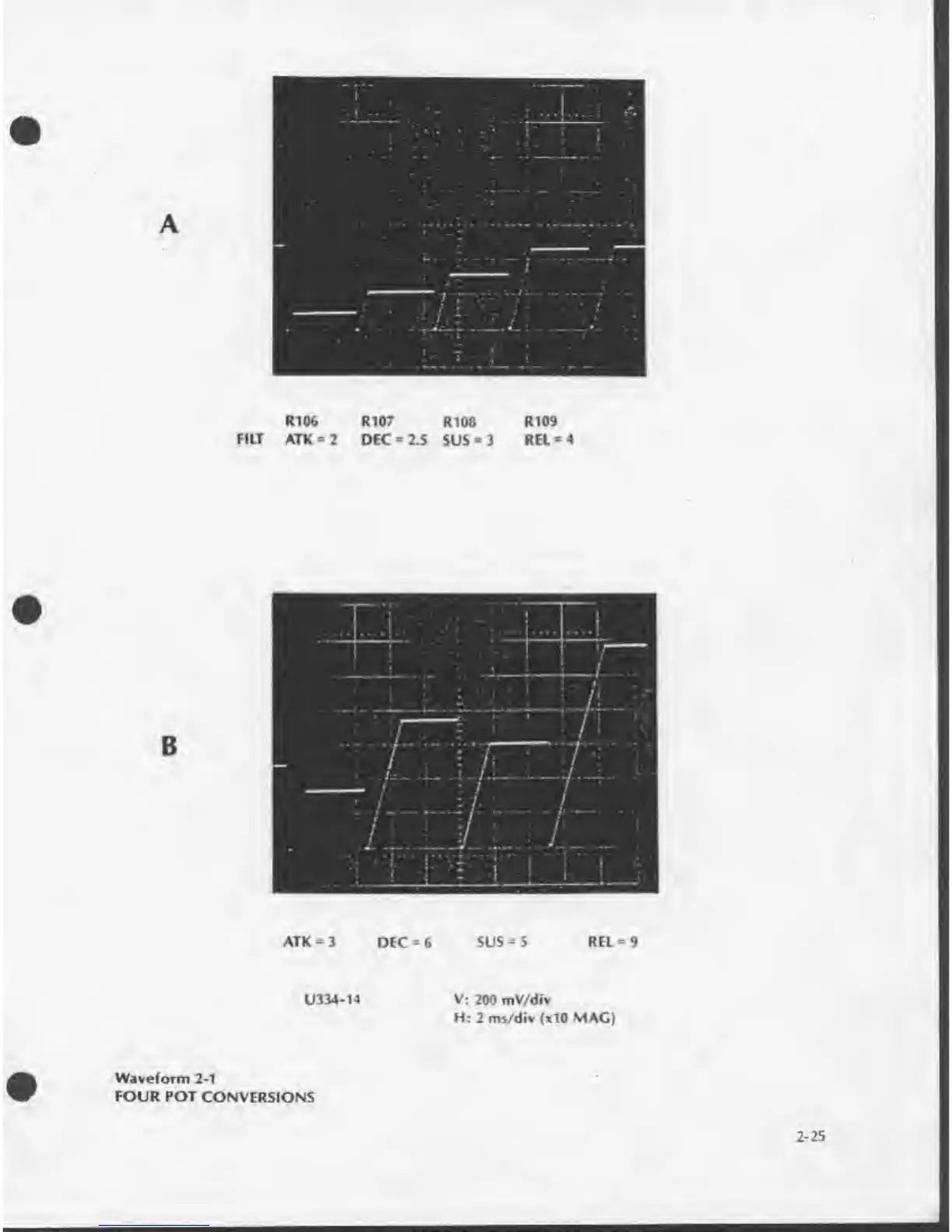

Waveform 2-1
FOUR POT CONVERSIONS
