SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Fulcrum
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 19
comercial@servicevision.es · www.servicevision.es
Both encoders give the same signal and have the same pinout and for troubleshooting they can be
swapped to check if the signal in the electronic box is received. The cables for the encoder also have
the same pinout. The differences are the gear pitch and the color code of the connector.
• Commercial reference for Tilt encoder belt: T2.5 600
• Commercial Reference for Pan encoder belt: T5 990

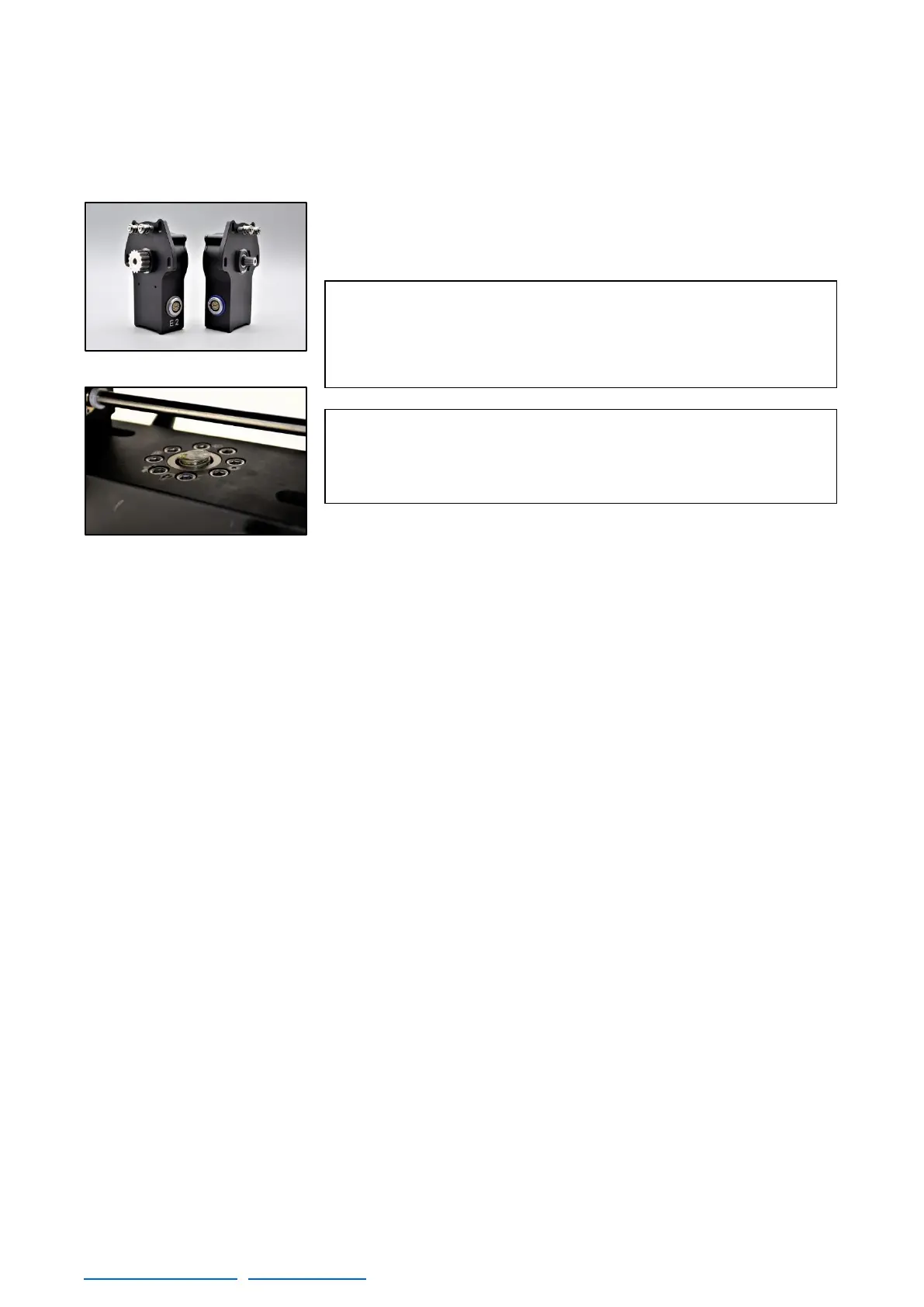

02.40 Screws to detach the fulcrum
02.39 Encoders from the crane
Note: Tilt encoder is needed to correct the level in the
leveling head, using the arc compensation feature and all the
functions that require knowledge of the tilt position of the
crane.
Note2: Pan encoder is needed to use the arc compensation
feature and all the functions that require knowledge of the
pan position of the crane.
