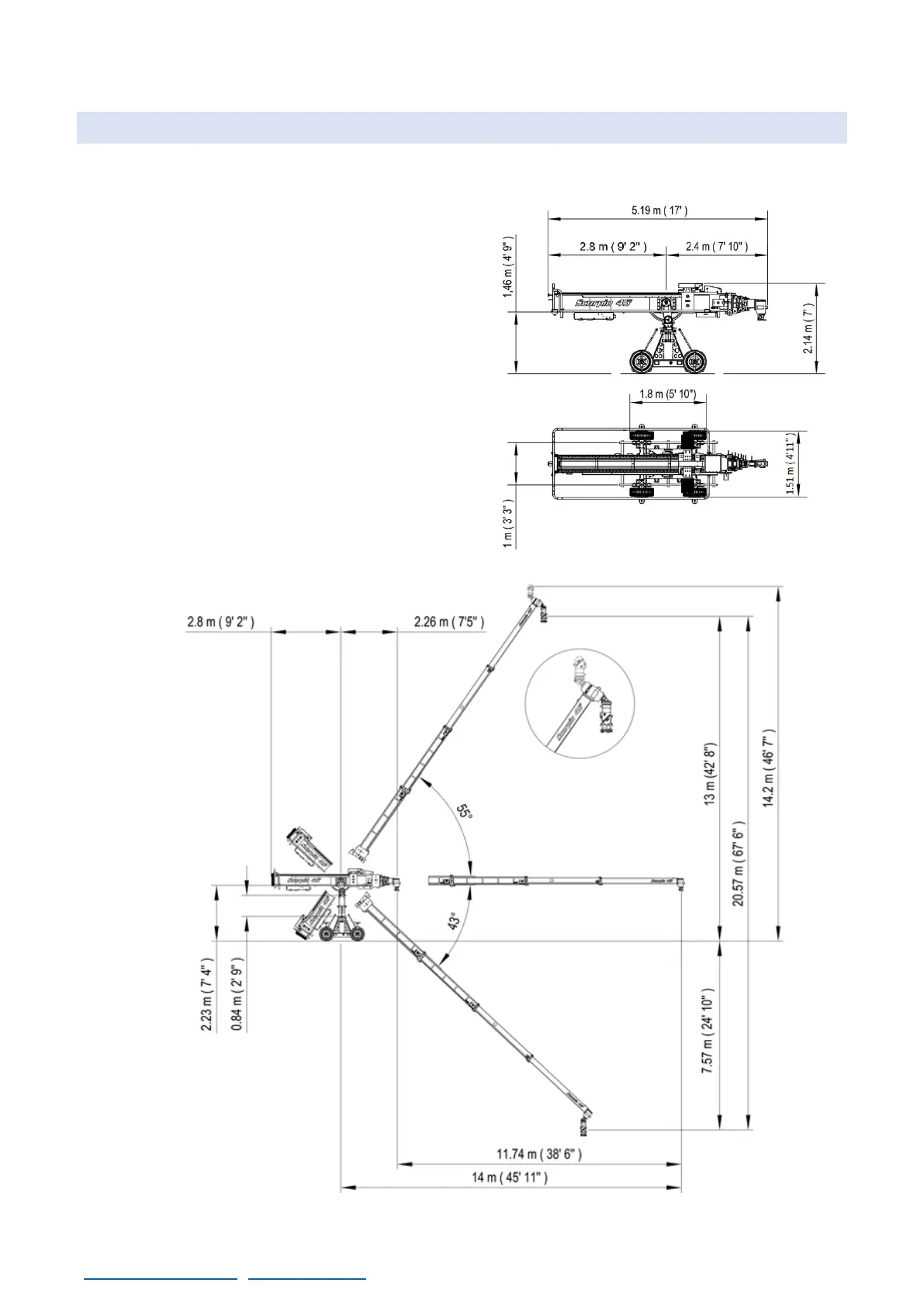

1.2 TECHNICAL SPECIFICATIONS 45’
Max length: 14m (45’11’’)
Min. length: 2,26m (7’5’’)
Back length of the arm: 2,8m (9’2’’)
Telescopic Range: 11,74m (38’6’’)
Max. optic height: 14,2m (46’7’’)
Telescopic column range: 0,84m (2’9’’)
Payload in Underslung: 70kg (154lbs)
Payload in Over slung: 35kg (77lbs)
Power requirements: AC 220 v/ 32 A
AC 110 v/ 32 A
Output power for head: DC 30 v/ 20 A
Output power for monitor: DC 12 v/ 3 A
Speed of the arm: 2,6 m/s
Weight of the crane empty: 1486kg. (3276lbs.)
Max. Weight when loaded: 2473,1kg. (5452lbs.)
Weight of the arm (empty): 691kg. (1523.3lbs.)
Weight of the dolly, column & fulcrum: 520kg. (1146lbs.)
