SCORPIO 38’ - 45’ - TECHNICAL INFORMATION - Technical specifications 38’
Version 1.02 May 27, 2022
8

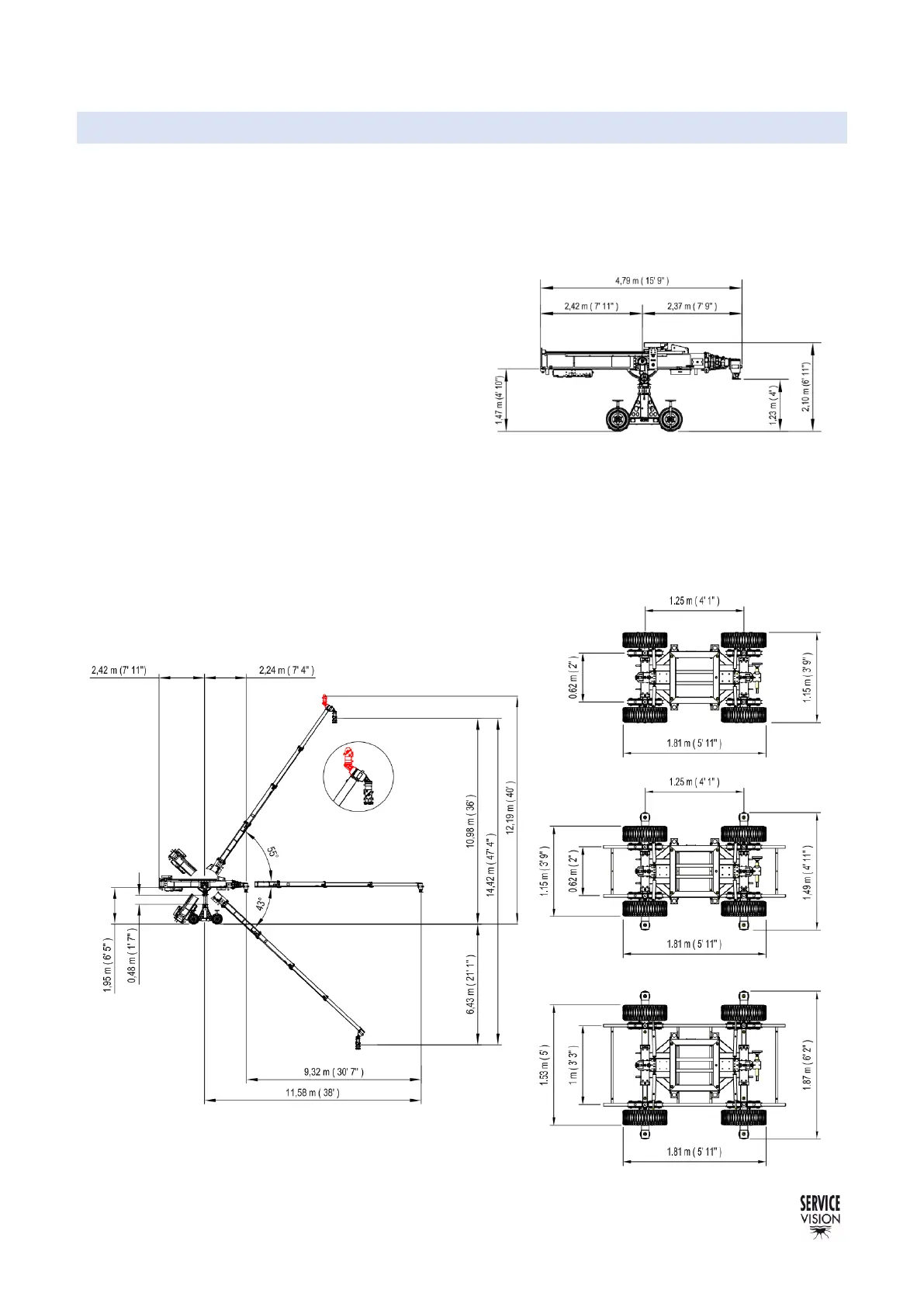

1.3 TECHNICAL SPECIFICATIONS 38’
Max length: 11,58m (38’)
Min. length: 2,24m (7’4’’)
Back length of the arm: 2,42m (7’11’’)
Telescopic Range: 9,32m (30’7’’)
Max. optic height: 12,19m (40’)
Telescopic column range: 0,48m (1’7’’)
Payload in Underslung: 70kg (154lbs)
Payload in Over slung: 35kg (77lbs)
Power requirements: AC 220 v/ 16 A
AC 110 v/ 16 A
Output power for head: DC 30 v/ 20 A
Output power for monitor: DC 12 v/ 3 A
Speed of the arm: 2,6 m/s
Weight of the crane empty: 1316 kg. (2900lbs.)
Max. Weight when loaded: 2123kg. (4680lbs.)
Weight of the arm (empty): 533kg. (1175lbs.)
Weight of the dolly, column & fulcrum: 503kg. (1109lbs.)
