SCORPIO 38’ - 45’ - CONTROL DISPLAY INFORMATION - Operation menu
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 59
comercial@servicevision.es · www.servicevision.es

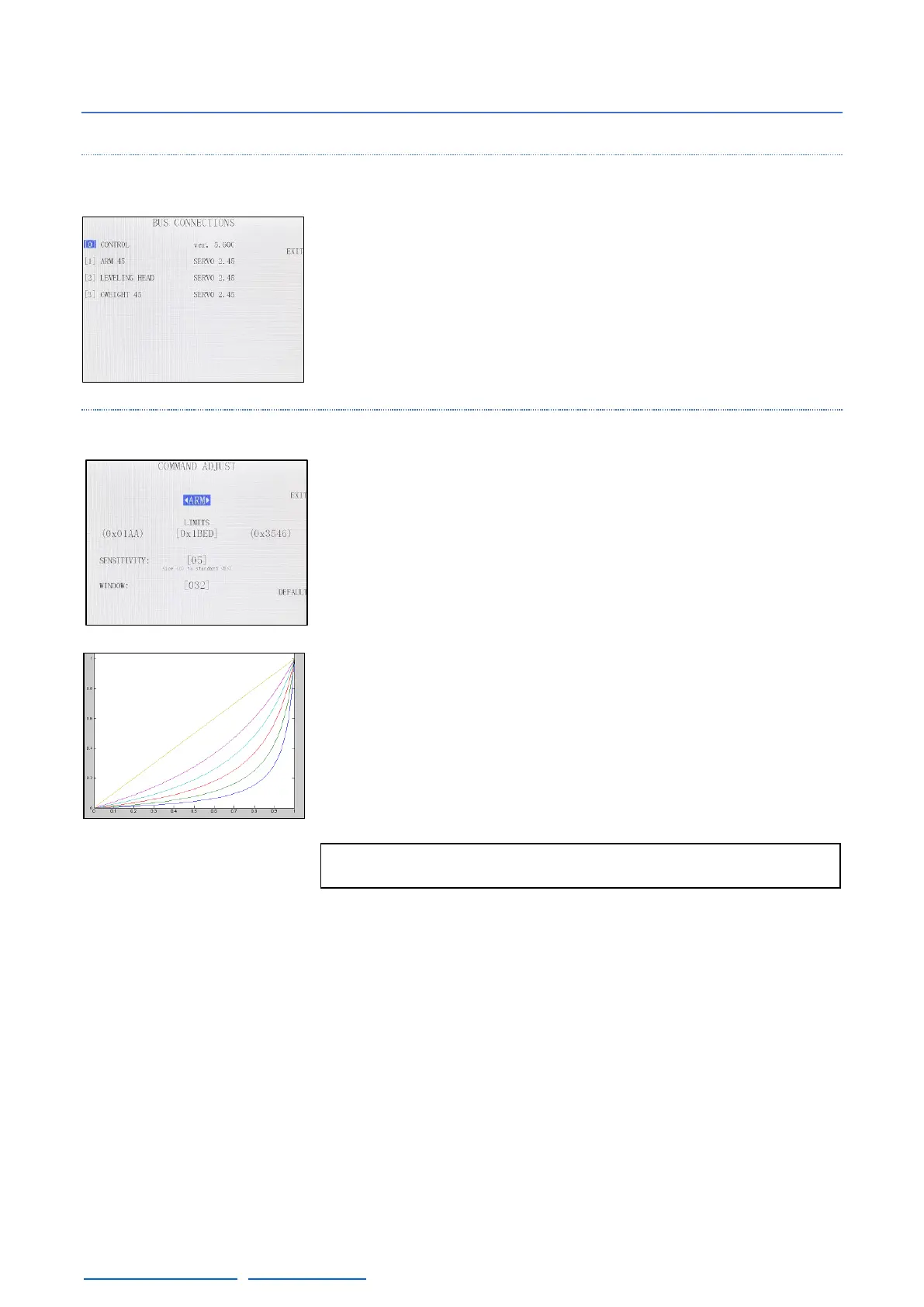

4.2.4 AUXILIARY
4.2.4.1 BUS CONNECTIONS
In this menu everything connected to the communication line will be
displayed. Also, it is possible to see the Software version for each axis
and, if the number of an axis is pressed, a screen will display more
information referred to that axis.
4.2.4.2 COMMAND ADJUST
It calibrates the cursor of the Hand Command. To calibrate it, press
the limits numbers in the middle of the screen (fig.04.38).
Move the cursor to both limits and then press OK. Now the range of
movement of the cursor is introduced to the system. This needs to be
done in case the crane moves faster in one direction than the other.
The SENSITIVITY parameter changes the relation between the
cursor from the Hand Command and the speed of the crane. It goes
from a lineal relation (5) to an exponential relation by reducing this
parameter until 0 (fig.42.42b). The more is reduced, the more
exponential the relation.
WINDOW is the range of the potentiometer where it can be moved
and the system will not make any movement on the crane.
