SCORPIO 38’ - 45’ - CONTROL DISPLAY INFORMATION - Main screen
Version 1.02 May 27, 2022
48
4.1 MAIN SCREEN

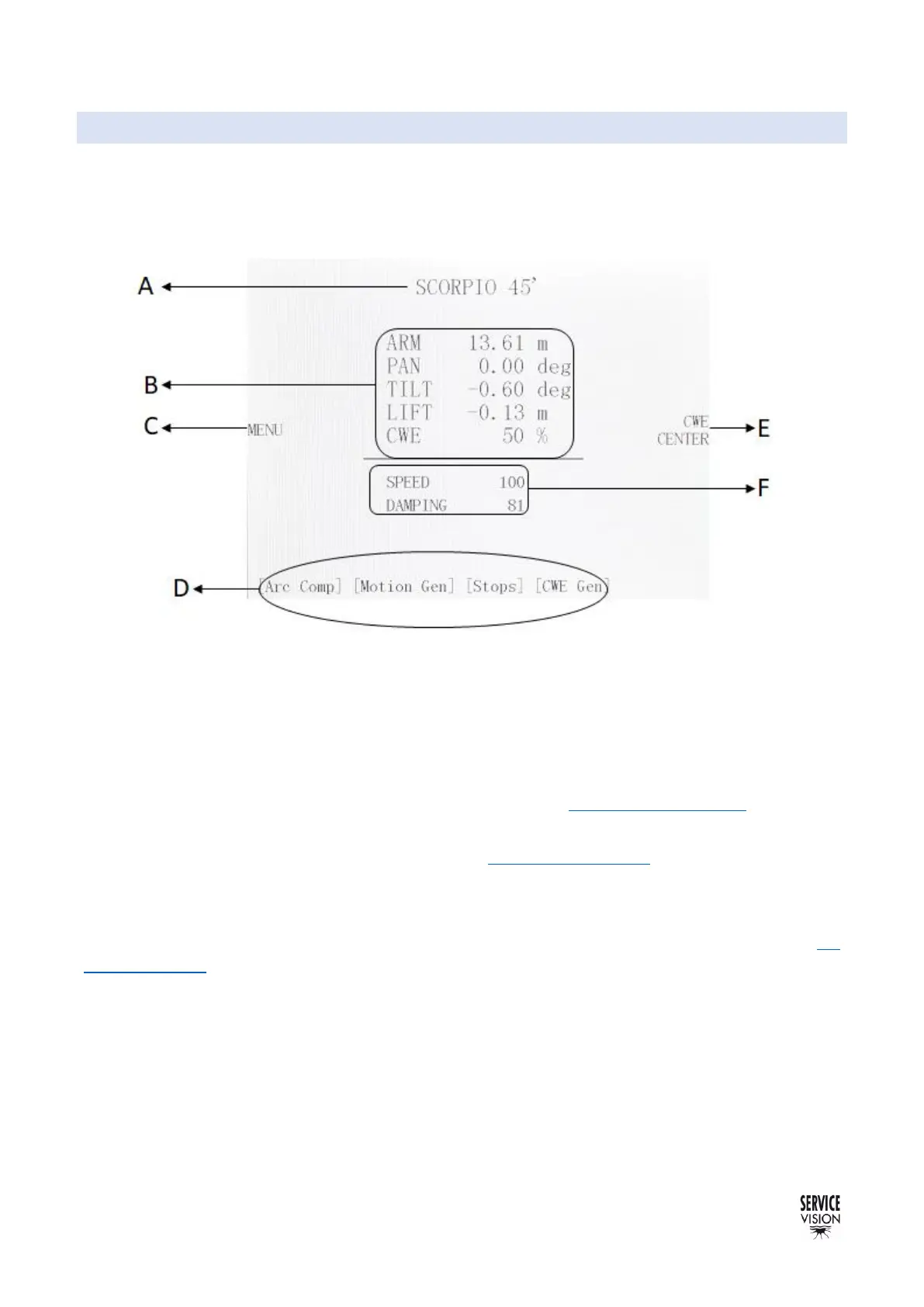

This is the Principal Menu. The different features buttons and system information appear in this
screen. The following system information appears:
A: The type on crane being used, SCORPIO 45´
B: This is the information of the position of the crane such as:
• The length of the crane arm in meters or feet (from the center of rotation).
• The PAN axis angle respect to where the Crane Arm was when the system was switched on
or from the Zero Position when a Pan Reset is done (see 4.2.3.4 Pan reset menu)
• The TILT axis angle respect to the horizon.
• The LIFT is the height of the camera lens (see 4.2.3.3 Lift calibration).
• The position of the Dynamic Counterweight System “CWE” in percentage.
C: Opens a dropdown tab with different functions and configurations for the head (chapter 4.2
Operation menu)
D: This are shortcuts to the main functions of the crane (see each menu independently). If any of
these functions is activated, they will be flashing green.
E: If pressed, Moves the Dynamic Counterweight to the 50% position.
F: Displays the Arm Movement Speed from 0% –100%. If the Speed setting is below 5, “Very Slow
Speed” is displayed. The Damping level goes from 0, very hard to 100, very soft. This is how soft or
hard the Crane Arm slows down when stopping. This setting affects the Programmable Limits, the
final Arm Limit ramps and the stop at any point the operator stops.
