SCORPIO 38’ - 45’ - PARTS AND COMPONENTS DESCRIPTION - Technical specifications 38’
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 9
comercial@servicevision.es · www.servicevision.es
2 PARTS AND COMPONENTS DESCRIPTION

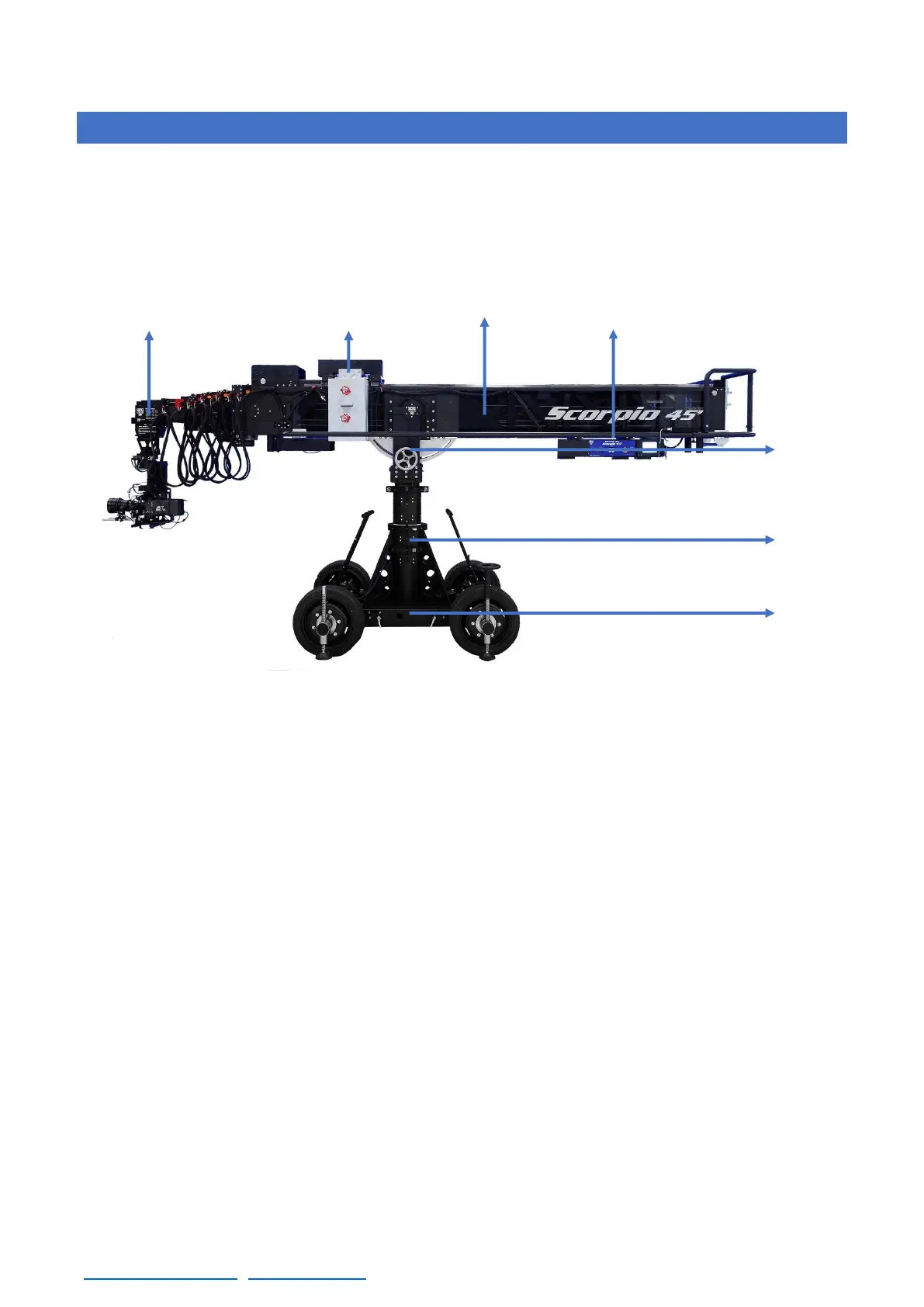

This is a general view of the components of the SCORPIO telescopic cranes:
The dolly is the part that locates the crane in the position where it will be operated, either with the
travelling wheels or the dolly wheels.
The Column holds the arm and can be extended or retracted automatically to the desired high of the
arm to perform different movements depending on the needs of the user.
The fulcrum is where the arm pivots in the pan and tilt. The information from the movement of the
arm is gathered from here.
The Telescopic arm can be extended or retracted in order to reach different positions for the remote
head. It has a counterweight support to keep it balanced in any position.
The Electronic box is the main brain of the crane. All the electronic components are located in the
Electronic box and the Leveling Head.
The Leveling Head holds the level automatically when the telescopic arm moves up and down.
Beside the crane, there are some accessories that are needed in order to operate the crane and to
do regular maintenance of the crane. In the following chapters there will be a brief description of every
component of the crane and the adjustments that can be done by the user.
