2.5 ELECTRONIC BOX
The electronic box is in the rear bottom part of the main section. It has all the electronic components
to control the position of the crane, move the motor located inside the arm and the motor for the
counterweights. It has a detachable display that could be mounted in the rear operation bars.

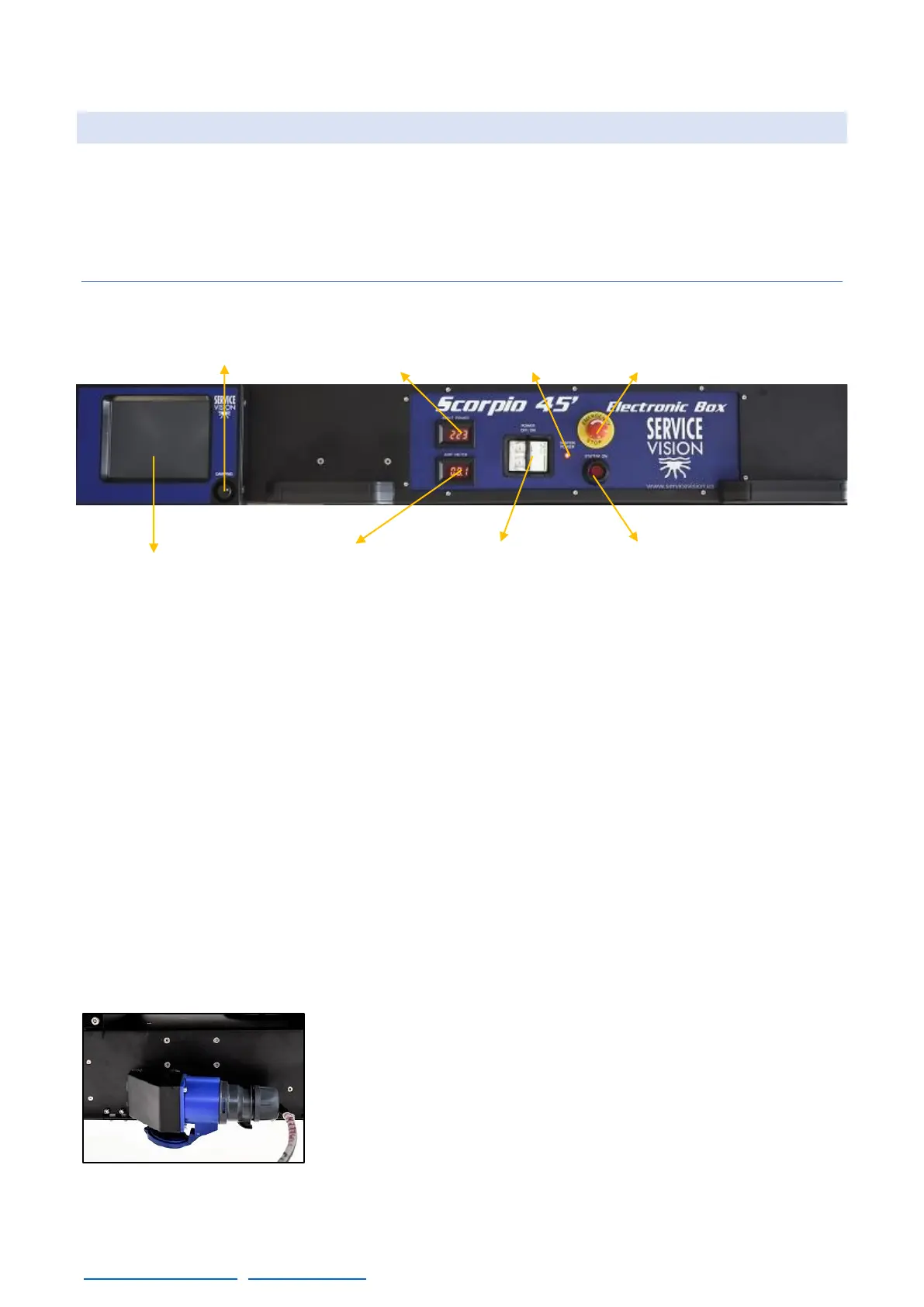

2.5.1 OUTSIDE DESCRIPTION OF THE ELECTRONIC BOX
AMMETER & VOLTIMETER: The information of the voltage arriving to the crane and the power
consumption of the system will be displayed here.
AC BREAKER: This breaker protects the crane against current peaks coming to the system. If it is
OFF the crane cannot be activated.
LED SYSTEM POWER: This LED lights only when the system has current and it is ready to be
started.
START BUTTON: This button is used to activate the crane. Certain conditions need to be achieved
in order to start the crane (Start system protection).
EMERGENCY STOP: This emergency stop button cuts the power from the system (Start system
protection).
PORTABLE DISPLAY: In this display the information of the system is showed, it can be attached in
the operation bars with a special bracket.
DAMPING KNOB: Potentiometer to adjust the stopping ramp of the arm when moving.
In the rear part of the electronic box is the Main AC connector which
provides power to all the components of the crane.
