SCORPIO 38’ - 45’ - SECURITIES & RECOMMENDATIONS - Protection systems
Version 1.02 May 27, 2022
SERVICEVISION BIS SL
Ríos Rosas, 20 · 08940 CORNELLA DE LLOBREGAT (Barcelona) Spain · Tel. 34 93 223 86 30 · Fax 34 93 223 86 31 65
comercial@servicevision.es · www.servicevision.es

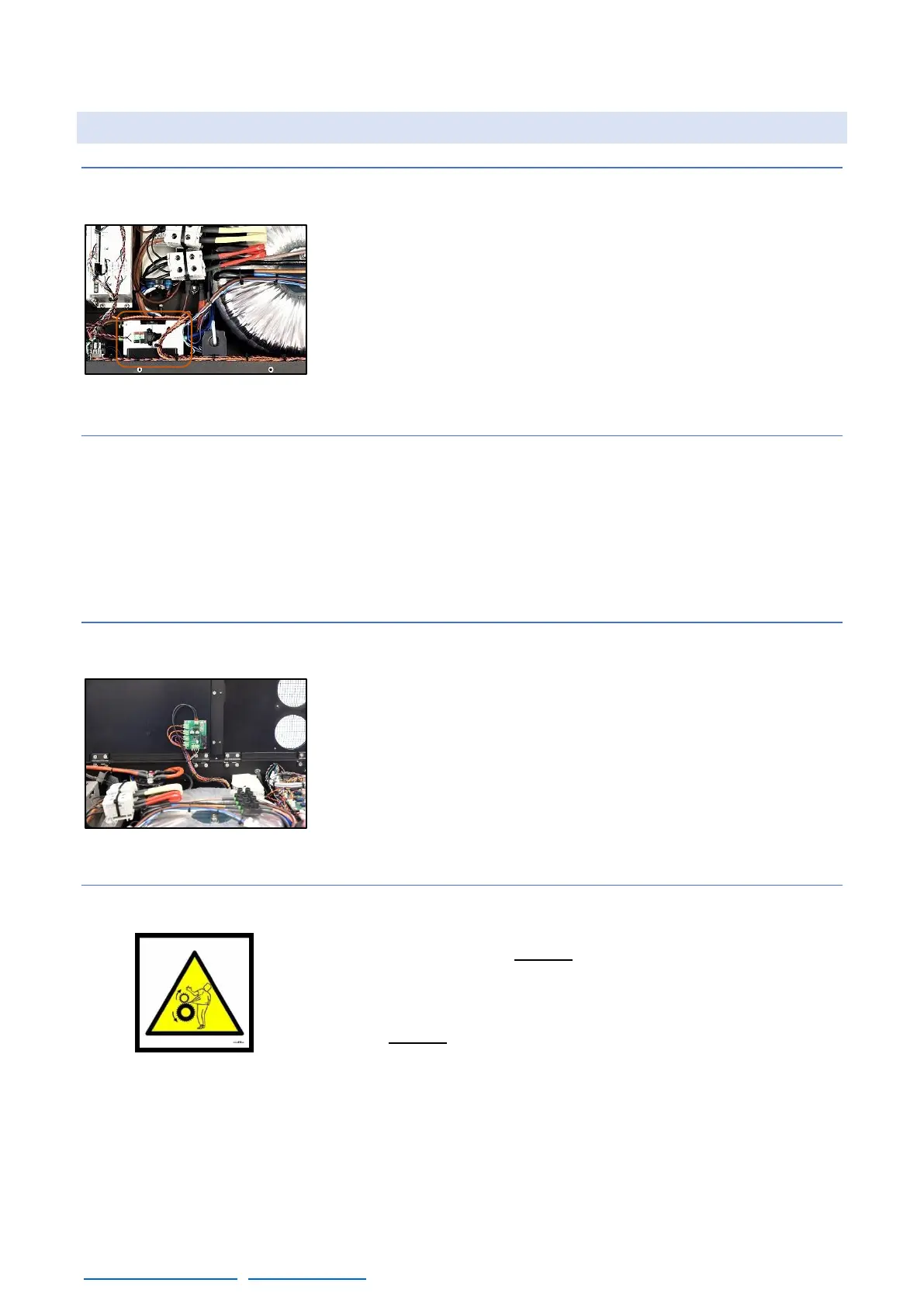

5.4 PROTECTION SYSTEMS
5.4.1 PROTECTION AGAINST OVERLOADS
The Scorpio cranes have a cutting element against electrical
overloads; the circuit breaker is located at the power input. It is a
protection against electrical overload (and shortcuts) 32 A caliber and
curve C.
5.4.2 ENCODER PROTECTION SYSTEM
In what entails to the arm movement, there is a protection system that will disconnect the motor if
the system detects a malfunction. In the event something is hit the system will display an alarm in the
main screen in case the system detects any inconsistent information regarding the position of the
crane.
5.4.3 SECURITY CIRCUIT BOARD
There is a board inside the electronic box that controls all the
components to start the crane such as: The start button, the red
emergency button, and the hand command. If any of the three
components is not ready the crane will not be able to start.
5.4.4 PROTECTION BARS AND COVERS
The protection bars mark the area of movement of the Telescopic
counterweights, therefore NEVER get in between the protection bars
and the crane, there is a high risk of squashing if the crane moves.
The covers protect any moving component inside the telescopic arm
therefore NEVER can be removed while the crane is moving, there is
a high risk of squashing if the crane moves.
