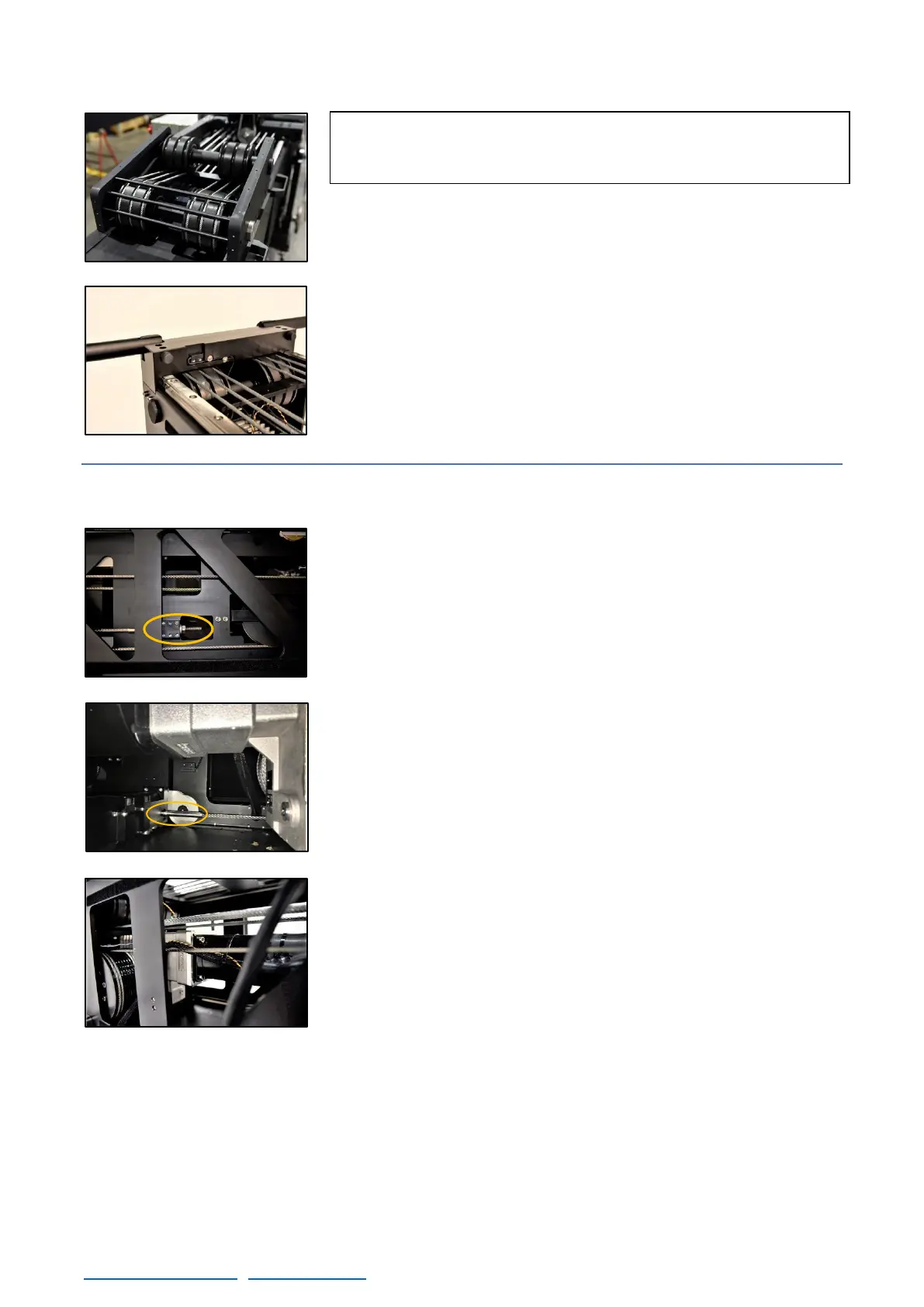

To grease the cables of the counterweights, open the cover of the
front pulley system for the CW and apply motorcycles chain lubricant
with a spray while the crane is moving.
To lubricate the back cables, spray the lubricant in the rear pulley
while the crane is moving. Not too much lubricant needs to be applied,
just enough to prevent too much friction between the pulleys and the
cables.
6.2.7 FIRST SECTION CABLES
The first section cables need to be tight if there is too much bouncing
on them when telescoping in and out. To do it, remove the locknut
using the fix wrench provided with crane and tight them from the part
of the first section using a vice grip to hold the cable and a wrench to
move the nut. Apply tension on both sides equally in order to keep
both cables working together.
In case the other end is fully tight, repeat the same process to the
retracting cable. Apply tension on both sides equally in order to keep
both cables working together.
To lubricate the first section cables, spray motorcycles lubricant in
the drums while the crane is moving. Not too much lubricant needs to
be applied, just enough to prevent too much friction between the
pulleys and the cables.
