SESOTEC PRIMUS+ - Electrical Connections

5. Commissioning
18

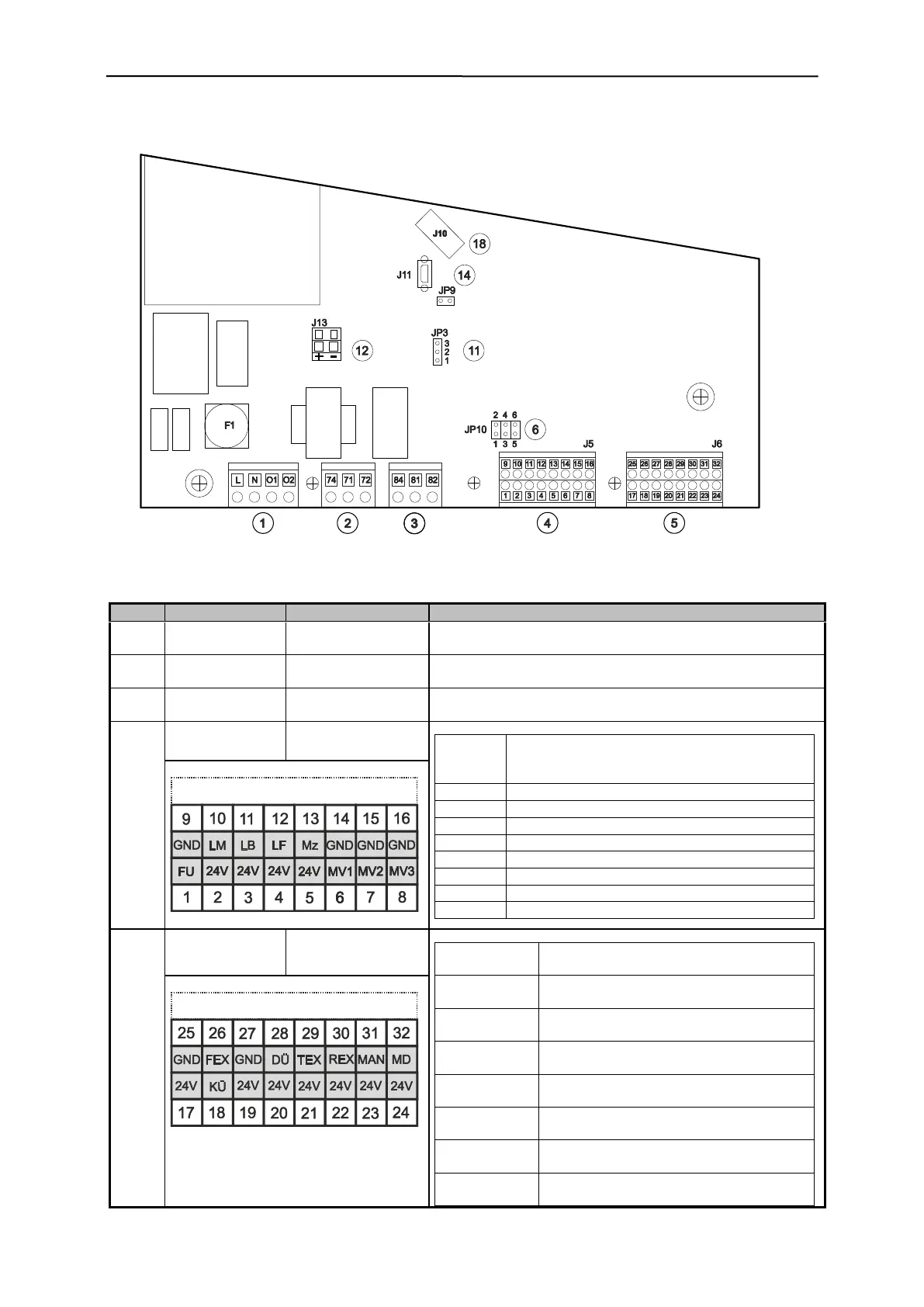

5.2.1 PRIMUS+ / IO electronics board (control electronics board)
5.2.2 Electrical connections
Pos.
Connection
Type of connection
Function
(1)
"Mains/Option"
Connector for mains
supply
L/N: Electronics power supply
O1/O2: Optional 24V module power supply connector
(2)
"Relay metal"
Voltage free
relay contact
Normal operation: Contacts 71 and 72 closed
On metal detected Contacts 71 and 74 closed
(3)
"Relay fault"
Voltage free
relay contact
Normal operation: Contacts 81 and 84 closed
In case of fault: Contacts 81 and 82 closed
(4)
"Outputs"
Switching outputs
24V
J5
Switching functions
MV = magnetic valve connection
( =24V to GND or  = 0V to 24V)
1 – 9
, FU: Not assigned
2 – 10
, LM: Lamp metal
3 – 11
, LB: Lamp operation
4 – 12
, LF: Lamp fault
5 – 13
, Mz: Ext. metal counter
6 – 14
 or , MV1, (after system setup)
7 – 15
 or , MV2, (after system setup)
8 – 16
 or , MV3, (after system setup)
(5)
"Inputs"
Switching inputs 24V
J6
Switching functions
24V, NPN or PNP switching
17 – 18 – 25
KÜ: Flap monitoring
PNP or NPN (dep. on application)
19 – 26 – 27
FEX: Fault external
PNP or NPN (dep. on application)
20 – 28
DÜ: Compressed-air monitoring
NPN
21 – 29
TEX: Test external
NPN
22 – 30
REX: Reset external
NPN
23 – 31
MAN: Manual separation
NPN
24 – 32
MD: Deactivate metal detection
NPN
J5J5
J6
