6. Menu / Operation PRIMUS+
42

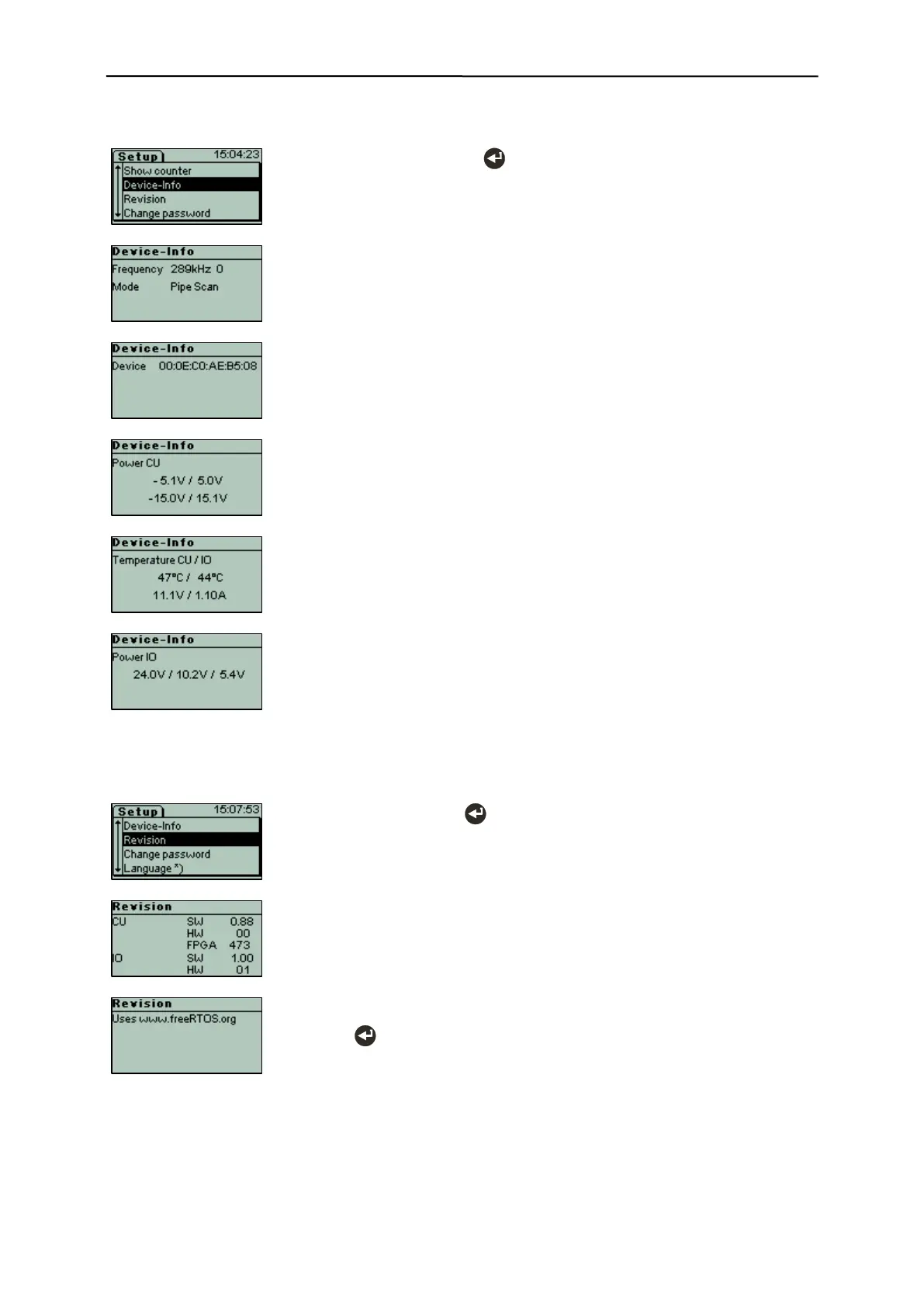

6.3.12.4 Device-Info
- Select "Device-Info" with .
The display shows the currently set detection frequency and the currently
set operating mode.
- Pipe Scan
- RAPID
- Vacuum/pressure conveying
- PROTECTOR
- Belt conveyor
- C-SCAN DLS
Serial number of the CU electronics board
Voltage values of the CU electronics board
Nominal values
- 5V, +/- 0.1V
+5V, +/- 0.1V
-15V, +/- 0.3V
+5V, +/- 0.3V
Temperature values of CU and IO electronics boards
Nominal < 80° C
Nominal < 80° C
Voltage values of the coil connection
Nominal >11V
Nominal < 1.2A
Voltage values of the IO electronics board
Nominal values
24V, +/- 0.4V
+10V, +/- 0.4V
5.5V +/- 0.2V
6.3.12.5 Revision
- Select "Revision" with .
The display shows the revision numbers of the installed hardware and
software components of CU electronics board and IO electronics board.
Info about the operating system that is used (licence).
- Press to exit the menu.
