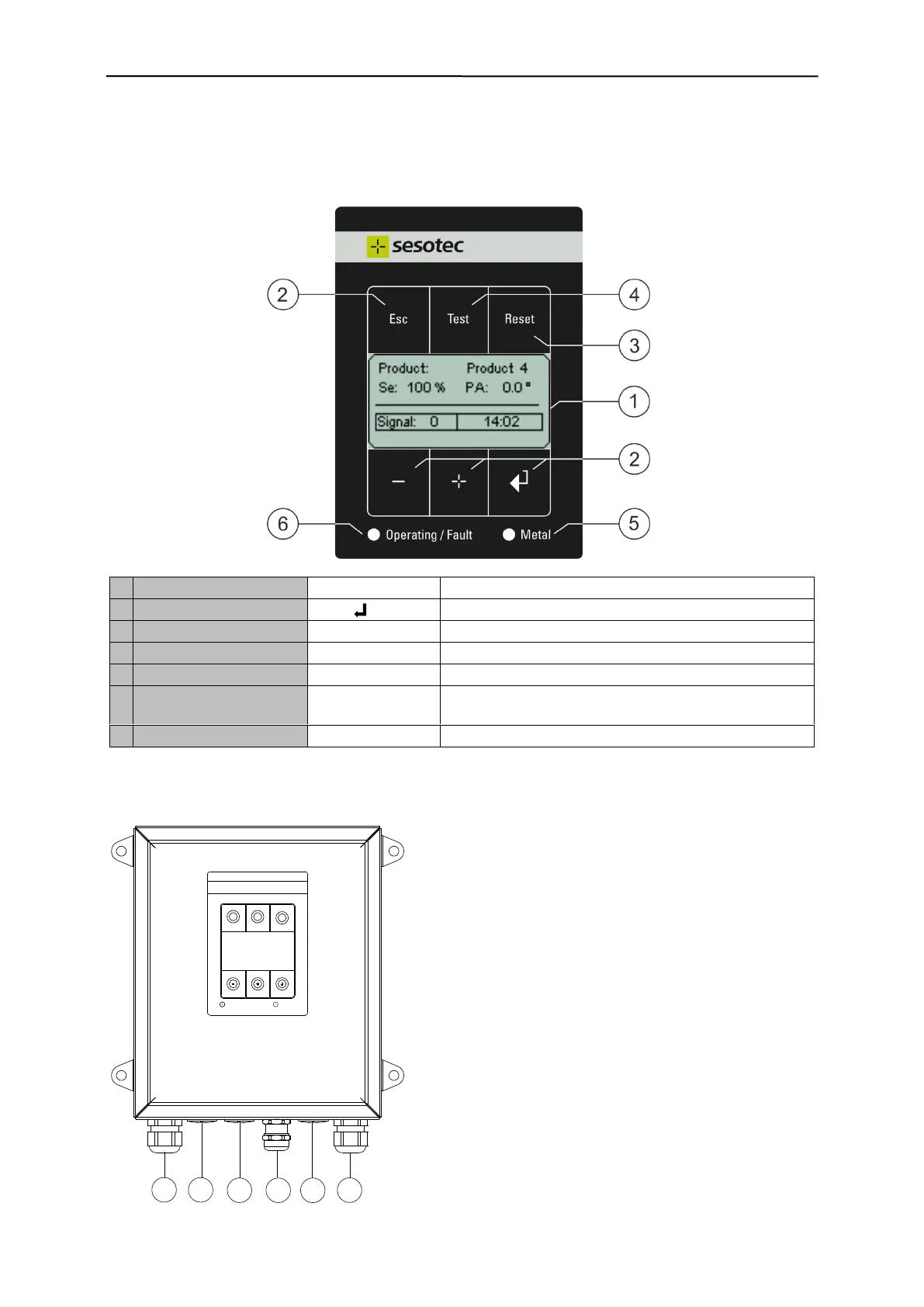

2.2 Functional and control elements
2.2.1 Operating module with LCD graphic display
1
Graphic display
LCD module
Display of operating and input masks
2
Operator keys
+ , - , , Esc
For operation and machine setting
3
Function key
Reset
Reset to restore the unit after metal or fault signal
4
Function key
Test
Test function for metal detectors
5
Metal LED
Metal
Lights red when metal detected
6
Operating / Fault LED
Operating
Lights green in normal operating mode, metal detec-
tion active
6
Operating / Fault LED
Fault
Lights red in case of fault and error
2.2.2 Cable glands
11
98 10 127
O perating/Fault Metal
Esc Tes t
Reset
(7) Cable gland for the mains cable
(8), (9), (11) Cable gland for option
(10) Cable gland for free use
(12) Cable gland for connecting the detector coil
