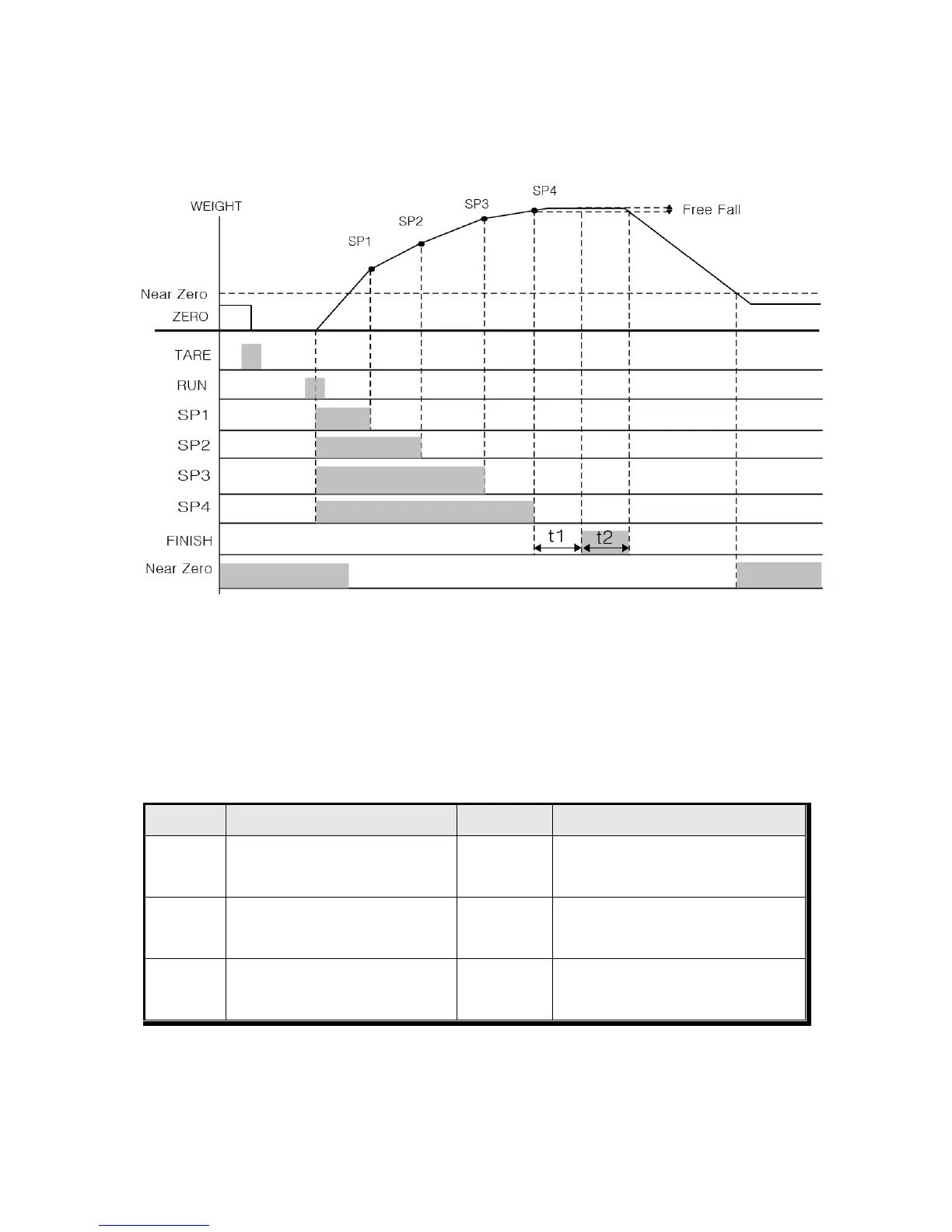

◆ Weighing Mode 2. Packer Mode (F21-02 setting)
1. Set value setting
Sp1(Bulk), Sp2(Bulk + Drib), Sp3(Bulk + Drib + Fall), Sp4(FINAL)
Setting conditions : (Sp4>Sp3>Sp2>Sp1)
※ If the setting conditions are not satisfied, “E” symbol displayed and you can process the weighing.
2. Finish relay output delay time(t1) setting : F-Function 22
3. Finish relay output “ON” time(t2) setting : F-Function 23
4. Relay Output
Relay
Contents
Relay
Contents
SP 1
RUN input : ON
Current weight≥SP1(OFF)
SP4
RUN input : ON
Current weight≥SP4(OFF)
SP 2
RUN input : ON
Current weight≥SP2(OFF)
FINISH
After “t1” time,
“On” during “t2” time
SP3
RUN input : ON
Current weight≥SP3(OFF)
NEAR
ZERO
Within “EMPTY” range (ON)
5. “Drib” (F26-01 setting)
