6-4. Analog Output Interface (Option 02 : 0~10V Output)
This Option card converts weight value to Analog Voltage output(0~10V) and transfers to external
devices(Recorder, P.L.C), controlled by voltage output.
6-4-1. Specification
① Output Voltage : 0~10V DC output
② Accuracy : More than 1/1,000

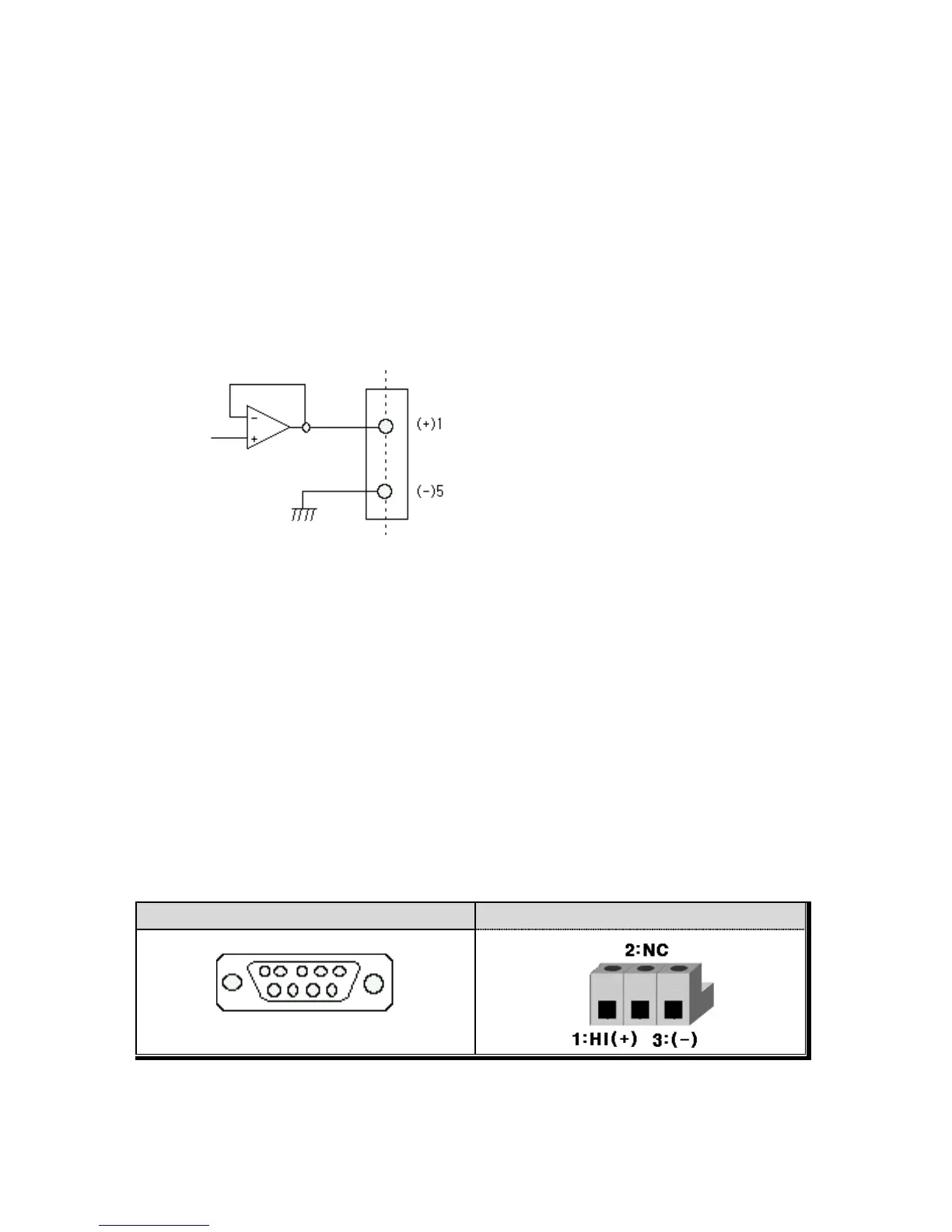

6-4-2. Circuit
※ This Voltage output is proportioned on weight calibration and outputs 0~10V.
6-4-3. Output Adjustment
① This output is adjusted as when the weight is “Zero”, output is 0V and When the weight is “Full capacity”,
output is 10V.
② If you need additional adjustment, please adjust with “VR1(Zero)”, “VR2(Span) on the Analog Output PCB.
※ Remark
This Analog option card converts Displayed weight value(Micro-process data) to analog value on D/A
Converter(Digital to Analog converter)
This D/A Converter has Max 1/4,000 accuracy, so this output is not suitable for high accuracy application, like
more than 1/3,000.
6-4-4. Connecter (9pin, “D-type” female)
To Next Page
