Digital Weighing Indicator

SI 4100

- 53 -

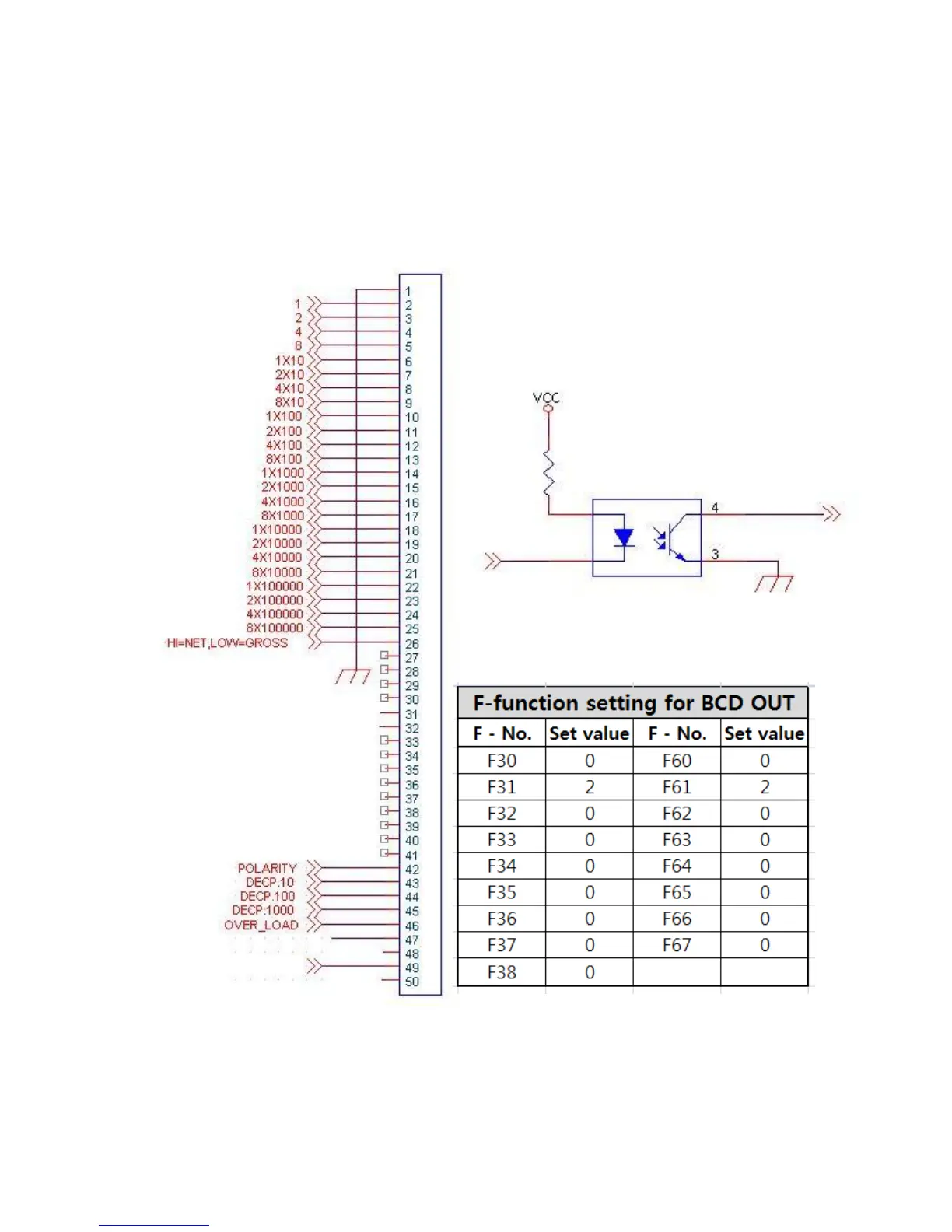

6-8. BCD Output Interface( Option 06)

This “BCD interface” option card can be applied on PLC (Programmable Logic Controller), or Score Board

applications.

Each Input circuit is isolated with “Photo-Coupler”, from external devices electrically.
