Sewhacnm SI 4100 - BCD Input Interface; BCD Input Settings (F57-00, F57-01)

Digital Weighing Indicator
SI 4100
- 52 -
6-7. BCD Input ( Option 05) – Input for Part No. selection.
This “BCD interface” option card can be applied on PLC (Programmable Logic Controller), or Score Board
applications. (NPN TYPE)
Each Input circuit is isolated with “Photo-Coupler”, from external devices electrically.

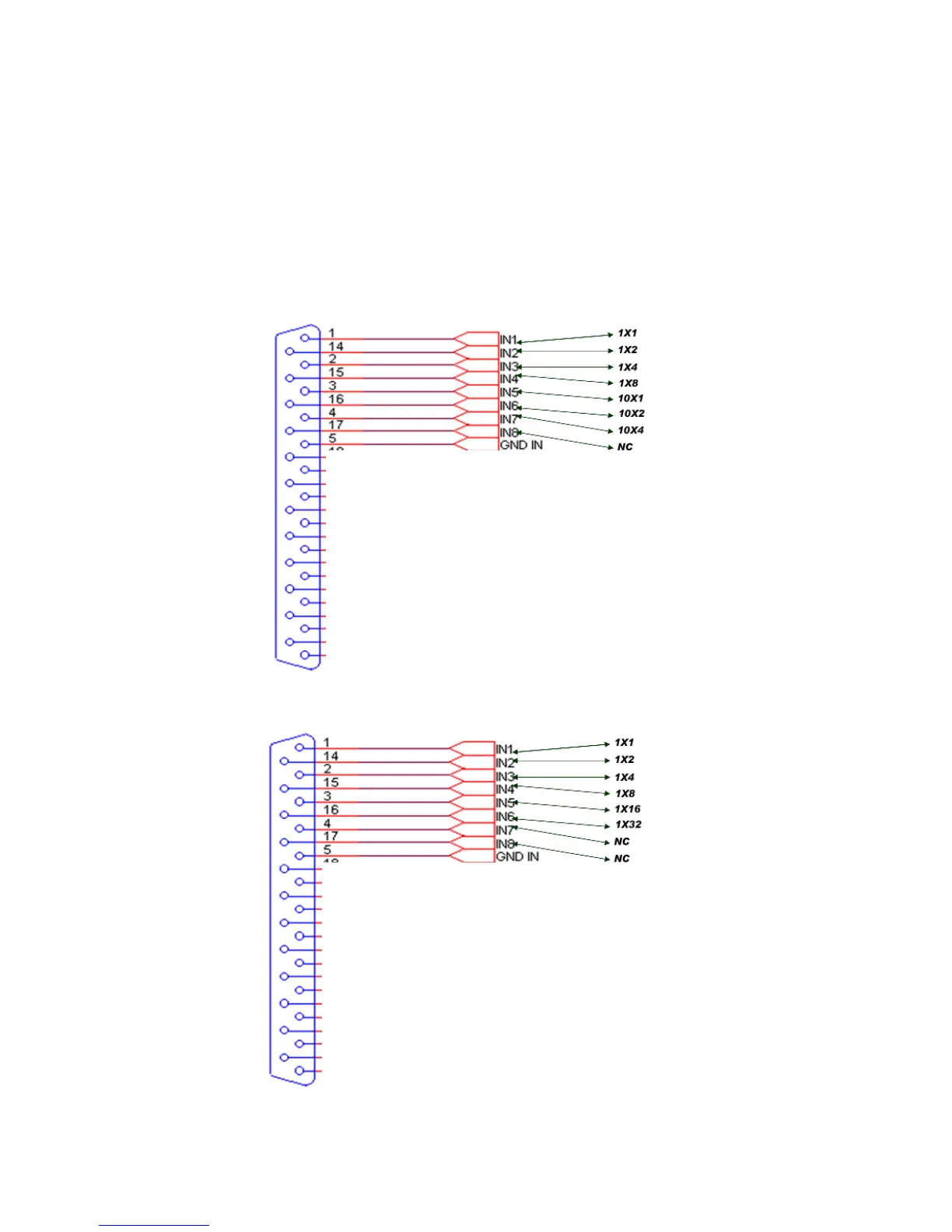

F57-00 setting
F57-01 setting
