Flaps

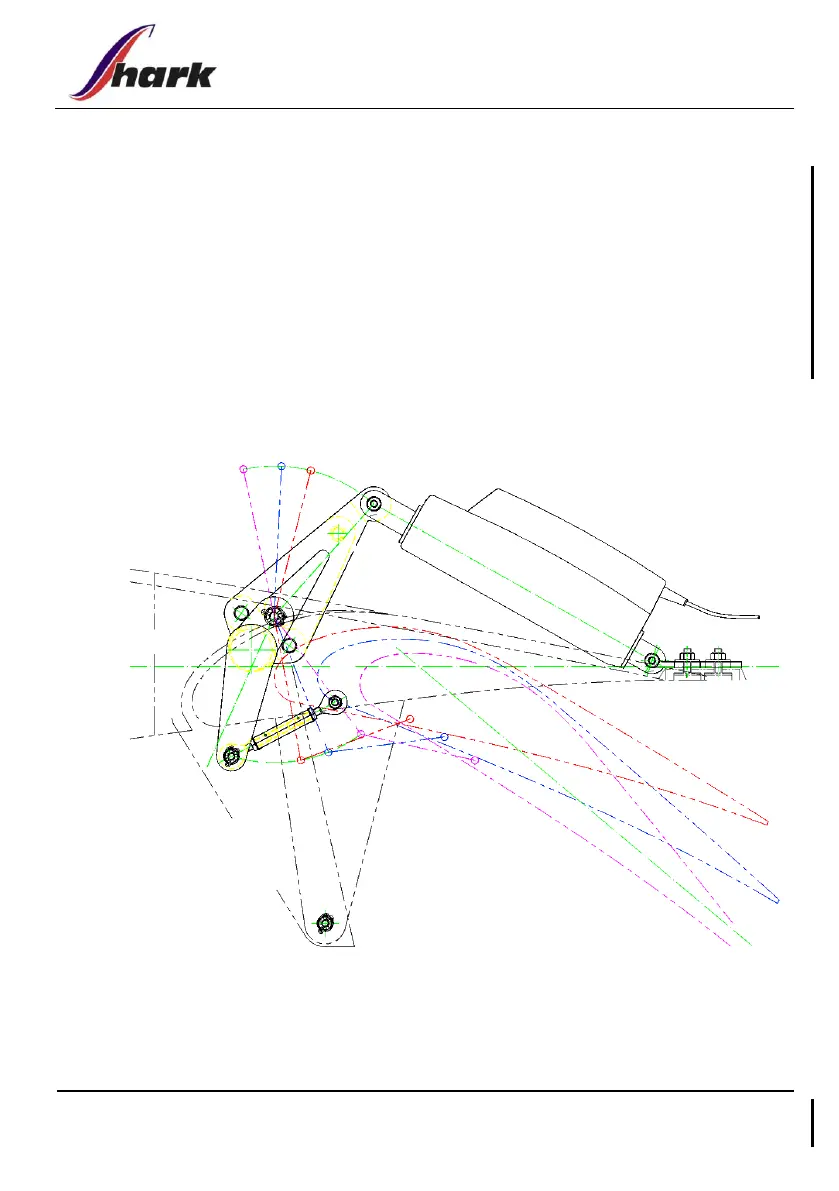

The flaps are controlled by a LINAK LA12 electric actuator placed
under the left armrest of the rear seat. A short rod at the root rib
controls the flaps through the torsion tube with the lever placed on
the first flap hinge. The system is controlled by an Arduino
electronic module which has a control and indication panel on the
front instrument panel. As an option, an additional panel can be
placed on the rear instrument panel.
