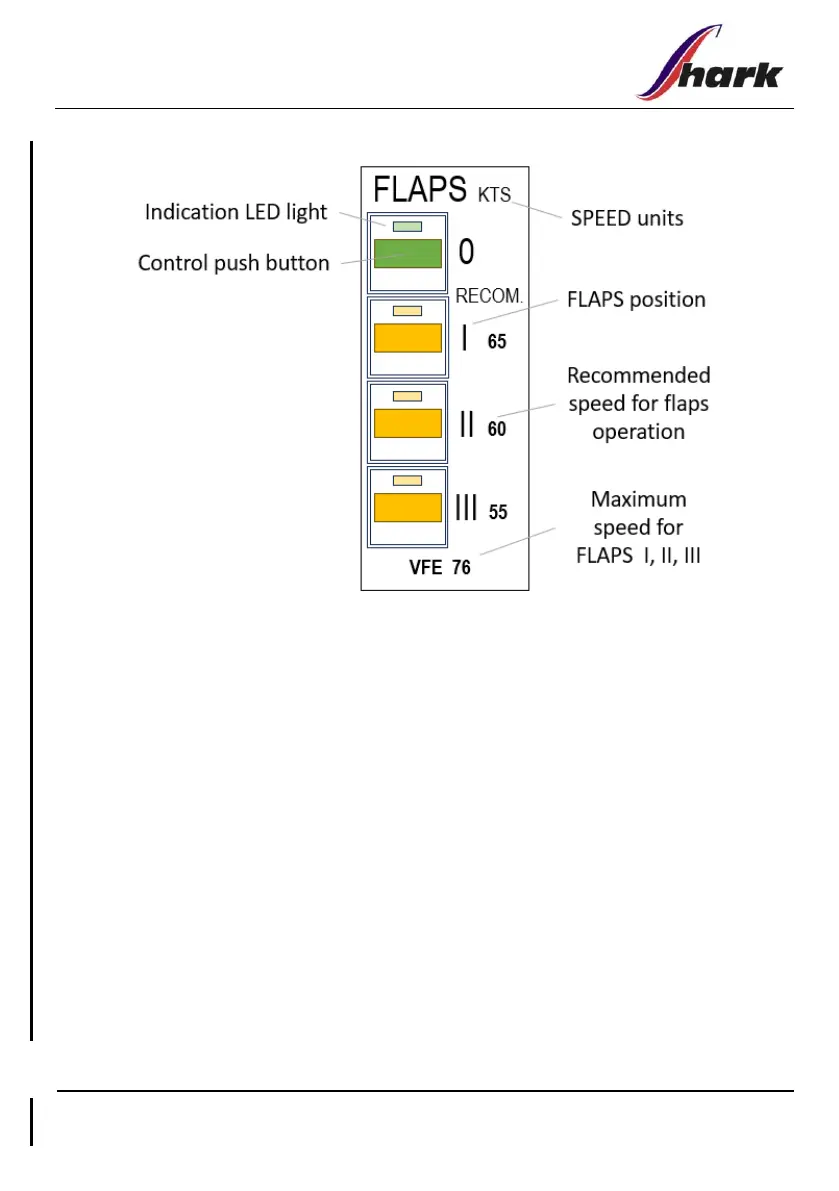

Flaps control panel
Flaps system start up
When the Flaps Module is turned on, the FLAPS 0 LED button will
flash rapidly at 5hz, and the LED of the last known flapsposition will
illuminate. The FLAPS0 LED will continue to flash until it is pressed,
the flaps will then retract to the FLAPS 0 position and the FLAPS 0
LED will illuminate.
Flaps functions and indication
When any of the FLAPS position control buttons are pressed, the
corresponding LED will flash until the flaps reach the selected
position. While in transit the LED corresponding to the current
position of the flaps will remain illuminated. If front and rear
control systems are installed, the latest command takes
precedence.
