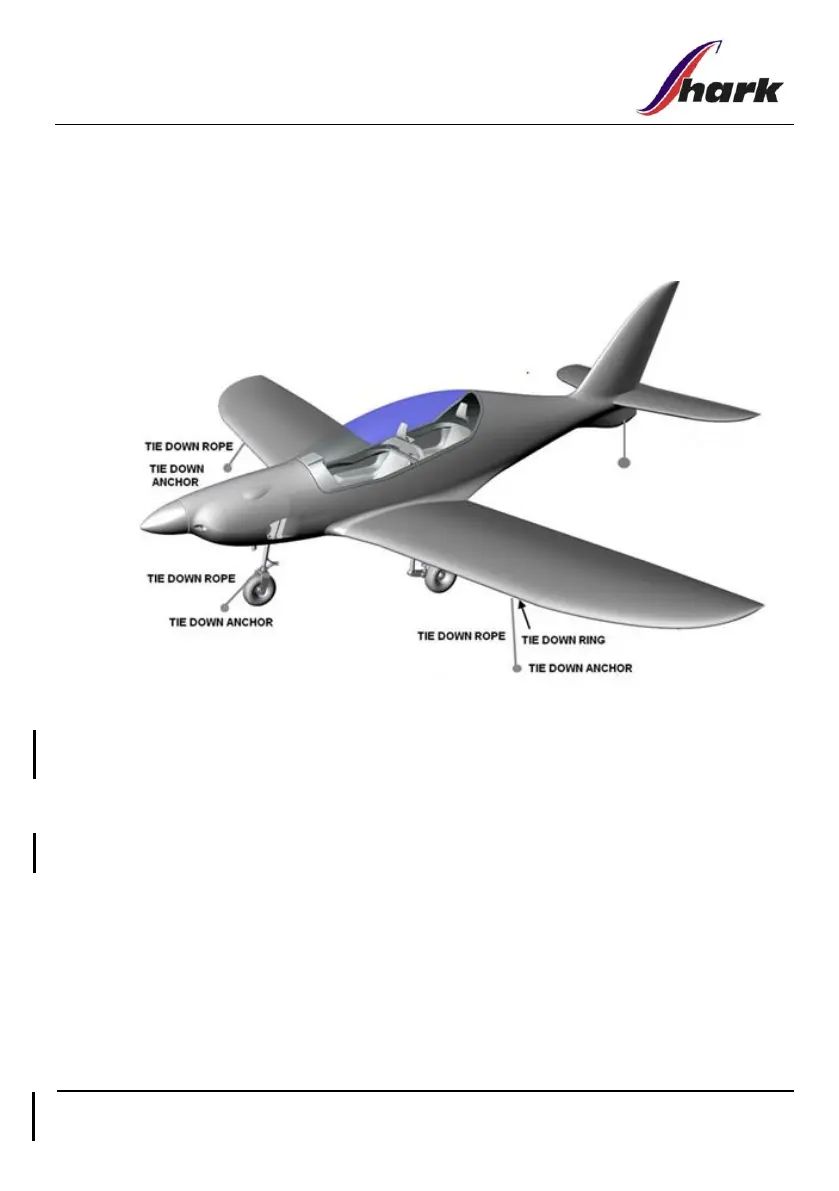

8.3.3 Mooring
• Consoles for M8 eyebolts used for mooring are fitted on the
wing spars close to the inspection rings. Other mooring points
are the front leg and the hole in the bottom fin.
8.4 Hangaring, ground handling
Only move the airplane during hangaring, parking, etc. only when it
is empty.
It is permitted to attach a steering rod to the front wheel axle.
The following list and sketch show the position of reinforced areas
to prevent surface dimples caused by ground handling.
