Sharp AL-1215 Service Manual

AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 8

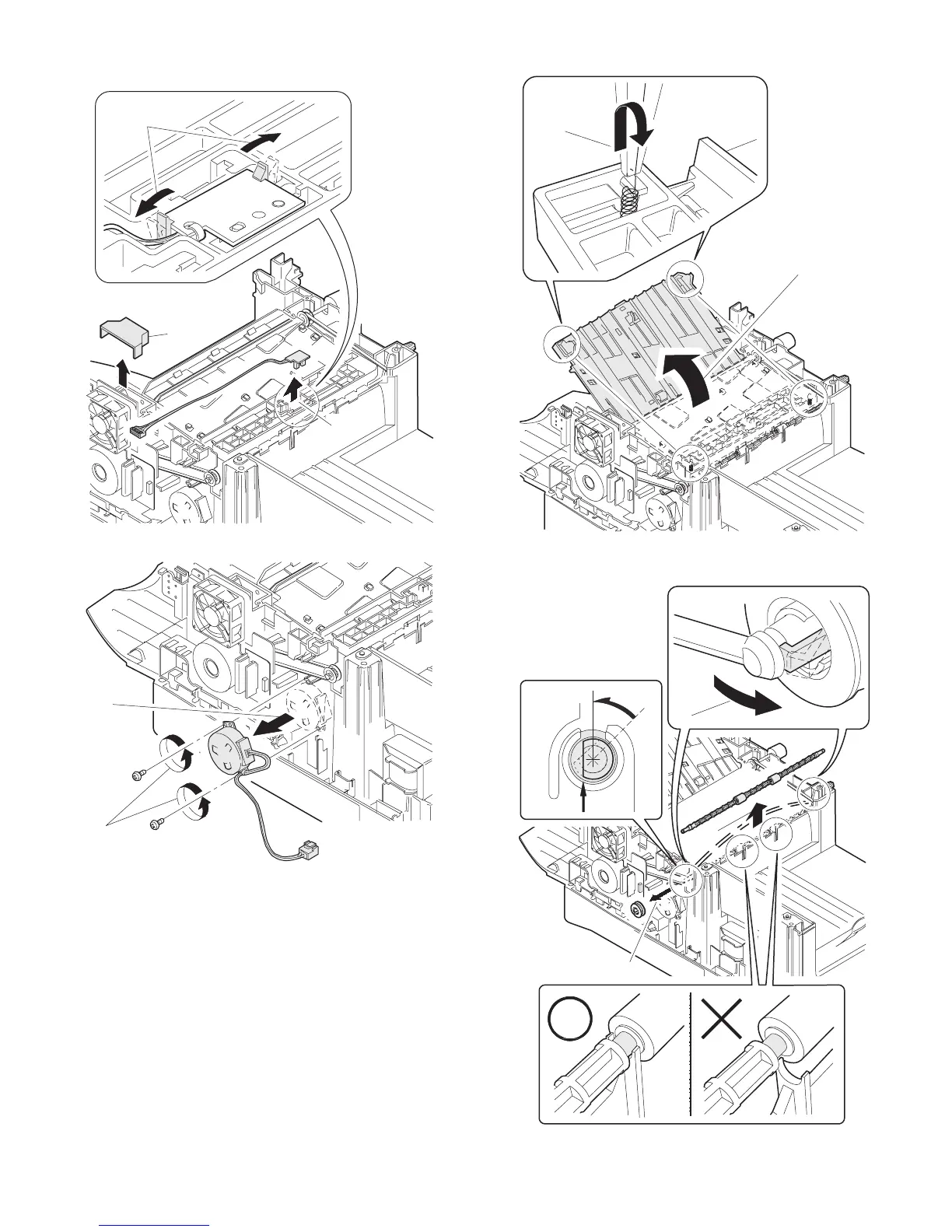

5) Remove the PWB insulation mylar and remove the paper transport
detection sensor (PPD2).
6) Remove two screws and remove the toner motor.
7) Remove two springs and open the intermediate frame unit.
8) Remove the pulleys on the both sides and remove the paper exit
roller.
2)
1)
3)
1)
2)
1)
2)
4)
2)
1)
3)
