AL-1551CS DISASSEMBLY AND ASSEMBLY 8 - 9

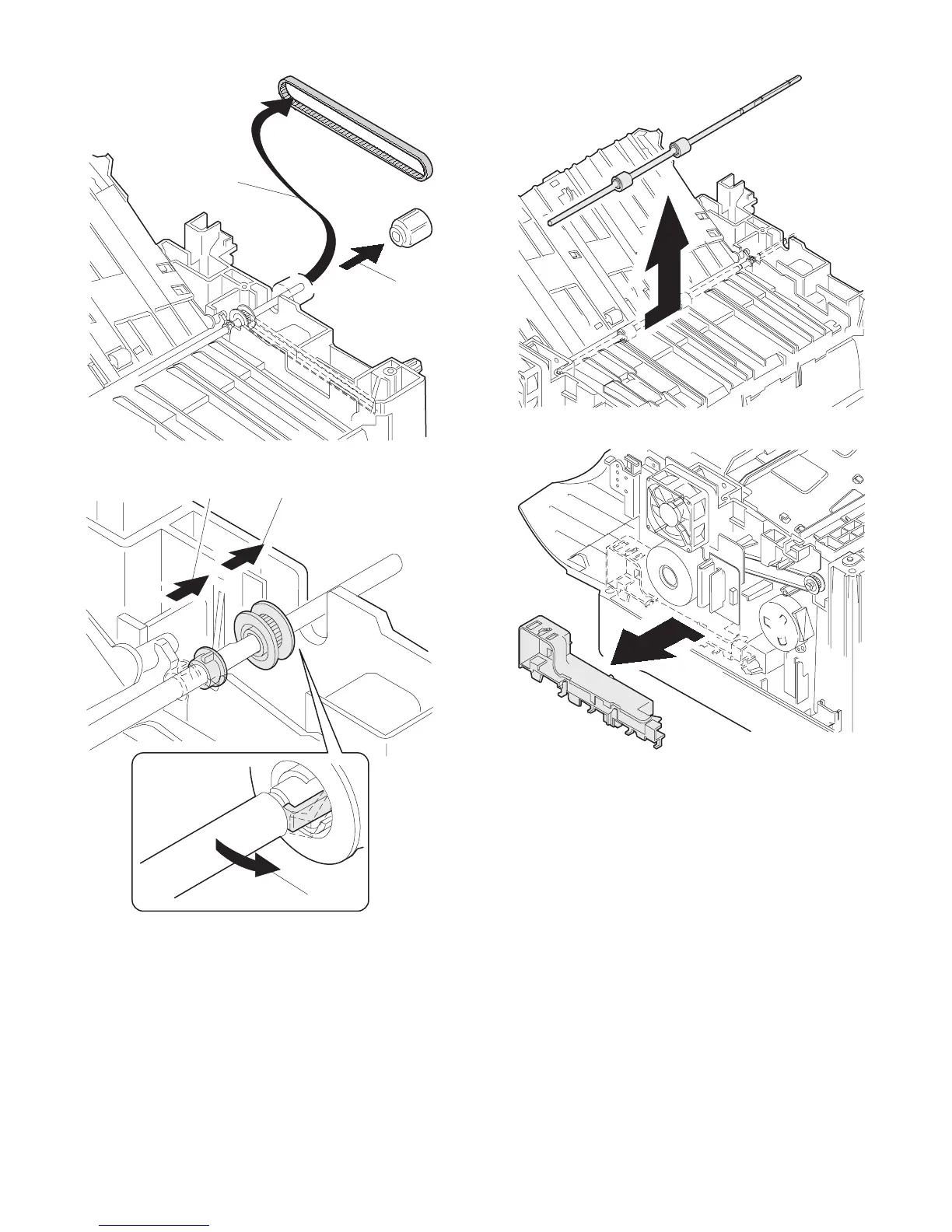

9) Pull out the paper exit roller knob and remove the belt.
10) Release the belt pulley (a) lock and remove the belt pulley bearing.
11) Remove the paper exit roller.
12) Remove the harness guide.
1)
2)
2)
3)
1)
